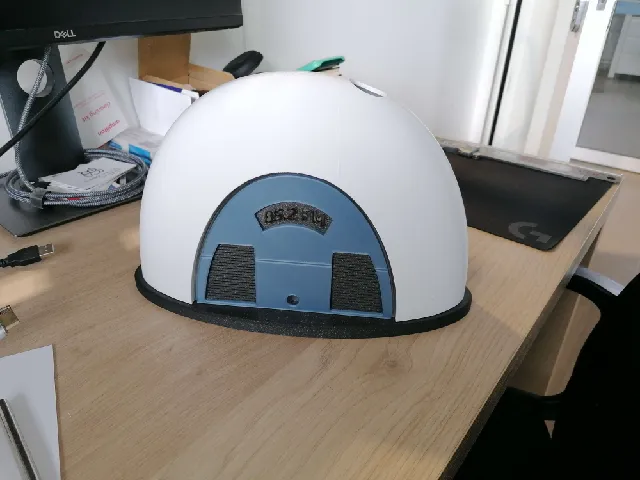

Remix of Aibot's Portal Radio on MMF, with some quality of life features and changes. I added a rear hole for a usb-c port in the base, and some more space under the ark led for cable management. The antenna holder has a bottom to it now, making it way easier to secure the rod inside. And the knob actually works, both turning on the radio and being the volume. This was more made for show than to be functional and sound good, so don't expect audiophile quality from it.

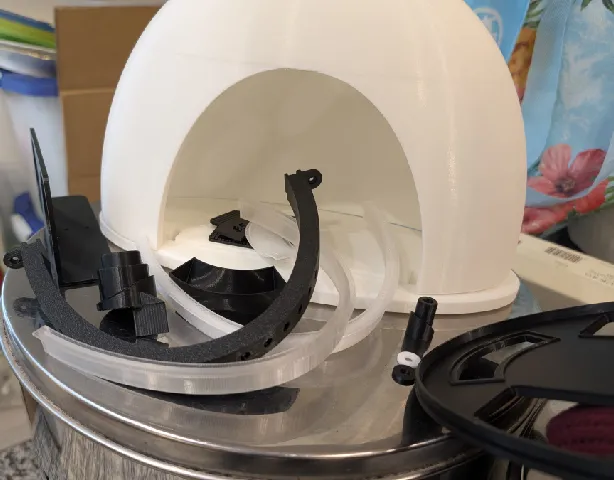

Body, base, front panel, and electronics mounts were printed in PLA

Antenna rod mount, knob assembly, grills, and front screen were resin printed, with the ark and screen diffuser being printed in clear resin.

Shell is mounted with small bolts through the bottom with a nut that rests inside the top shell. Heat set inserts can be used for mounting the electronic mounts and ark/front more securely.

Feel free to use a proper battery setup, I just had to finish this before a certain date so I just jankily slapped an existing power bank inside and am pulling power from a micro-usb.

I wired the power switch on the amp to also be the power switch for everything, so when you turn the knob to its \u201con\u201d state, the whole radio turns on.

Parts I used

Power Switch/Amp - https://www.amazon.com/dp/B0CFY1BPMS?ref=ppx_yo2ov_dt_b_fed_asin_title

Speakers - https://www.amazon.com/dp/B0826Y1BMY?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Battery - https://www.amazon.com/dp/B08QHG7BTB?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Antenna (happens to be the same length as in-game) - https://www.amazon.com/dp/B08L7WWHHK?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

12v step up - https://www.amazon.com/dp/B0BG465ZRK?ref=ppx_yo2ov_dt_b_fed_asin_title

Bluetooth module - https://www.amazon.com/dp/B08D94PGCG?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

rear usb-c port - https://www.amazon.com/dp/B08BYQKJL6?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

micro usb 5v output - https://www.amazon.com/gp/product/B07B5ZDLJY/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Led strips (I cut the strips out of the silicone housing they were in to fit in the ark) - https://www.adafruit.com/product/3861

Led strip other option - https://www.ebay.com/itm/274148208415?var=574271725717

","category":{"id":"81","path":[{"id":"76","name":"Costumes & Accessories","nameEn":"Costumes & Accessories","description":"Mask and play! Create your outfit and complete it with suitable props. Be brave and dazzle your friends. The devil is in the detail, so don't underestimate it.","__typename":"CategoryType"},{"id":"81","name":"Props","nameEn":"Props","description":"As a wizard, you need a wand and as a Star Trek character, you need a combadge. These little props are what makes your costume really convincing!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-09-20T18:43:21.999250+00:00","firstPublish":"2024-09-20T18:38:10.280870+00:00","datePublished":"2024-09-20T18:43:21.933600+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Remixed Portal Radio with functional knob as both a power switch and volume with usb-c charging","likesCount":61,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":144,"displayCount":1673,"filesCount":18,"privateCollectionsCount":31,"publicCollectionsCount":23,"pdfFilePath":"media/prints/1013456/pdfs/1013456-portal-radio-bluetooth-speaker-34016f9c-bd44-4b21-82b0-a30aa8906393.pdf","commentCount":4,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3568020","filePath":"media/prints/1013456/images/7702469_a6012cf4-9a00-488d-b805-56a7601e16ee_a1b2fdf2-53c1-4870-aea9-b30be69d9376/20240313_225143.jpg","rotation":0,"imageHash":"BSgGDIIGiYV1iHiDa3hPKbhAcw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},"images":[{"id":"3568020","filePath":"media/prints/1013456/images/7702469_a6012cf4-9a00-488d-b805-56a7601e16ee_a1b2fdf2-53c1-4870-aea9-b30be69d9376/20240313_225143.jpg","rotation":0,"imageHash":"BSgGDIIGiYV1iHiDa3hPKbhAcw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"3568030","filePath":"media/prints/1013456/images/7702478_09e3955b-c76e-4f73-9c36-cd48f4a8abdd_9cf2293b-9864-4708-99f3-c29d43626a2b/20240314_131803.jpg","rotation":0,"imageHash":"XRgKDAJY9ndol3aoJGcbfJDBBw==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568025","filePath":"media/prints/1013456/images/7702477_e4a5c4f7-2760-44eb-bc9f-fd151db143ef_6d368b69-a7a0-4a67-b759-33a7586c02ac/20240329_205752.jpg","rotation":0,"imageHash":"ExgKBAJ5V4oHiHeHdndgwOrzaQ==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568028","filePath":"media/prints/1013456/images/7702476_c1a7071c-3371-4ee3-8846-d960bc68f03d_eddb76d2-c95a-4546-985c-f6b3cef89766/20240313_220503.jpg","rotation":0,"imageHash":"2gcODII1aGmKZnaQeYb6cvUfpw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"3568022","filePath":"media/prints/1013456/images/7702471_8cf14f7c-6b83-4a18-9220-d6e6b5e602a2_067e03ae-da35-44d3-86ca-0629f3cc30a2/20240313_225322.jpg","rotation":0,"imageHash":"ChgGHARmeIgHiXmHd2lvaveFVQ==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568044","filePath":"media/prints/1013456/images/7702507_e43b7413-09a9-40b1-8b37-fca034e5cce3_d2c7a658-c45a-4f75-83b5-83748b25eeaf/20240918_205604.jpg","rotation":0,"imageHash":"2jgKJIQKeHlxdnmGipZ4cGUHFg==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"3568045","filePath":"media/prints/1013456/images/7702508_620fed31-e2e4-462f-9037-f40049baf022_24ac30cd-f813-4c20-a13b-28d57aa58ba8/20240918_205625.jpg","rotation":0,"imageHash":"VjgGJITSezl7l5aPVPitoKgKig==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"3568026","filePath":"media/prints/1013456/images/7702472_dc762554-2387-46cd-ba80-80df1a01b2ac_6e48c78f-f261-45e8-9ab9-40e10c590242/20240311_204038.jpg","rotation":0,"imageHash":"zQcKDIIIabiNhHl4h3b6ja9c9g==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"3568021","filePath":"media/prints/1013456/images/7702470_2ee27af2-2206-49be-99c5-68543ffefa04_75fd1268-2052-49e9-802f-5e527b479cac/20230905_202643.jpg","rotation":0,"imageHash":"HAgSDIJUWHl/dXh1d3YEzwlSWA==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"3568024","filePath":"media/prints/1013456/images/7702475_5cdf672f-e08d-4c47-91b4-f3b4d5c8269d_a04bfac7-7374-4589-9f32-0888317f942b/20240313_212849.jpg","rotation":0,"imageHash":"HggODAKk9XdXZ4eGaHf5hGsMuA==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568023","filePath":"media/prints/1013456/images/7702473_92900803-fb95-4ba8-a931-632c259b9098_2dc42103-b07b-4239-a0ae-f673c3aed63d/20240312_210737.jpg","rotation":0,"imageHash":"EQgGDAR+21cJe1q6xok9b9x2+A==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568027","filePath":"media/prints/1013456/images/7702474_13bacecb-c141-404d-b7bf-0a45c66f810a_d2372ac9-e24e-4120-b98d-9deecd3c3fb1/20240312_210742.jpg","rotation":0,"imageHash":"FPgJFAZo15oHenSnlUeJb5ir9w==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568029","filePath":"media/prints/1013456/images/7702479_334c6ead-a98c-4cb5-9a3e-6263c31c315f_3f984fc0-a7f1-4a47-ac31-6d1ebaf552cc/20240327_065202.jpg","rotation":0,"imageHash":"WigOLAao93e3iIWWh2h2j1b2Sg==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568031","filePath":"media/prints/1013456/images/7702480_f05c28ba-1fa8-4048-8bef-f4623c6905b0_17589079-2302-4b05-974f-e59eacbae062/20240312_210940.jpg","rotation":0,"imageHash":"lTgGDAJXqIUHpnmXaXcAXSdQJQ==","imageWidth":2252,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3568032","filePath":"media/prints/1013456/images/7702481_7a8a532c-6fce-4522-91b7-903141e2154e_91b6e408-390a-42e4-8a97-5ed129b846e5/20240313_212106.jpg","rotation":0,"imageHash":"mxgKDIT1VIaneYRohZWoYGBUBg==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"}],"imagesCount":15,"tags":[{"name":"functional","id":"126","__typename":"TagType"},{"name":"led","id":"242","__typename":"TagType"},{"name":"replica","id":"352","__typename":"TagType"},{"name":"prop","id":"353","__typename":"TagType"},{"name":"portal","id":"358","__typename":"TagType"},{"name":"speaker","id":"2442","__typename":"TagType"},{"name":"bluetooth","id":"2443","__typename":"TagType"},{"name":"radio","id":"3230","__typename":"TagType"},{"name":"aperture","id":"3911","__typename":"TagType"},{"name":"aperturescience","id":"13333","__typename":"TagType"},{"name":"bluetoothspeaker","id":"24498","__typename":"TagType"},{"name":"portalradio","id":"243672","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4240368","filePreviewPath":"media/prints/1013456/previews/b8ca6c2fce2fdc211b445fa02d5320abdb2cece8.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"496755","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.myminifactory.com/object/3d-print-portal-radio-50006","urlAuthor":"Alex I","urlImage":"https://dl.myminifactory.com/object-assets/5a0ed827319d1/images/720X720-dsc08386.jpg","urlTitle":"3D Printable Portal radio","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Changed the base to accomodate usb-c port, added base to the antenna rod holder, changed knob completely to hold a rotaty amp, added knurling to knob.
