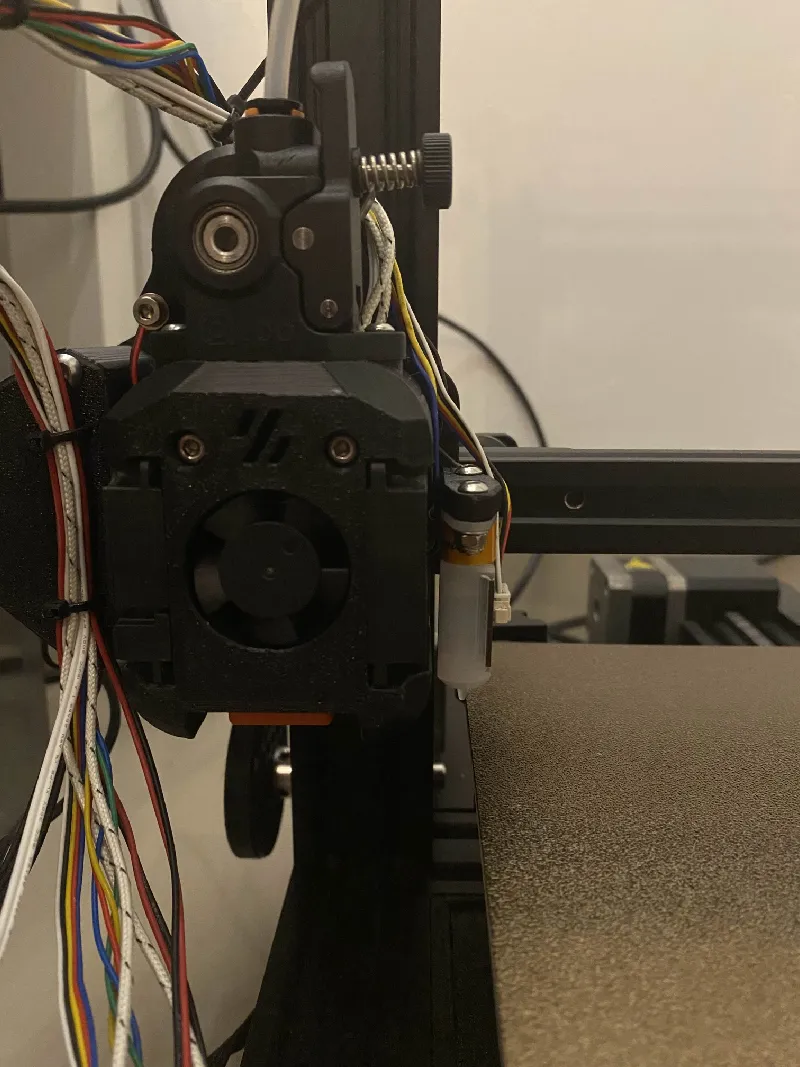

Dragon Burner V8 Mount for Voxelab Aquila with BLTouch (NO SUPPORT)

Printing parameters suggestions:

• 4 walls, 5 layers top & bottom, 60% infill.
• Support NOT REQUIRED.

BLTouch offsets:

• X=0, Y=35 (Based on 3D Model)
• If your BLTouch is slightly bended like mine, please figure out the offsets and reconfigure it yourself.

PLEASE READ

In order to utilize print bed size, the following must be done:

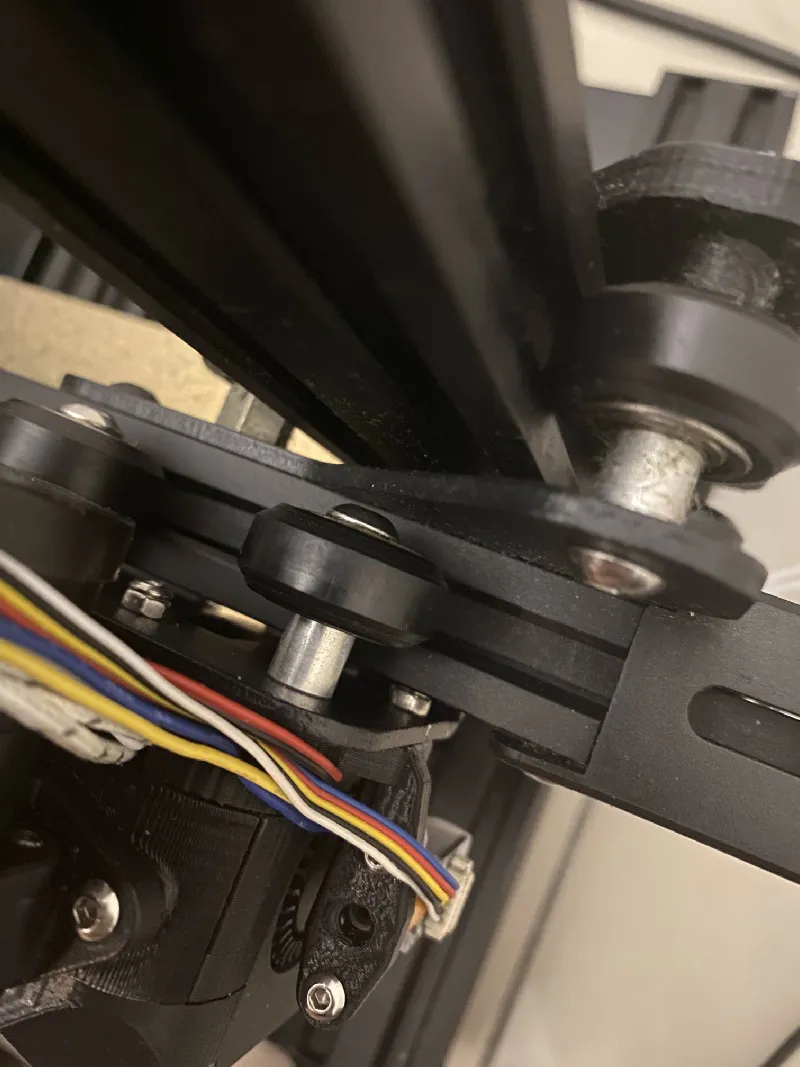

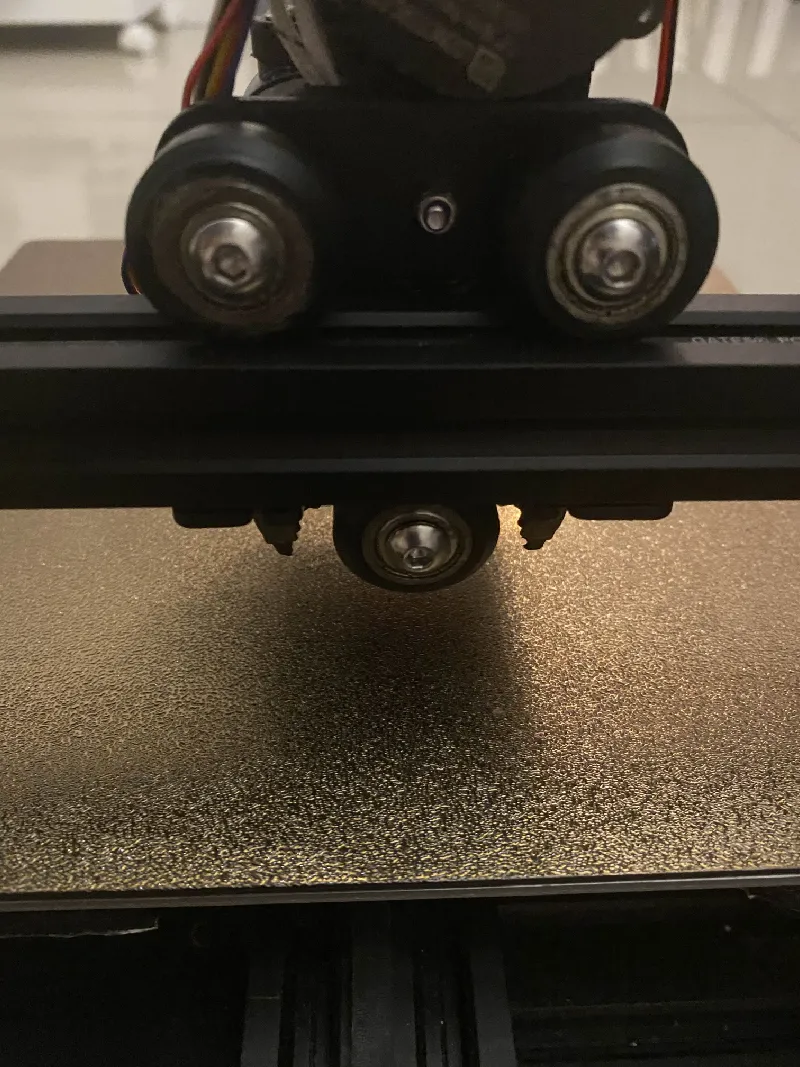

• Reverse the V wheel screws as shown below to allow nozzle to reach right edge of print bed as shown below.

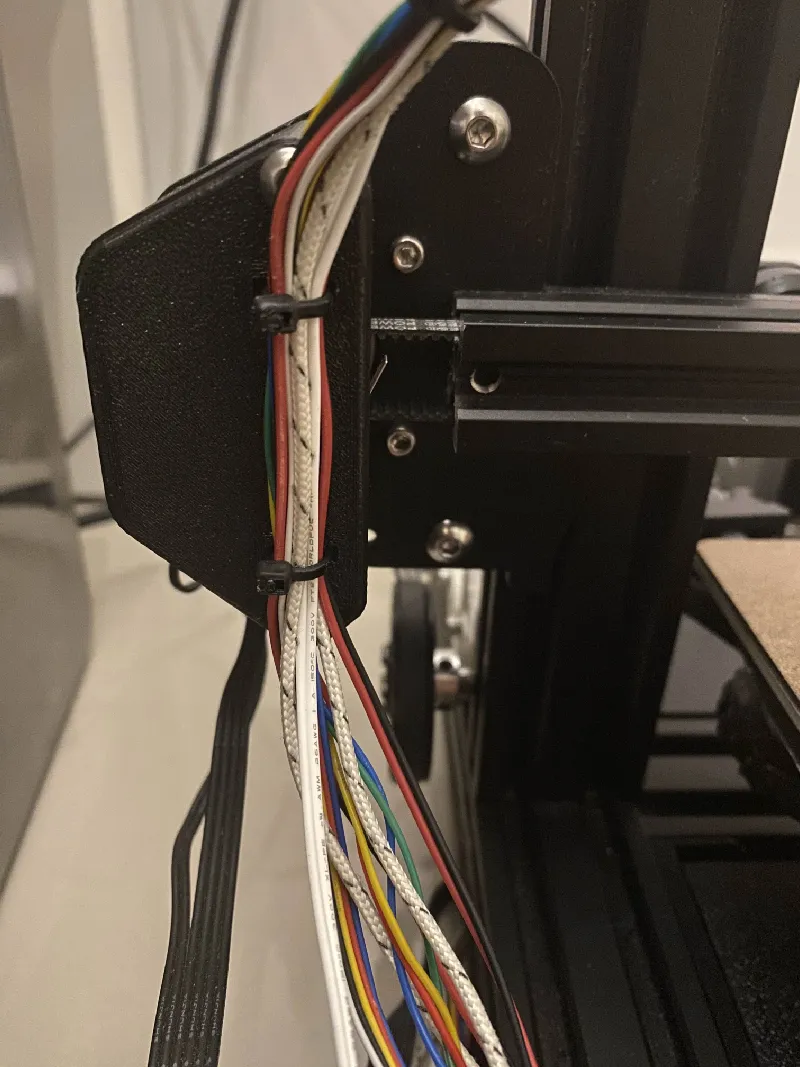

• Print and install the "X_limit" part to allow BLTouch to probe left edge of print bed as shown below.

WARNING

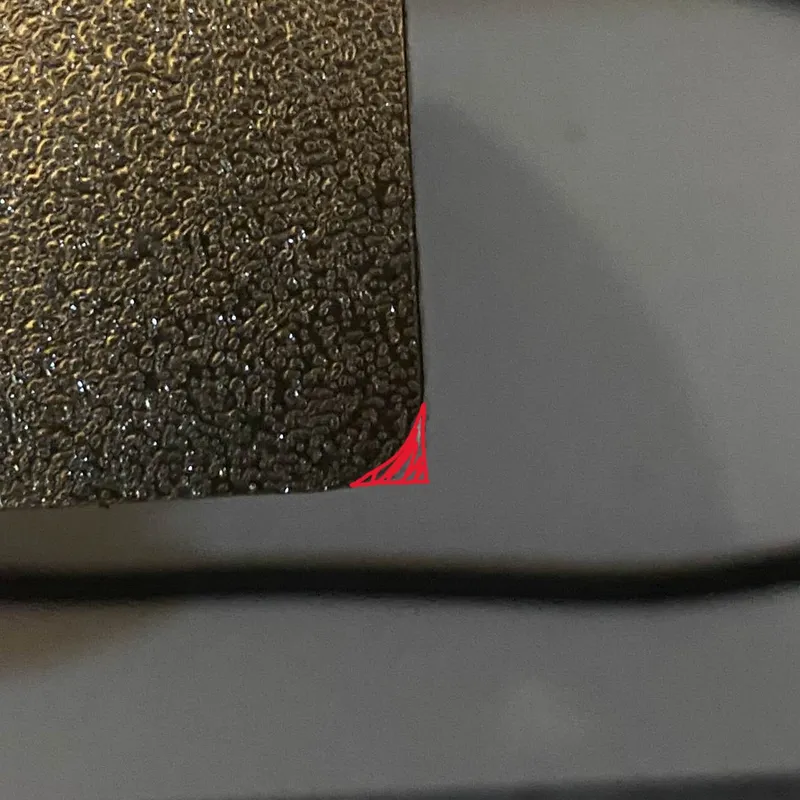

When configuring the firmware / config, please restrict the print & probe area to prevent the BLTouch from crashing into the print bed while trying to probe the fillet void on the corners of the print bed as shaded in the picture below.

For me, I am only using 226x226mm of my print bed instead of 235x235mm.
