WAGO stackable storage box

Elevate your organization game with our cutting-edge storage solution, designed for the modern professional. Whether you're working on your bench or on the go, our Solid Slim and Smart boxes are crafted to meet your needs with unparalleled efficiency and flexibility.

Key Features:

Field-Proof Design: Perfect for stationary use or transport, these robust boxes are engineered to withstand the rigors of both your workspace and the field.

Stackable and Space-Saving: The innovative stackable approach allows you to maximize your bench space and carry multiple boxes securely clamped together, streamlining your workflow.

Customizable Interior: Each box comes with adaptable slots, giving you the freedom to create custom brackets and organize your tools and materials exactly how you need them.

Streamline your organization, whether at your workstation or on location. Choose Solid Slim and Smart for a storage solution that adapts to your needs and keeps you prepared for any task.

Print:

Single box consists of:

PRINT ORIENTATION:

I recommend to use 0.2mm resolution to achieve most satisfying result and tight fits.

TOP:

BOTTOM:

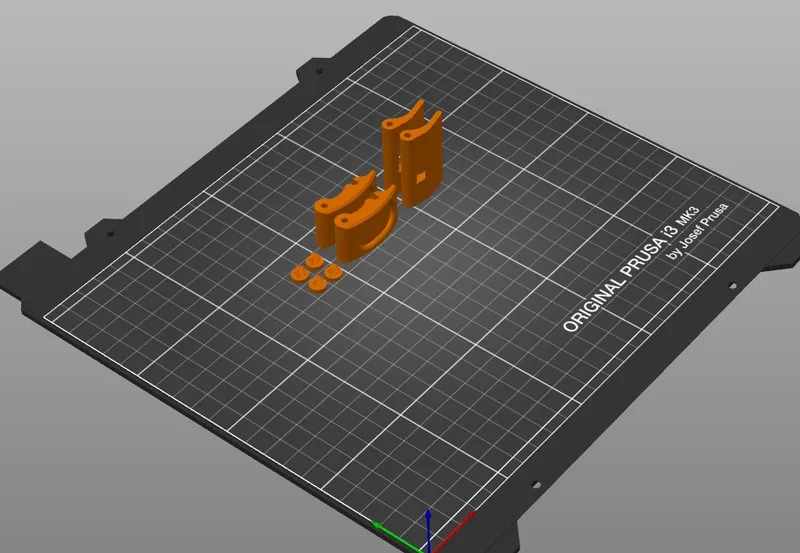

LOCKS AND PINS:

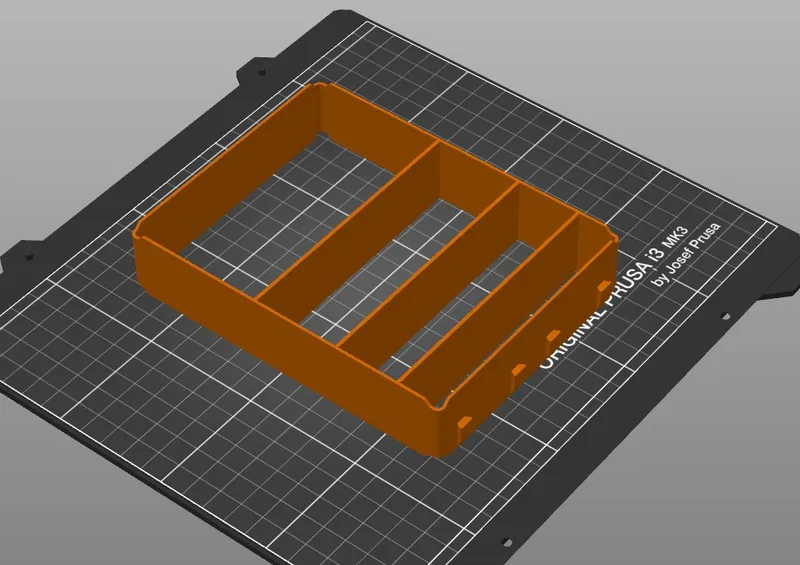

INSIDE BRACKET:

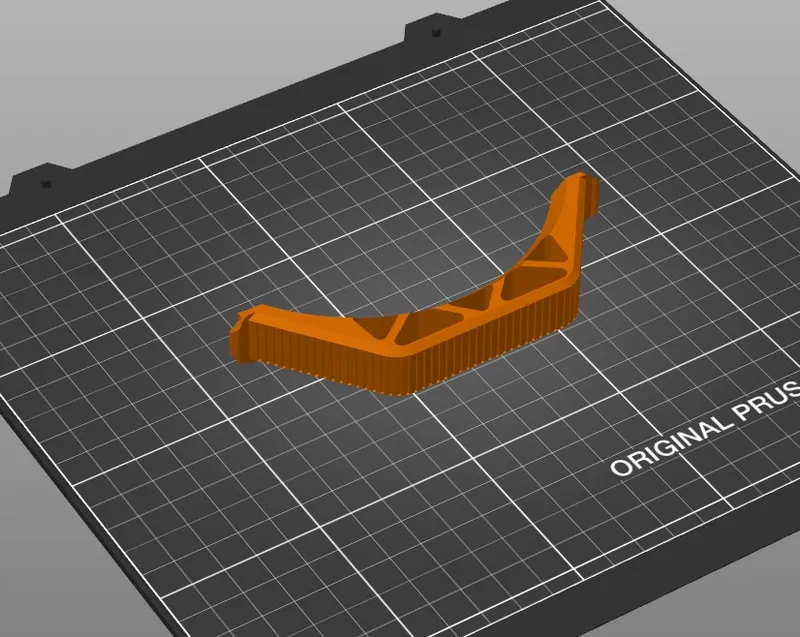

HANDLE:

ASSEMBLY:

1. Screw STACK LOCKS to the Top.

It is recommended to use M3x10 bolts to attach stack lock to the hinge. After fastening the lock should move freely.

2. Screw LOCKS to the TOP

It is recommended to use M3x30 bolts to attach stack lock to the hinge. After fastening the lock should move freely.

3. Screw PIN to the TOP

Each PIN is threaded and should be easily screwed to the hole at each corner of the TOP. PIN is equipped with little slot which allows you to use flat screw driver for this operation.

4. Connect TOP and BOTTOM

It is recommended to use M3x30 bolts to attach stack lock to the hinge. After fastening the hinge should move freely.

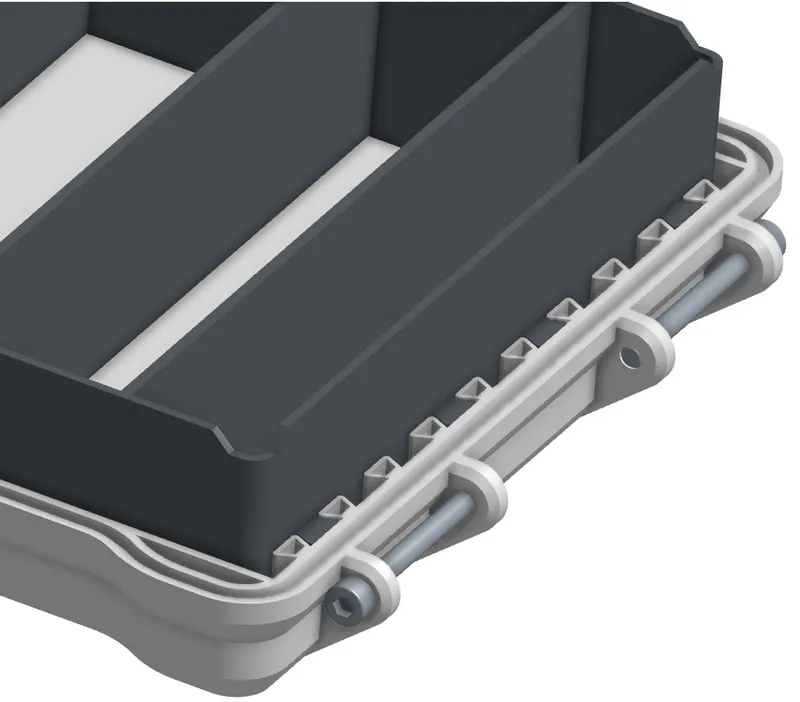

5. Insert bracket into the BOTTOM

Bottom is equipped with a number of slots to accommodate different types of brackets. In this case it is to hold WAGO connectors bracket. Simply slide the bracket into the slots

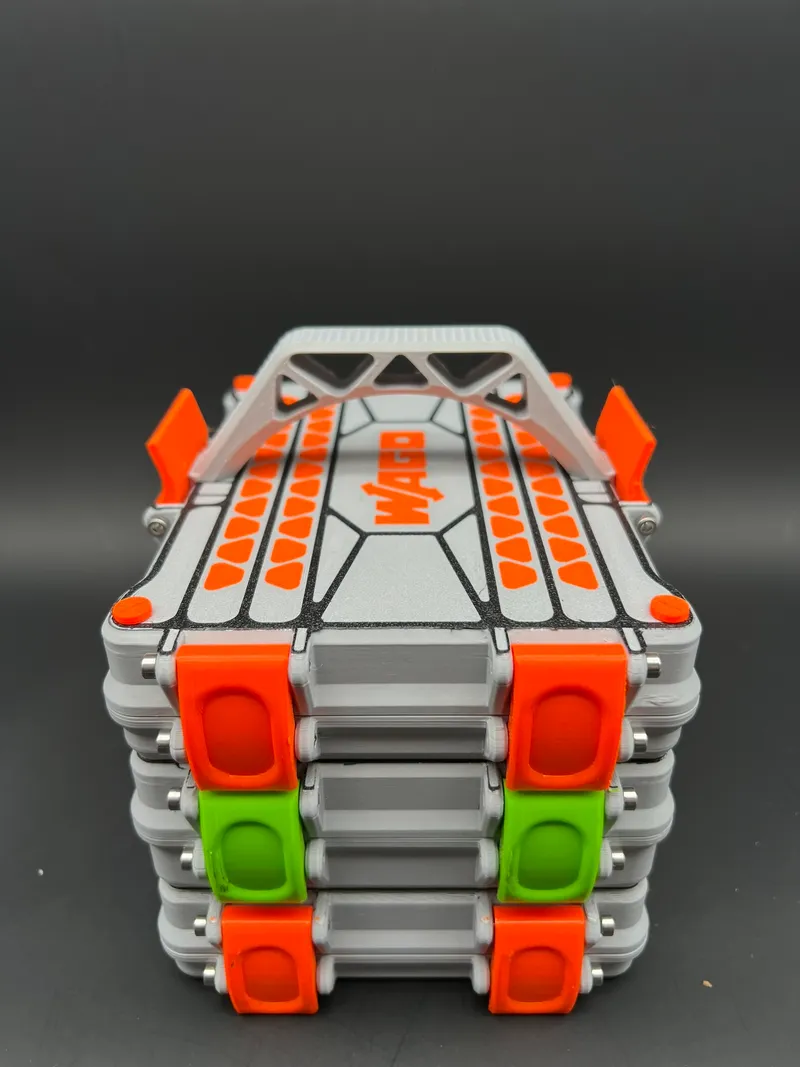

STACKING:

It is possible to easily stack multiple boxes on top of each other. PINS are there to keep the boxes steady on top of each other and STACK LOCKS keep boxes firmly together. To stack boxes on top of each other simply swing the STACK LOCK and latch it on the latching point of the box above it.

HANDLE:

You can attach the handle to the most top box using same technique as before to stack boxes on top of each other.

COLORS:

Imagination is the limit. Inspired by original green and orange color line of WAGO you get as close as possible to the product.

Thank you for your support and enjoy the printing ;)
