OpenSprinkler Pi (OSPi) Winford DIN mount adapter

Adapter plate for mounting an OSPi board to a Winford RasPi DIN rail mounting plate (or other RasPi mounting surface)
1
7
0
47
updated September 18, 2024

Description

PDF

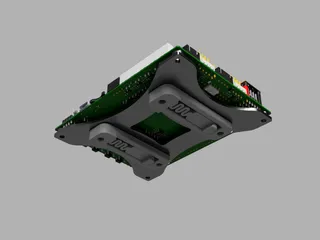

Adapter plate for mounting an OSPi (with attached Raspberry Pi) to a Winford Engineering DINP07-PI01 DIN rail adapter. The plate uses the standard RPi hole spacing so this should work for other mounts as well.

The plate attaches to the Winford adapter using M2x3x3.2 heat set inserts on the 4 inner bosses. The plate attaches to the OSPi using M3 screws and bolts (except for the top left hole which which accepts an M3 screw).

This was designed with an OSPi v1.52 but other revisions might also fit.
