Snuff-lift, the definitive snuff box

Are you in search of an elegant, efficient, and discreet way to enjoy your favorite snuff blend? Allow me to introduce the Snuff Box with Integrated Inhaler, a fun and innovative accessory designed to deliver a flawless inhalation experience, whatever kind of snuff you like (herbal snuff,, tabacco snuff, …).

With a simple design and a functional internal mechanism, this snuff box allows you to precisely measure and inhale the right amount of snuff while keeping everything clean and tidy, no matter where you are, offering a solution for the true connoisseur.

Instructions for Use

Loading the Snuff

• Open the top lid of the snuff box.
• Using the small funnel provided in the set, gently pour your preferred snuff mixture into the box.
• Once filled, carefully close the lid.

Preparing the Dose

• To prepare the perfect dose, give the snuff box a couple of light taps to allow the snuff to settle properly.

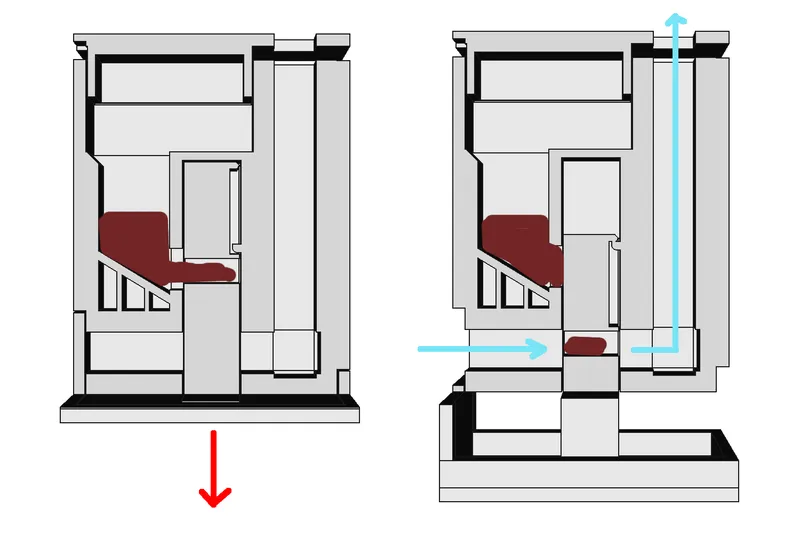

• Gently press down on the base of the device — this action will open a small side aperture and move the correct amount of snuff into the inhaler’s chamber.

Inhalation

• While holding the base down, bring the top opening of the inhaler close to your nose and gently inhale the contents.
• The design ensures optimal dosing and a smooth flow.

Closing and Preparing for the Next Inhalation

• After inhaling, lift the base back up.
• This will not only close the side aperture, preventing any snuff from spilling, but also prepare the snuff box for the next use, keeping it clean and organized for future enjoyment.

Printer setup

Suggested resolution 0.3mm for PLA.

Licence

Dual License

This project (including schemas, images and 3d models) is licensed under two separate licenses: a Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) license and a Commercial License.

1. Creative Commons Attribution-NonCommercial (CC BY-NC 4.0)
   You are free to:
      Share — copy and redistribute the material in any medium or format
      Adapt — remix, transform, and build upon the material
   Under the following terms:
      Attribution — You must give appropriate credit, provide a link to the license, and indicate if changes were made.
      NonCommercial — You are not allowed use the material for commercial purposes.
   For more details on the terms of this license, please visit:
   https://creativecommons.org/licenses/by-nc/4.0/
2. Commercial License
   If you wish to use this project or any part of it for commercial purposes, you must obtain a separate commercial license. Please contact us at the following email address for further information and to discuss the terms: Contact: [email protected]

Research has been conducted to ensure that this model is original and does not infringe on any existing copyrights. Should any copyright concerns arise, please contact me directly with all relevant information, and I will address the matter as soon as possible.

Disclaimer of Warranty and Liability

This model is provided "as is", without warranty of any kind, either express or implied. The creators of this model disclaim all responsibility for any damages or injuries, whether to property or persons, that may arise from its use. By using this model, you agree that you assume all risks associated with its use, including any direct, indirect, or consequential damages.

Project Repository

https://github.com/snuffboxFgS/snuff-lift/tree/main
