Resized to Standard 30 Amp Relay

0 reviews

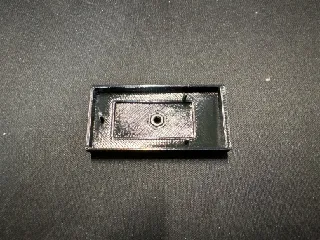

The model is a remix of Ender 3 V2 30A, but now the dimentions are set for a standard 30Amp Relay
2h 30m
1× print file
0.25 mm
0.40 mm
72.00 g
0
7
0
29
updated September 12, 2024

Description

PDF

This is my first time uploading a 3D model.

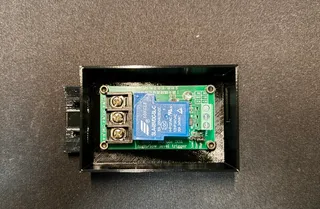

I have modified the dimentions to fit a standard 30Amp relay that I had to mount.

Amazon link (no affiliation) - https://www.amazon.com/gp/product/B07DSZFLMQ

Relay Dimentions:
72mmX40mm

Mounting Hole Dimentions:
67mmX35mm


Tags

relay 30amprelay 30arelay

Model origin

The author remixed this model.

Ender 3 V2 30Amp Relay Enclosure
 by ARt


Differences of the remix compared to the original

I have modified the V2 of the model dimentions to fit a standard 30Amp relay that I had to mount.

Amazon link (non-affiliate) - https://www.amazon.com/gp/product/B07DSZFLMQ

Relay Dimentions:
72mmX40mm

Mounting Hole Dimentions:
67mmX35mm
