FNIRSI HS-01 Soldering Iron Case with Electric Screwdriver
Description
PDFJust a case to carry my soldering iron, electric screwdriver, some hex bits and some tips for the iron that also works as a stand for the soldering iron.
Anything with the following dimensions will be able to fix in the screwdriver slot:
- Diameter: 16mm
- Length: Below 185mm
The bit holder allows for 16x 4mm hex bits.

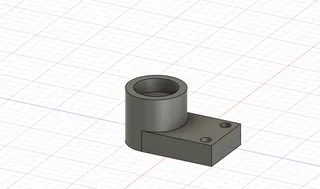

It uses 1x608 bearing to hold the soldering iron, 6x M3*28mm screws and 6x M3 nuts.
It was printed with my Anycubic Kobra 2 Neo, at 0.2 layer height, at 40% rectilinear infill in PLA. In case the measurements of the case seem off I suggest going to the original author and downloading the model from there and separating the case, I used my slicer in order to separate it.
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
Added space for an Electric Screwdriver with a diameter of 16mm, added a 4mm bit holder, added a cover so the tips don't fall off, made more space by removing a soldering wire wheel and shrinking the soldering iron tip container.
