Well done making this modification - was about to make this exact modification before I checked remixes. Thank you!
Gridfinity Grids - Stacked for Printing - with supports
Stacked Gridfinity Grids with modeled support
40
380
2
1176
updated September 8, 2024
Makes
Comments

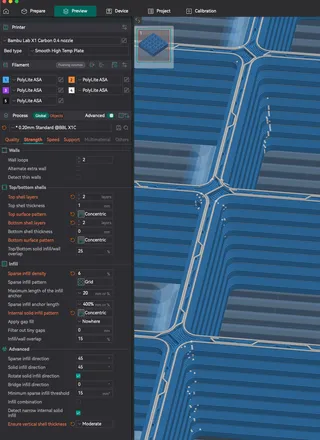

With the provided 3MF, I'm not getting solid tops or bottoms of my model. Am I missing something?
need to gget some PLA supports, first try didnt quite work due to wet filament i guess

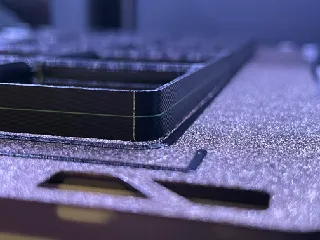

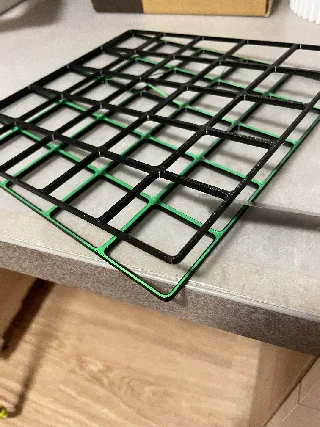

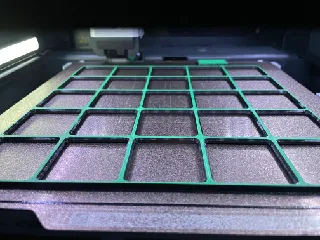

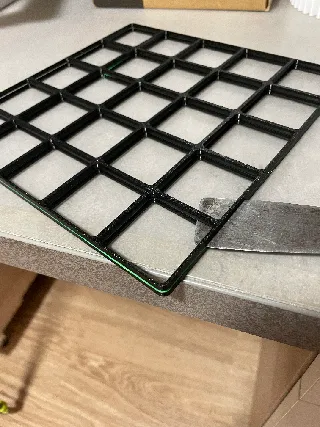

Ran a 5x5 stack last night on my X1C. Turned out great! I used a BuildTak spatula to help pry apart the grids. No breakage.

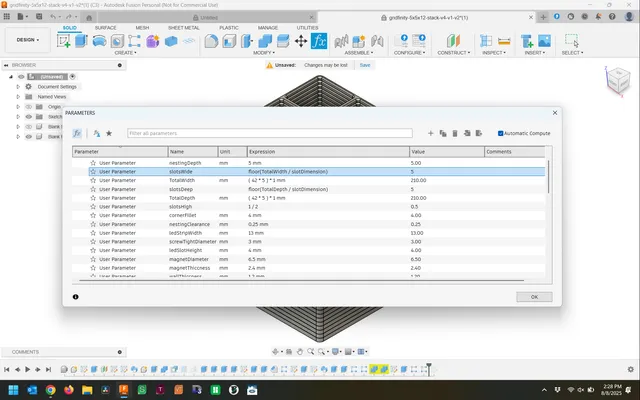

hi, i want it to be a 6x6 farme, how do i do it in bambu studio? I can change the parameters in FUsion but how to make supports in bambu slicer? Could you please help me?
View 4 more comments
@alanti_1720310 Ahhhh, nice!
@Rudeytwotone_2428252
Adding a little detail here to help any other Fusion360 novices... there are 2 options for export here.
1. Right click Blank Frame, choose Save As Mesh, 3MF then follow Rudey's instruction.
2. Right click Blank Frame, choose Export... export a step file. Import it into Bambu or Orca slicer, then right click the object in Bambu and choose Split... To Parts. Then you can select the thin support pieces and set them as a different material (PLA support, PETG, etc). (edited)
