I am probably mistaken, but most screw measuring/sorting tools seem to be more bolt orientated as missing 3.5mm and 4.5mm in all other models and 2.5mm in most cases.

I liked the one by Boogie a little longer than most, leaving space to add my missing 0.5mm.

I have produced two versions. Both versions have proud length numbering as per the original. However, the screw/bolt diameter lettering has the choice of proud or sunken lettering.
I Have started adding Step files to my models to make it easier for others to change them if you so wish.

PLEASE remember to like it.
With the article below on changing colour, I have attached my Gcodes for both using two different colours on my single-colour printer.

https://help.prusa3d.com/article/color-change_1687

Will be printing using Prusament. preferred settings below.

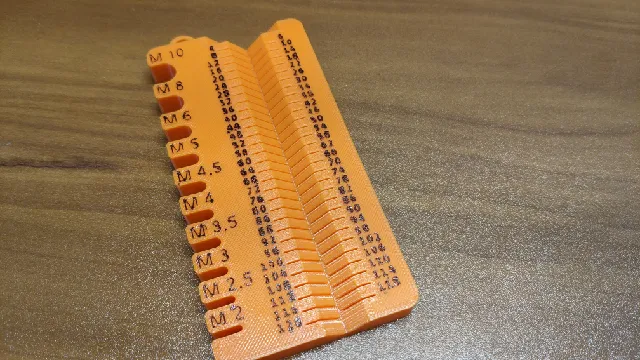

25/08/2022: Sunken version printed in orange, black numbering. All works well, tested 2.5, 3.5, 4, 4.5 and 5mm. Sure the rest will be ok
