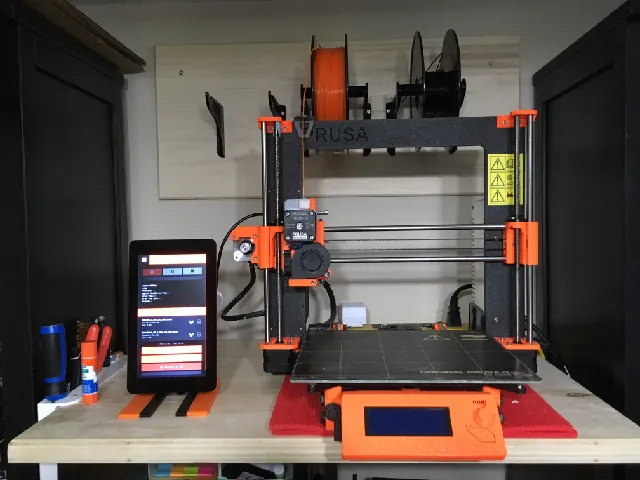

{"data":{"make":{"id":"96564","created":"2021-12-15T22:24:11.691543+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"56334","handle":"MakingWithSteve","verified":false,"dateVerified":null,"publicUsername":"Making With Steve","avatarFilePath":"media/auth/avatars/ce/ced835fb-3f28-41ed-bff8-2d9a79490d47.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"24998","filePath":"media/comment_images/0e/03f37f-59b4-4a23-acb4-e369750a44fb/20190122_133059_img_5590.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Made a remix to mount the screen vertical in my case but the whole print works great!","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"18153","ratingAvg":"4.6666666667","ratingCount":24,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"18153","slug":"raspberry-pi-7-inch-touchscreen-display-case","name":"Raspberry Pi 7 Inch Touchscreen display case","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6666666667","myRating":null,"ratingCount":24,"description":"

Easy to print solid Raspberry Pi 2 or 3, Official 7 inch touchscreen case. I wanted to keep the black bezel look of the screen and not making it bigger. You will need 4 M3x6 or 8 screws to secure the back cover. There is room inside for the power cables.
\n I will use this as a kiosk display and NAS for my Kodi player I have cut out some areas at the back where I can add velcro strips to mount a 2.5 inch HDD.
\n Enjoy and show off your builds and mods.

Update 290516: Added 2cm Velcro lid and lid without HDD support.

Update 310516: Added new case with little door access to the SD card. Still need small pliers or pincet but it's easier than unscrewing the back lid.

Update 150317: Added split STL for front to enable print on small print beds.

Update 010118: Added split STL for case Left and Right to enable print on small print beds

Update 240418: Added the 123Design source files

Print instructions

Category: Electronics Print Settings

Printer: Prusa i3 Plus

Rafts: No

Supports: Yes

Resolution: 200 um

Infill: 20%

Notes:

I used supports for the Case, others don't need support. To finish the print faster you can use 2 bottom and 3 top layers.
