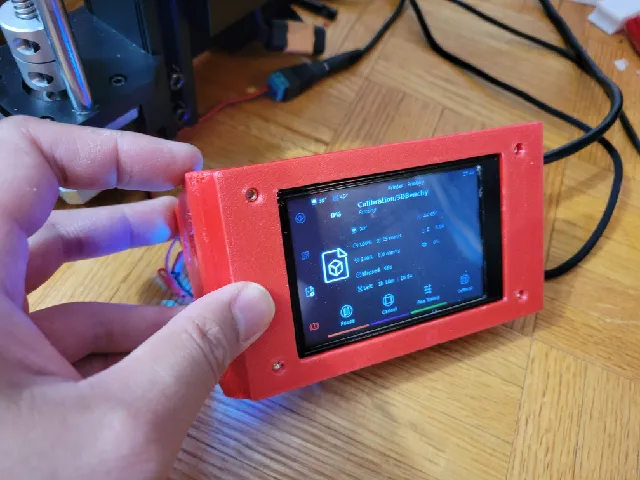

This is the modification to replace the stock TFT screen with the Touchscreen TS35 with Mks Pi mounted on the back. The design has a 3510 24v fan mounted on the side to cool both the Pi and the screen. It also has built-in cable management for the super long FFC that comes with the kit

Updated: Add another version for 4010 fan if the 3510 is not strong enough for cooling

Bill of Material

(12x) M3 x 4 x 4.5 Heated Inserts (OD 4.5)
(4x) M3 x 16mm Socket Cap screws (TS35 Mounting)
(4x) M3 x 8mm Socket Cap screws (Mks Pi Mounting)

Printing:

Please lay the part flat on the buildplate as shown. Infill 20%+. Printed in PLA is fine but you can make it in any material.

Print with SUPPORT

Post Processing:

Inserts (4x) M3 heated inserts to the TS35 SV06 Bracket as shown

Insert (4x) M3 heated inserts to the Pi Bracket as shown

Insert (4x) M3 heated inserts on the fan mount bracket

Installation:

Place the TS35 on the bracket. Orient so that the cable is facing towards vertical wall
Secure the TS35 with (4x) M3 x 16mm screws

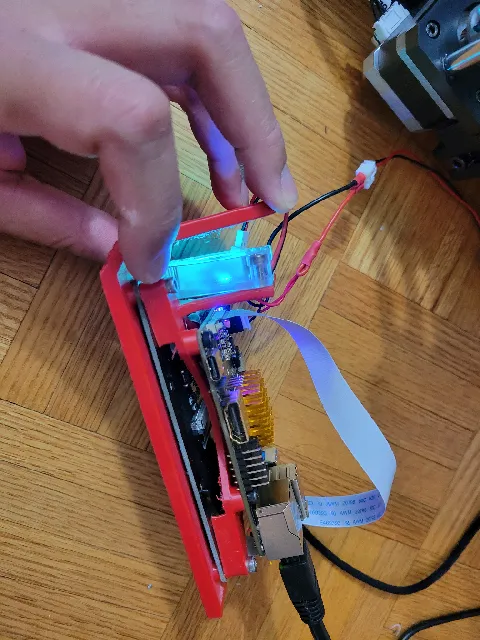

Place the Pi Bracket over the screen, orienting so that the fan bracket is facing towards the wall
Carefully loop the cable through those built-in cable management slots. DO NOT pull the cable too much at the entrance or you will risk damaging your cable

Place the Pi on top of the Pi Bracket. Tighten the Pi down with (4x) M3 x 8 screws
Once you are done, run the USB cable from the Pi back to the Main board
To power the 24V, you can make your own power splitter going from your PSU to the Mks Pi.

If you think the model is useful, please feel free to donate to support future development work
