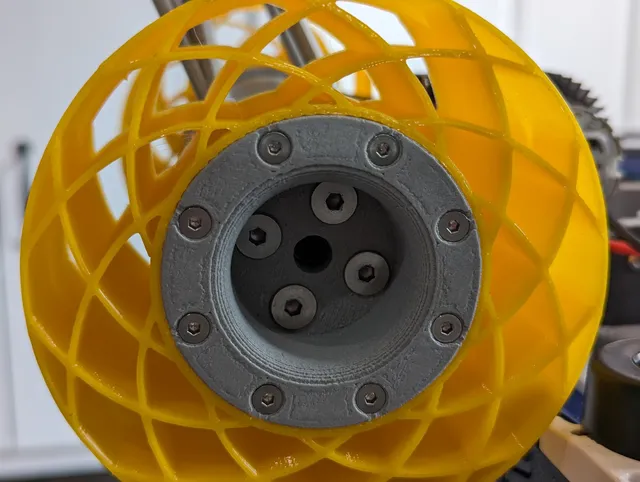

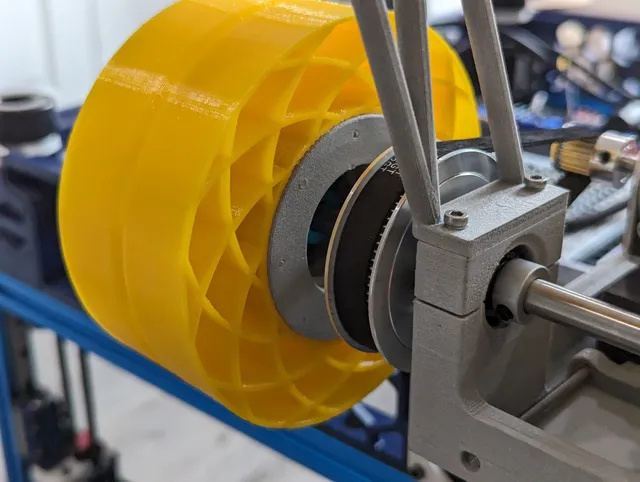

{"data":{"make":{"id":"931049","created":"2023-06-19T19:29:03.881859+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"14","name":"Prusa MK3S/+ & MMU2S/3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"88452","handle":"Verris","verified":false,"dateVerified":null,"publicUsername":"Verris","avatarFilePath":"media/auth/avatars/1e/1e8ac041-51bf-49e6-b449-341006442d73.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"788082","filePath":"media/comment_images/f9/b2023b-caad-425d-b427-06924f47ab7a/pxl_20230619_192620583.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"788081","filePath":"media/comment_images/94/c66e6c-5f25-4e77-9a05-7a4adfe4d0df/pxl_20230619_192615374.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Works great, though the stock inside of the inner hub is a very tight fit for the flanges I had and they got stuck. Also needed to drill the holes a bit to get the m5s to spin freel.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"497100","slug":"rear-axle-mod-for-rmrrf-top-fuel-dragster","name":"Rear Axle Mod for RMRRF Top Fuel Dragster","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"0","myRating":null,"ratingCount":0,"description":"

This is a remix of the rear axle from this model.

To complete this mod, you must be able to tap eight m5 threads into the flange coupling.

We found it tedious to balance the rear wheels of our original car build due to the uneven nature of some of our hastily printed parts\u2026specifically the 3d printed adapter which wanted to bulge when we put the heat sets in. This Mod removes the need for that adapter which will also will make it easier to balance the rear wheel, and removes several items from the original bill of material.

The included PDF is for the new axle size. The axle needs to be slightly longer than the original since we are no longer using the 3d printed adapters from the original build.

The new outer wheel hub has been modified for m5 flat head screws. You still need the inner wheel hub from the original car build.

You will no longer need the m4 heat sets or the m4 screws from the original BOM. You can use the metal flange coupling from the original BOM but it will be difficult to Tap.

You will now need the following:

8 - M5x10mm Flat Head Screws

If you want an easier flange coupling to tap try this one:

2 - 8mm Aluminum Flange coupling

","category":{"id":"64","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"64","name":"RC & Robotics","nameEn":"RC & Robotics","description":"Huge selection of Arduino robotic arms, F1 cars, drones, tanks, airplanes, trucks, and other RC models, plus robotic prints for beginners and advanced users.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-06-06T17:06:02.480570+00:00","firstPublish":"2023-06-02T23:18:12.284266+00:00","datePublished":"2023-06-06T17:06:02.465204+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"This mod improves rear wheel balance and removes the necessity of the Rear Wheel Adapter.","likesCount":4,"makesCount":1,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":29,"displayCount":261,"filesCount":2,"privateCollectionsCount":5,"publicCollectionsCount":4,"pdfFilePath":"media/prints/497100/pdfs/497100-rear-axle-mod-for-rmrrf-top-fuel-dragster-0592efe6-d781-4884-95c4-5aa9846ba514.pdf","commentCount":2,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":null,"image":{"id":"1930489","filePath":"media/prints/497100/images/4046624_06f4c2db-ec1d-499b-a88c-288c9aa08d5b/2023-06-02-18_11_37-window.png","rotation":0,"imageHash":"OggGBIAvirXTlWhseCuyHCDKAQ==","imageWidth":951,"imageHeight":590,"__typename":"PrintImageType"},"images":[{"id":"1930489","filePath":"media/prints/497100/images/4046624_06f4c2db-ec1d-499b-a88c-288c9aa08d5b/2023-06-02-18_11_37-window.png","rotation":0,"imageHash":"OggGBIAvirXTlWhseCuyHCDKAQ==","imageWidth":951,"imageHeight":590,"__typename":"PrintImageType"}],"tags":[],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2134867","filePreviewPath":"media/prints/497100/stls/4046602_6b5488c1-51a4-44e7-96f7-be1b5f4bf350/outer-hub_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"309375","modelId":"483117","modelName":"Top Fuel RC Drag Racer RMRRF","modelAuthor":{"id":"284145","handle":"How2Texan","verified":false,"publicUsername":"How2Texan","__typename":"UserType"},"model":{"id":"483117","name":"Top Fuel RC Drag Racer RMRRF","slug":"top-fuel-rc-drag-racer-rmrrf","datePublished":"2024-03-02T16:23:43.032804+00:00","image":{"id":"1885126","filePath":"media/prints/483117/images/3947092_fcbe65f5-07f6-4b1d-8fb4-953c37beb168/20230418_180803-1.jpg","rotation":0,"imageHash":"UhgKDYJIl3Z/d3hgiGdmegi8edBq","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"club":false,"authorship":"reupload","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"284145","handle":"How2Texan","verified":false,"dateVerified":null,"publicUsername":"How2Texan","avatarFilePath":"media/auth/avatars/52/521afa47-e96f-4166-b55c-92502ddc1f68.png","badgesProfileLevel":{"profileLevel":24,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"931357","created":"2023-06-19T23:23:54.221714+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"931049","__typename":"PrintCommentType"},"author":{"id":"284145","handle":"How2Texan","verified":false,"dateVerified":null,"publicUsername":"How2Texan","avatarFilePath":"media/auth/avatars/52/521afa47-e96f-4166-b55c-92502ddc1f68.png","badgesProfileLevel":{"profileLevel":24,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"88452","handle":"Verris","__typename":"MentionListAssociationType"}],"text":"##user-88452## It is a tight fit but shouldn't be too tight...I didn't have any problems with my m5s. How tight was it?","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType"}]}}}

Rear Axle Mod for RMRRF Top Fuel Dragster

Rear Axle Mod for RMRRF Top Fuel Dragster
