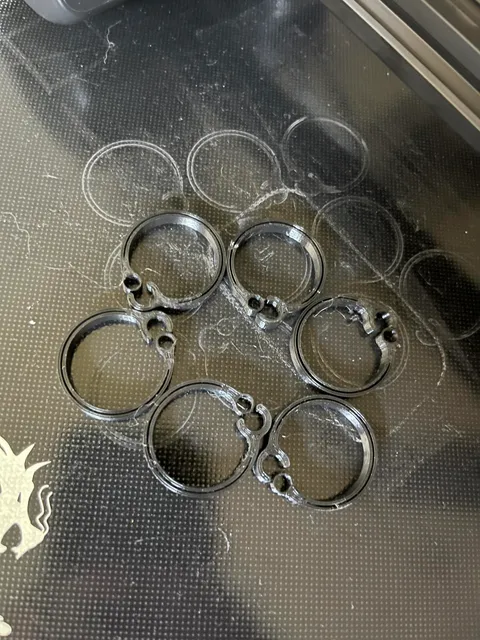

{"data":{"make":{"id":"930446","created":"2023-06-19T14:24:33.147324+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"292","name":"Creality Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"905098","handle":"Inversed_905098","verified":false,"dateVerified":null,"publicUsername":"Inversed","avatarFilePath":"media/auth/avatars/1c/1cd20786-bfad-4e1a-8d2a-cb7ce56c0431.png","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"787528","filePath":"media/comment_images/f7/2c5b9d-4db8-4b54-8ce4-d5eceeff791e/355194873_3443493122535254_495249553368270844_n.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed those 10 at a time with 0.15mm layer height and they turned out bombastic ! Really useful model, thank you.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"414635","slug":"igraring-v2-cable-organizer-flexible-pla","name":"IGRARING-V2 Cable organizer (flexible, PLA)","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9166666667","myRating":null,"ratingCount":36,"description":"

I redesigned the original \u201cIGRARING\u201d for extra flexibility, the additional hole in the circular section allows for easier opening and closing while the internal slit provides the needed flexibility due to material compliance. The original is technically too stiff to print in PLA (Ideally it should be printed in PETG) however this remix allows for PLA without issues.

There's slightly less interference between the fitting portions of the model (mainly due to the compliant nature of the slits / holes) which means there's less engagement making it easier to pull apart by hand but it is strong enough once closed.

As a bonus it uses less material and prints faster.

For other sizes you can just resize the model and play with the model height for more or less engagement (taller means more surface area = stronger clip). Resizing makes sure the entire model is proportional to the required stress and load, however thinner versions could be made of course by modifying the model.

This is not necessarily better than the original, just my own take.

If there's enough interest I could make a parametric version next.

SLICING: Make sure your seams are not within the clipping mechanism otherwise it's going to be super stiff at first. Printing with lower layer heights will provide a smoother click action, but dynamic height is preferred all around.

Ideal for room temperature uses, haven't tested in a wide range of temperatures but we all know PLA is not the best candidate for extreme temperature ranges anyway.

","category":{"id":"43","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"43","name":"Other Gadgets","nameEn":"Other Gadgets","description":"Wide offer of 3D printable inventive and technological gadgets and gizmos are available for free download in STL. True techies never have enough of them.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-04-11T14:49:06.984534+00:00","firstPublish":"2023-03-04T03:21:25.751320+00:00","datePublished":"2023-04-11T14:49:06.968293+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"Flexible version of the original \"IGRARING-Cable organizer\". Fine to print in PLA. 25mm version.","likesCount":649,"makesCount":46,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":2479,"displayCount":6477,"filesCount":2,"privateCollectionsCount":471,"publicCollectionsCount":348,"pdfFilePath":"media/prints/414635/pdfs/414635-igraring-v2-cable-organizer-flexible-pla-7f5014f8-2c6f-4361-a3b3-b6236c4ae494.pdf","commentCount":60,"userGcodeCount":0,"remixCount":5,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1654160","filePath":"media/prints/414635/images/3440776_d93fef3d-7d6a-4247-ac2f-98594e468df2/cable_tie_25.png","rotation":0,"imageHash":"MwgKBoD5xZiIaIeKetQ36EdzBnZ0YFc=","imageWidth":1612,"imageHeight":1480,"__typename":"PrintImageType"},"images":[{"id":"1654160","filePath":"media/prints/414635/images/3440776_d93fef3d-7d6a-4247-ac2f-98594e468df2/cable_tie_25.png","rotation":0,"imageHash":"MwgKBoD5xZiIaIeKetQ36EdzBnZ0YFc=","imageWidth":1612,"imageHeight":1480,"__typename":"PrintImageType"}],"tags":[],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1801890","filePreviewPath":"media/prints/414635/stls/3440777_90369e59-fd5c-4e18-868a-d07d35a80053/cable_tie_25_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"260747","modelId":"336184","modelName":"IGRARING-Cable organizer","modelAuthor":{"id":"335114","handle":"JardaLinek","verified":false,"publicUsername":"Jarda Linek","__typename":"UserType"},"model":{"id":"336184","name":"IGRARING-Cable organizer","slug":"igraring-cable-organizer","datePublished":"2022-12-21T18:24:11+00:00","image":{"id":"1398219","filePath":"media/prints/336184/images/2878805_fbd36eff-c581-4006-99de-d9c66e7c0a9c/untitled23.png","rotation":0,"imageHash":"IEkWLYr2qHh1eIiHeZd4d0d2cFQH","imageWidth":1265,"imageHeight":948,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"379701","handle":"GuShH","verified":false,"dateVerified":null,"publicUsername":"GuShH","avatarFilePath":"media/auth/4d1a4198-b50f-4a01-ad8c-bf8c367e3dcc.png","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
