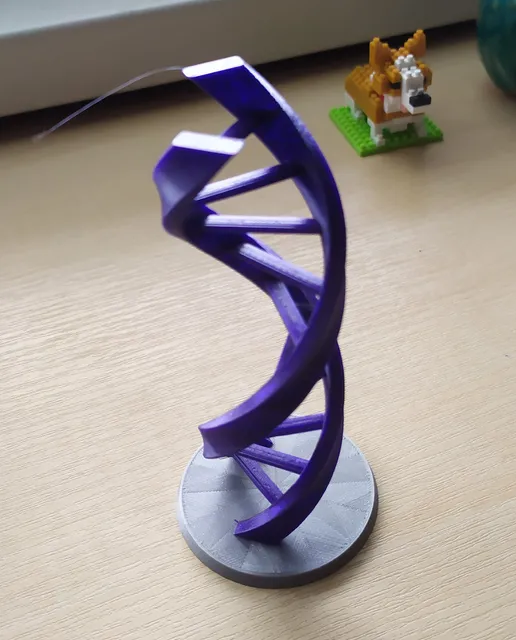

{"data":{"make":{"id":"80855","created":"2021-08-27T12:21:40.673683+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"7759","handle":"GZeus_7759","verified":false,"dateVerified":null,"publicUsername":"G.Zeus","avatarFilePath":"media/auth/avatars/15/15c14fb2-1988-4307-8fc4-f5508a218119.jpg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"19004","filePath":"media/comment_images/ec/20534f-712d-4011-833e-7f5e898c02e4/dna_print.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Super nice print for me, pritned in Prusament PLA Galaxy Silver and Galaxy Purple, 0.2 mm and no supports. Come out pretty much perfectly!","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"67632","slug":"customizable-double-helix","name":"Customizable Double Helix","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

A double helix model representing DNA. My first Open SCAD model, and first contribution to Thingiverse. Happy to hear your feedback.

I had the best results customizing using a large size (like the defaults), and scaling in the slicer due to better corner rounding. The main pic is 80% scale, and 50% is more like a cute little Benchy sized print. Consider a color swap as it looks way better. Consider changing your top and bottom fill patterns to Octagram Spiral.

Depending on your filament, this can be a bit tough to print due to the curling of the leading edge of the arms overhang. You can see in the side-by-side picture that my Prusament PLA Azure Blue printed perfectly, but the Prusament PLA Oh My Gold printed with a ton of curling on the leading edge that messed up the bottom of the arms print. The gold looked so good I ran an experiment to figure out how to fix.

To fix the curling the 3 winning tricks seemed to be:
\n Slow things down to 10mm/s including travel above the base. This gives plenty of fan time everywhere.
\n Add a draft shield skirt to give even more fan everywhere.
\n Use 2 perms rather than 3 so that your fan sticks around the general area longer (infill is after external perimeter)

Maybe I'll try upgrading my stock cooling, and learn some gcode tweaks.

Since this is my first upload, I'd love it if you'd leave a comment or post a make!

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Supports:

Resolution:

300

Infill:

\nFilament:
\n\n Prusament PLA Oh My Gold

Notes:

Consider a color swap as it looks way better.
Consider changing your top and bottom fill patterns to Octagram Spiral.

If your leading edge is curling up, try:

Slow things down to 10mm/s including travel above the base. This gives plenty of fan time everywhere.
Add a draft shield skirt to give even more fan everywhere.
Use 2 perms rather than 3 so that your fan sticks around the general area longer (infill is after external perimeter)

\n\nCategory: Biology","category":{"id":"92","path":[{"id":"90","name":"Learning","nameEn":"Learning","description":"Be inventive! Learn about the world around you and print tools to help you understand. If you are a teacher you will appreciate these educational tools.","__typename":"CategoryType"},{"id":"92","name":"Chemistry & Biology","nameEn":"Chemistry & Biology","description":"Educate yourself and others! With a DNA building kit, spine, and molecular models you can demonstrate the laws of nature in your lessons.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-04-12T14:14:45.780812+00:00","firstPublish":"2021-05-25T04:28:39.381606+00:00","datePublished":"2021-05-25T04:28:39.381606+00:00","dateCreatedThingiverse":"2021-05-08T03:43:54+00:00","nsfw":false,"summary":"A double helix model representing DNA. My first Open SCAD model, and first contribution to Thingiverse.","likesCount":95,"makesCount":5,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":479,"displayCount":2113,"filesCount":2,"privateCollectionsCount":65,"publicCollectionsCount":63,"pdfFilePath":"media/prints/67632/pdfs/67632-customizable-double-helix-f20771a7-14e7-45c0-b55f-703d5eadcc7e.pdf","commentCount":5,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":null,"image":{"id":"388958","filePath":"media/prints/67632/images/741198_4c9c392c-5f6c-47bb-9b00-723a8cbefb2a/large_display_20210507_035143020_ios_67632.jpg","rotation":0,"imageHash":"awgOHQKmaHB2eIeHiIpXhwh5hKBH","imageWidth":768,"imageHeight":1024,"__typename":"PrintImageType"},"images":[{"id":"388958","filePath":"media/prints/67632/images/741198_4c9c392c-5f6c-47bb-9b00-723a8cbefb2a/large_display_20210507_035143020_ios_67632.jpg","rotation":0,"imageHash":"awgOHQKmaHB2eIeHiIpXhwh5hKBH","imageWidth":768,"imageHeight":1024,"__typename":"PrintImageType"},{"id":"388960","filePath":"media/prints/67632/images/741197_de4daa0e-9687-4e5d-bd8f-090a52268607/large_display_doublehelix6_67632.png","rotation":0,"imageHash":"7PcFFYLHSKePd4h4hmh4ifh5iZ+X","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"388961","filePath":"media/prints/67632/images/741199_ccfaf3b7-4015-4df5-bfc8-c40ccf75edca/large_display_20210505_004912888_ios_67632.jpg","rotation":0,"imageHash":"GvgFHwQaC8UnjHnZdoeTOJttAHaWgGYL","imageWidth":978,"imageHeight":1024,"__typename":"PrintImageType"},{"id":"388959","filePath":"media/prints/67632/images/741200_1907ba84-ae79-4f4b-96e0-6e3538f79894/large_display_double_helix_tests_67632.jpg","rotation":0,"imageHash":"VikGLYRlSHpbh3dkiPl5ZIhwgAgo","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"}],"tags":[{"name":"thingiverse","id":"6174","__typename":"TagType"},{"name":"dna","id":"6593","__typename":"TagType"},{"name":"nosupports","id":"14840","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:4852492","filesType":null,"previewFile":{"id":"298042","filePreviewPath":"media/prints/67632/stls/741202_d284607c-7d29-4f01-b451-373ef6982152/doublehelix6_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"129293","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:4852492","urlAuthor":"Krampster","urlImage":"https://cdn.thingiverse.com/assets/6d/c3/6d/66/fd/featured_preview_doublehelix6.png","urlTitle":"Customizable Double Helix","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"128378","handle":"Krampster_128378","verified":false,"dateVerified":null,"publicUsername":"Krampster","avatarFilePath":"media/auth/avatars/e6/e63463b0-74a2-49fb-8665-2f5fd2217a8d.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
