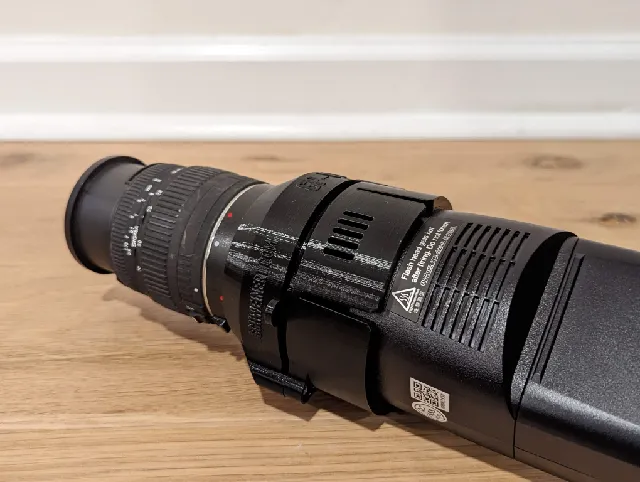

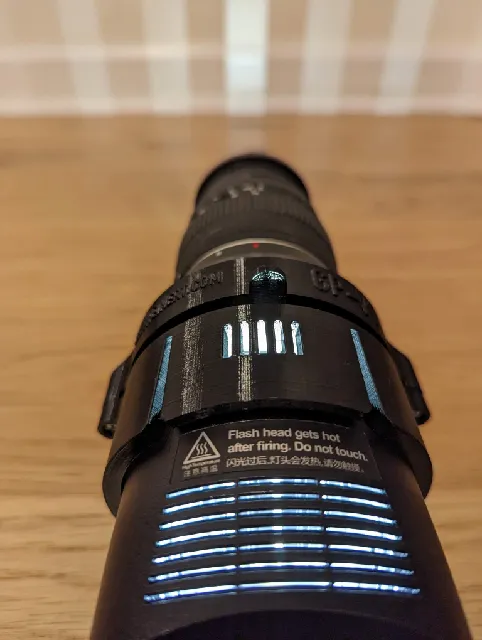

{"data":{"make":{"id":"774415","created":"2023-04-05T04:27:45.946984+00:00","edited":"2023-04-05T04:28:44.605070+00:00","deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"14336","handle":"A_Str8","verified":false,"dateVerified":null,"publicUsername":"A_Str8","avatarFilePath":"media/auth/avatars/13/133e3ed9-e1bf-4d60-8fa4-15f3ae745365.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"639445","filePath":"media/comment_images/e1/a3ac15-c166-4ff6-957a-952fcb755929/pxl_20230405_015813004.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"639446","filePath":"media/comment_images/3a/077da6-8012-48fc-a6fe-968833d7454c/pxl_20230405_020001135.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"This is great design! It fits securely on the Godox round head, but still comes off easily when I want it to.\n\nI was confused about how an extension tube could fit inside the lens holder, but I finally realized that the style of tube used here includes pieces that screw together and do not have lens release switches. My extension tubes have release switches on every section. I remixed the lens holder piece so they would work with it.\n\nhttps://www.printables.com/model/442219-godox-optical-snoot","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"76232","ratingAvg":"5.0000000000","ratingCount":2,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"76232","slug":"godox-gobo-projector-v1-ad200pro-ad100pro","name":"Godox Gobo Projector V1 AD200PRO AD100PRO","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

I've designed a compact gobo projector that is compatible with Godox V1, AD100 PRO, AD200 PRO flash with the H200R round head. I needed something portable when I'm On-Location.

No supports needed if printed like shown on the pictures. I only added a brim when printing the gobo lens holder part. As material I used PETG because it needs to be a little bit flexible to fit on the flash.

What does it do? With this flash projector you can project artistic patterns or slide frames. It's also used in fashion photography to give stripes of light on models and backgrounds or in food photography to give the light a more organic look. I will upload some more samples when I have the time to shoot.

PRO Tip: With the included holder \u201cgobo_gel_diffuser_laser_print_001\u201d & \u201cgobo_foil_holder_001\u201d you can print any patterns, pictures, etc. with a laser printer on transparent film and glue it to the gobo holder. This way you can literally project any pattern you want. Just be creative with it.

STEP files are included - In case you need to change something. Feel free to remix it if you have a better idea on how to create the mounting for the flash. Im not 100% satisfied with it but it was simple to design and it works for me with a lightweight lens.

Update:
Added the \u201cgobo_square_holder.3mf\u201d a gobo holder for 50x50mm gobos - quick changer without gluing. Outer dimensions are square 50x50mm and the inner round gobo should be max. 43mm in diameter. Can't add the PDF with the gobos because they might be copyrighted but you can find tons of free gobos online as PNG, SVG, etc.

Bill of materials:
3x ISO 14585 (DIN7981) diameter 2.9mm x length 13mm (https://amzn.to/3WgKty1)
3x ISO 14585 (DIN7981) diameter 2.9mm x length 9.5mm (https://amzn.to/4bVYsz6)
1x Canon EF Macro Extension Tube (https://amzn.to/3Ysffqa)
I may earn a commission on qualifying purchases (at no extra cost to you)

All details with test samples on how to build it on my blog here:
https://www.schweinert.com/diy-gobo-projector-godox-v1-ad200/

Update for Godox AD100 Pro & V1:
https://www.schweinert.com/diy-gobo-projector-godox-ad100-pro/
