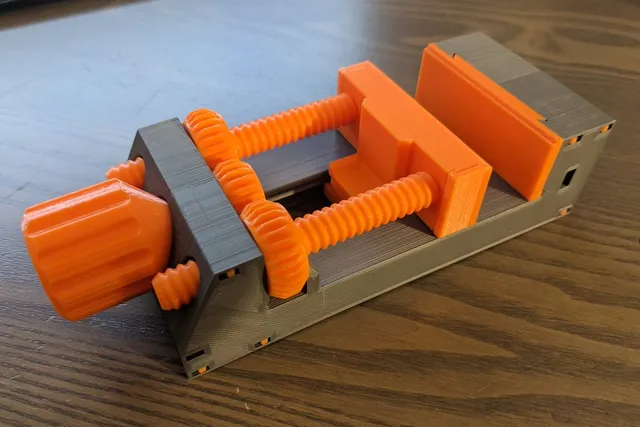

{"data":{"make":{"id":"746466","created":"2023-03-24T04:09:25.727271+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"3","name":"Prusa MK2.5/S","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"29151","handle":"MikeTheSuperDa_29151","verified":false,"dateVerified":null,"publicUsername":"MikeTheSuperDad","avatarFilePath":"media/auth/avatars/32/3263210a-4a42-45df-9193-debc51089180.png","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"612365","filePath":"media/comment_images/a7/ef82d4-8555-43e7-b7b8-37abd5421ed2/vicemake.png","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Works great!","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"51074","slug":"fast-operation-vise","name":"Fast-Operation Vise","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9356321839","myRating":null,"ratingCount":435,"description":"

UPDATE 2022-11-02:

A number of people have reported that the clips are a little too thick to insert without a lot of force or sanding. I added a version of the clip that is 0.6mm thinner. It is named ThinnerClip.stl. You may wish to print one of each first to determine which works best for you.
There are a few remixes with a longer handle floating around. I created one and added it with the name longer_vise_handle.stl. You can print either the standard one (vise_handle.stl) or the new one. You don't need both.

UPDATE 2022-08-04: Based on feedback, I reuploaded mlt_sliding_jaw.stl so that it will load into the slicer in its proper print orientation by default. It is exactly the same part - just reoriented.

I really like this vise by TheGoofy and use it frequently. I would prefer that it open/close more quickly so I designed this remix. The only change is multi-start threads on the rods and gears.

On the original design a single rotation of the knob moves the jaws about 1.3mm. In the new version, a single rotation moves about 5.4mm. I used a 4-start thread with a very similar overall pitch, so roughly 4x on the speed is what I was shooting for. You can see it in action here:

Other than the two updated parts, all of the other components are unchanged. I included all the original STL files, but replaced the STLs for the two parts I redesigned. I also included the Fusion 360 file with the redesigned parts.

There are also several variants that you may print in place of the standard parts:

There is a longer version of the handle (longer_vise_handle.stl)
There is a thinner version of the clips (ThinnerClip.stl)

Print instructions

Rafts: No
Resolution: 0.15mm and 0.2mm
Filament: Prusament PLA

Post-Printing

Please look at the notes on the original design to see notes from the creator. Here is a link to his great video on how the vise was designed. It also shows how to print/assemble it starting at 6:51.

You can also see an exploded view of the model here:
