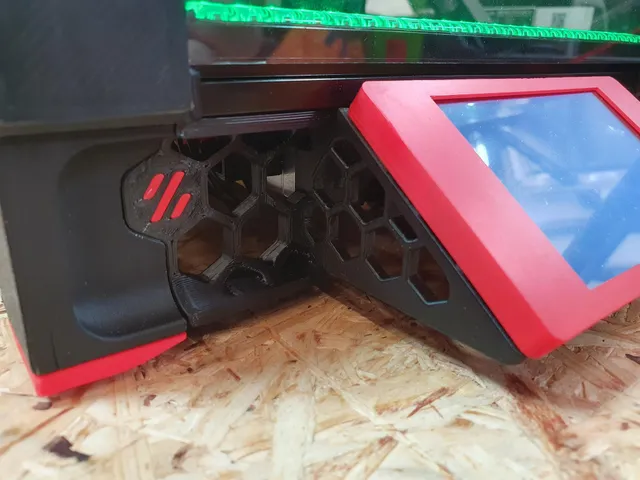

{"data":{"make":{"id":"743200","created":"2023-03-22T13:58:48.597330+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"102","name":"Creality Ender 5","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"235146","handle":"NoWarrenty","verified":false,"dateVerified":null,"publicUsername":"NoWarrenty","avatarFilePath":"media/auth/avatars/7b/7b7d6bcc-800a-47b7-9378-7b3fdbfde21b.jpeg","badgesProfileLevel":{"profileLevel":17,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"609211","filePath":"media/comment_images/02/9abd37-a17e-4df3-ab87-9e0140f0ef70/signal-2023-03-22-145447.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Thanks for making/publishing this. I have added a remix for the v0.2 skirts in case you plan to upgrade.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"343664","ratingAvg":"4.5000000000","ratingCount":2,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"343664","slug":"voron-0-waveshare-35-mount","name":"Voron 0 Waveshare 3.5\" Mount","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5000000000","myRating":null,"ratingCount":2,"description":"

This mod will allow you to mount a 3.5\" Waveshare on a Voron 0 so that you can use KlipperScreen.

BOM

3.5\" Waveshare screen
4 M3x6 screws (Fasten front mount to back mount)
2 M3x6 screws (Fasten mount to frame)
2 M3x6 screws (Fasten 2 skirt parts to frame)

NOTE

The parts are in the recommend print orientation.

Installation

I created a wiring harness to connect the following pins from the Pi (I'm using a Pi Zero 2 W) to the display: $\"Image_1\"$
Insert the screen into the front part
Line up the back part and fasten with 4 M3x6 screws
Line up the screw holes on the mount to the nuts in the bottom extrusion of the frame
Fasten the mount with 2 M3x6 screws
Fasten the 2 skirt parts to the frame.
Profit

Images

$\"Image$ $\"Image$ $\"Image$

Also, check out my Voron 0 Wide Stance feet.
