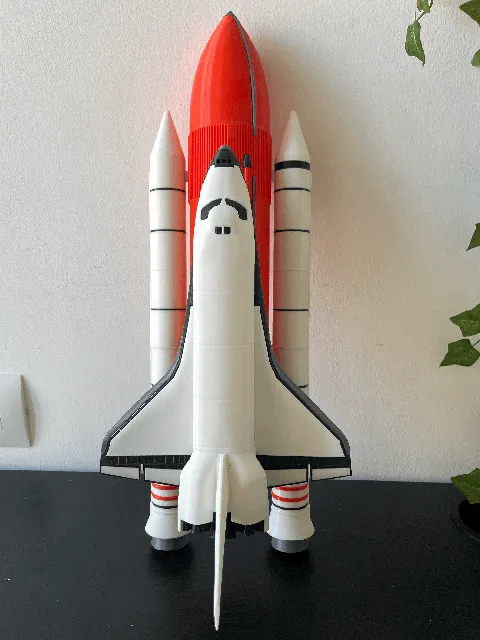

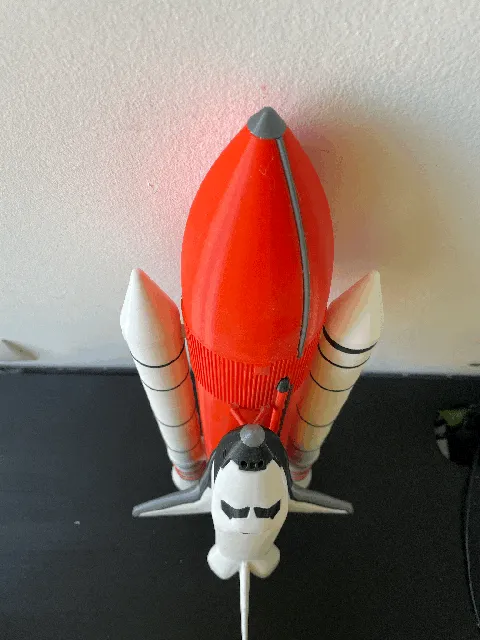

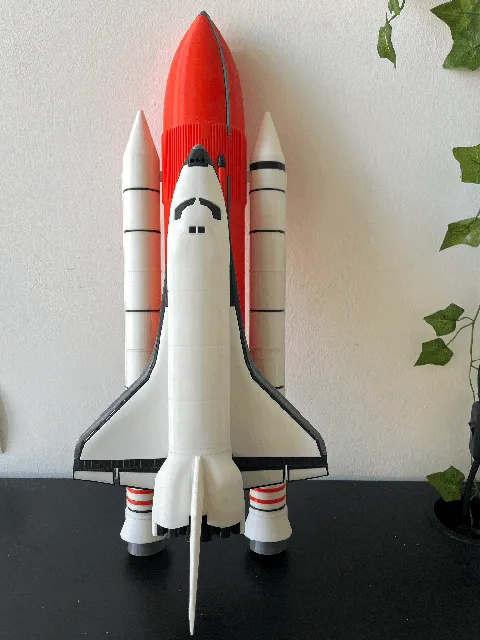

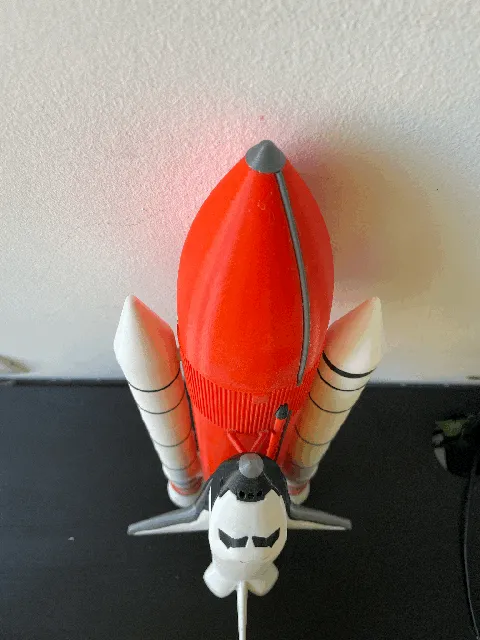

{"data":{"make":{"id":"730962","created":"2023-03-16T10:33:42.056842+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"7","name":"Other","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"192259","handle":"lore_3d_192259","verified":false,"dateVerified":null,"publicUsername":"lore_3d","avatarFilePath":"media/auth/avatars/10/10790f1a-3516-4ea5-8c76-86befc69ebc0.jpeg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"597456","filePath":"media/comment_images/59/f535c2-a4ec-4805-823d-05c386a33389/tempimagefgvqr6.gif","rotation":0,"__typename":"CommentImageType"},{"id":"597459","filePath":"media/comment_images/0f/3fc045-e807-4108-aaeb-73f510878003/tempimageaqh9yj.gif","rotation":0,"__typename":"CommentImageType"},{"id":"597458","filePath":"media/comment_images/4e/91c031-6401-45c7-bbc5-03fbbf62a54f/tempimageklqpzg.gif","rotation":0,"__typename":"CommentImageType"},{"id":"597457","filePath":"media/comment_images/46/1613d3-33cf-4a6b-aab5-45746fbca825/tempimage1cdhgx.gif","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"very cool model I love to print this","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":0,"modelData":{"model":{"id":"213996","ratingAvg":"4.9553072626","ratingCount":179,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"213996","slug":"space-shuttle","name":"SPACE SHUTTLE","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9553072626","myRating":null,"ratingCount":179,"description":"

Support Me

Support my work by subscribing to my Printable club to have access to my new model, my first lander, the Starship V2.

You can also have access to the multi-material version of the Space Shuttle.

Updates

22/11/2023
- Added a better printing and assembly guide.
- New stand that requires less material.
- Rename files.

Description

The Space Shuttle \"Space Transportation System, STS\" model is a highly detailed 1:200 scale reproduction of NASA's historic reusable vehicle that first flew in 1981 for 135 flights.

The model consists of several separately printed parts, which are easy to print and assemble.

The finished model dimensions are approximately 28cm high and 18cm wide for the Space Shuttle.

There are 80 pieces to print ,the total printing time for the entire model is approximately 40 hours.

Choosing your configuration KIT

There are multiple configuration options available for this model, depending on your printing and assembly preferences. (The download files contain what is needed for each configuration.)

We offer 5 configuration for 3 kit:

Kit Fuselage

CutFuselage (CF)

\ud83d\udd3cSmall printer (max. height 14cm)
\ud83d\udd3cEasy to print
\ud83d\udd3dLarge quantity of parts
\ud83d\udd3dLess good finish

Fuselage (F)

\ud83d\udd3cSmall printer (max. height 14cm)
\ud83d\udd3cGood finish
\ud83d\udd3cMedium number of parts
\ud83d\udd3dMedium printing difficulty

FullFuselage (FF)

\ud83d\udd3cSmall printer (max. height 16cm)
\ud83d\udd3cExcellent finish
\ud83d\udd3cSmall quantity of parts
\ud83d\udd3dMajor printing difficulties

Kit Solid Rocket Booster SRB

CutBooster (CB)

\ud83d\udd3cSmall printer (max. height 13cm)
\ud83d\udd3cEasy to print
\ud83d\udd3dMedium number of parts
\ud83d\udd3dLess good finish

FullBooster (FB)

\ud83d\udd3cExcellent finish
\ud83d\udd3cSmall quantity of parts
\ud83d\udd3cEasy to print
\ud83d\udd3dLarge printer (max. height 22cm)

Kit Stand

CutName (CB)

\ud83d\udd3cEasy to print
\ud83d\udd3dLarge quantity of parts

FullName (FB)

\ud83d\udd3cExcellent finish
\ud83d\udd3cSmall quantity of parts
\ud83d\udd3cEasy to print

Other configuration

You can choose to print only the orbiter and use my orbiter support

Assembly and Printing Guide

You can use the assembly guide published on Instructables to help you assemble the Space Shuttle.

Tips

Settings

For infill, 10% is sufficient for a decorative object, and you can also use PrusaSlicer's \"Lightning\" infill settings.
For some parts the supports will be necessary, see the Assembly and Printing Guide.
If some parts are loose or don't fit, you can change the scale by +/- 1% in the slicer to get a better fit.

Printing

For a better final result, I recommend printing the Jonction_Block last so that you can adjust their size according to your print and have a better fit during assembly.

Post Printing

You may need to sand the junction areas between the parts for a smoother finish.
Additionally, I recommend using glue for better strength and durability.
