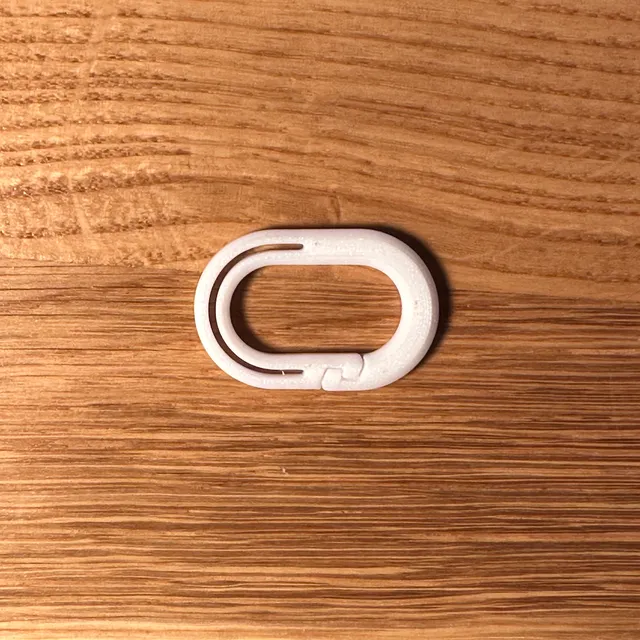

Sturdy carabiner with a simple shape, available in 7 sizes.

Printing Difficulty

4 types of data are available for each size.

For sturdier and more reliable carabiners, it is recommended to print with the [HARD] type.

Having said that, it is best to enjoy this model. It doesn't matter which type you use depending on the condition of your printer.

\u2500\u2500\u2500\u2500\u2500\u2500\u2500\u2500\u2500\u2500
[HARD]
\u2500 CLR 0.20mm. Hard to print, but the joint part can be held firmly in place with snap-fit.

[MEDIUM]
\u2500 CLR 0.25mm. Between [HARD] and [EASY].

[EASY]
\u2500 CLR 0.30mm. Easy to print, but the joint part comes off easily. Probably not compatible with snap-fit.

[SuperEASY]
\u2500 CLR 0.35mm. Please use only if printing with [EASY] is just not going well.
\u2500\u2500\u2500\u2500\u2500\u2500\u2500\u2500\u2500\u2500
*CLR: the clearance at the joint

Print Settings

Nozzle \u2500 0.4mm (For the \u201cNo.4\u201d size, 0.3mm or less is recommended.)
Layer height \u2500 \u2264 0.15mm
Perimeters \u2500 \u2265 3 walls (1.2mm)
Supports \u2500 No

How to Use

This carabiner is designed with priority given to sturdy construction, so it opens only slightly.
It can be opened relatively wide by opening it horizontally and then twisting it vertically.

Sizes

No.* \u2500 external dimension (and width of the ring-line)

No. 4 \u2500 W28.4 x L18.8 x T3.2 mm (4 mm)
No. 5 \u2500 W35.5 x L23.5 x T4.0 mm (5 mm)
No. 6 \u2500 W42.6 x L28.2 x T4.8 mm (6 mm)
No. 7 \u2500 W49.7 x L32.9 x T5.6 mm (7 mm)
No. 8 \u2500 W56.8 x L37.6 x T6.4 mm (8 mm)
No. 9 \u2500 W63.9 x L42.3 x T7.2 mm (9 mm)
No.10 \u2500 W71.0 x L47.0 x T8.0 mm (10 mm)
