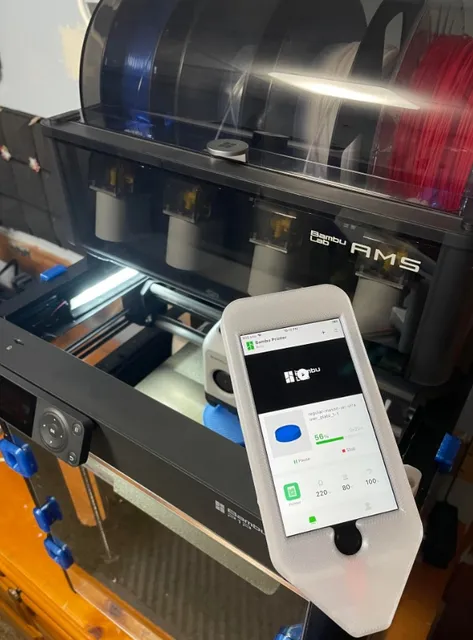

{"data":{"make":{"id":"714529","created":"2023-03-09T04:57:20.211843+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"496","name":"Bambu Lab P1P","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"226977","handle":"Praveen","verified":false,"dateVerified":null,"publicUsername":"Praveen","avatarFilePath":"media/auth/avatars/cd/cd22e76a-52c3-4da3-9d66-172e151607ad.png","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"582047","filePath":"media/comment_images/67/3ef10d-c1ed-491a-971e-e4e1f5ae6100/iphone-stand.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Awesome design, is there a way to access the iPhone camera remotely outside of the network? I installed blink camera to monitor all the printer at once, but the video not clear enough to see the printing.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"415654","ratingAvg":"5.0000000000","ratingCount":5,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"415654","slug":"bambu-labs-p1p-iphone-holder","name":"Bambu Labs P1P iPhone Holder","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":5,"description":"

The P1P is an awesome printer, but the screen sucks! Particularly the numerous menu items you need to jump thru to do anything, not to mention the annoying inability to have a pre-set temperature button(s). The Bambu Handy app solves these issues; so if you have a spare phone (iPhone 6s, 7, 8, SE2-2020, SE3-2023), why not mount it to the printer as a dedicated colour touch screen?

This mount swivels too, so you can use it with your phone camera or simply add more light to the build plate with the phone's flashlight.

The base plate file should print in the \u201cupside down\u201d orientation and requires no supports. It is held very securely in place with a single 4M x 20mm bolt.

The base plate bolt is recommended as using a regular bolt may work loose from the vibrations. Print this simple \u201cbolt\u201d then self/pre-thread with your 4M bolt before assembling.

The iPhone holder should print \u201cface down\u201d and requires support. I HIGHLY recommend using normal(auto) supports- they remove easily and cleanly. If you use tree supports, it will still work, but the surface the phone sits against will be rougher and will cause phone to sit a tad higher making the bezel a tight fit.

The bezel should print face down as well, no supports needed. There's a version with Bambu Labs logo OR one without the logo (just plain).

Remember to go in to \u2018Settings\u2019 and disable automatic dimming as the bezel covers the sensor and will make the phone screen go rather dark if you don't adjust the screen brightness. (Settings> Accessibility> Display & Text Size>Auto-Brightness). You can then go in to Display& Brightness setting and adjust level to your liking.

You can plug the phone in to the onboard USB plug on the P1P, this USB is only powered when the P1P is powered on. This nice channel cover, by 3D Sourcerer, will help keep the USB cable neatly tucked away\u2026 https://www.printables.com/model/396083-bambu-lab-p1p-usb-cable-management-plate

If you like my design and have found it useful, please support my filament addiction- https://www.buymeacoffee.com/skyguy
