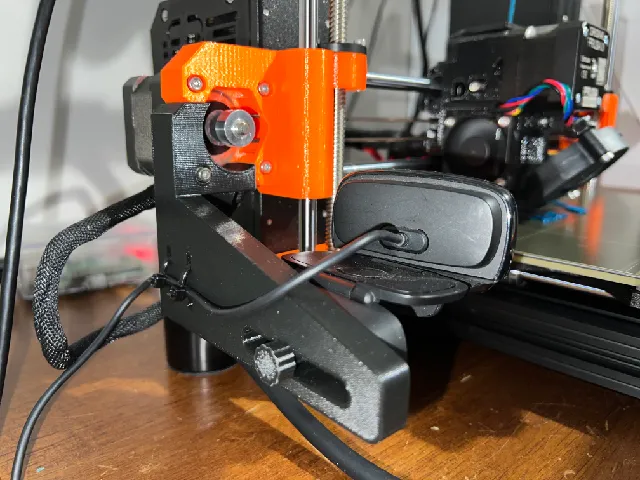

{"data":{"make":{"id":"687391","created":"2023-02-27T03:03:09.552251+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"590904","handle":"tormimz_590904","verified":false,"dateVerified":null,"publicUsername":"tormimz","avatarFilePath":"","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"556896","filePath":"media/comment_images/66/219964-c22a-4ebe-a03a-4e0e42a2cd39/img_0701.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"This was exactly what I needed! Thank you! I had to file down the mount edges a little bit to get it to screw onto the stepper motor of my MK3S+.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"51450","slug":"updated-prusa-i3-mk2s-camera-mount-using-standard-","name":"***UPDATED*** Prusa i3 Mk2S Camera Mount (Using standard tripod mount)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

THIS IS AN UPDATED VERSION OF MY ORIGINAL CAMERA MOUNT FOR THE MK2S

Update includes

Extend Arm to clear the noctua tilted fan upgrade
Camera arm pushed back for a clearer image (Also helps clear the noctua fan)
Brace added to arm to stop image blur from the vibration of the printer
Two arm options a 5mm arm (same as original design) & 10mm arm (as shown in photo for complete rigidity from vibrations)
\n*note the updated stl also have a chamfer to make the joint between the x-axis carriage look neater. I added this after i'd printed the part so doesn't show on my photos.
\n
Description
\n
Webcam mount to monitor prints remotely whilst away from the printer. I've designed this mount to work with any standard tripod screw although the screw will need to be long enough to go through the 5mm or 10mm arm (depending on version printed) prior to to screwing to your camera. I've used a logitech C615 webcam which has tilt, up/down adjustment so you can get the required angle.
\n
There are 4 slots on the bracket which can be used to feed a cable tie or two through to cable manage any excess wire on your camera.
\n
If you prefer the original mount design it can be found here https://www.thingiverse.com/thing:2443129
\n

Print instructions

Category: 3D Printing Summary

THIS IS AN UPDATED VERSION OF MY ORIGINAL CAMERA MOUNT FOR THE MK2S

Update includes

Extend Arm to clear the noctua tilted fan upgrade
Camera arm pushed back for a clearer image (Also helps clear the noctua fan)
Brace added to arm to stop image blur from the vibration of the printer
Two arm options a 5mm arm (same as original design) & 10mm arm (as shown in photo for complete rigidity from vibrations)
\n*note the updated stl also have a chamfer to make the joint between the x-axis carriage look neater. I added this after i'd printed the part so doesn't show on my photos.
\n
Description
\n
Webcam mount to monitor prints remotely whilst away from the printer. I've designed this mount to work with any standard tripod screw although the screw will need to be long enough to go through the 5mm or 10mm arm (depending on version printed) prior to to screwing to your camera. I've used a logitech C615 webcam which has tilt, up/down adjustment so you can get the required angle.
\n
There are 4 slots on the bracket which can be used to feed a cable tie or two through to cable manage any excess wire on your camera.
\n
If you prefer the original mount design it can be found here https://www.thingiverse.com/thing:2443129
\n
Print Settings
\n

Printer Brand:

Prusa

Printer:

i3 MK2S

</div>Rafts:

Supports:

</div>Resolution:

0.2

Infill:

</div>

Notes:

If you decide to print the tripod screw you may want to increase the perimeters and infill density for strength. I used 3 perimeters and 40% infill for the screw.
