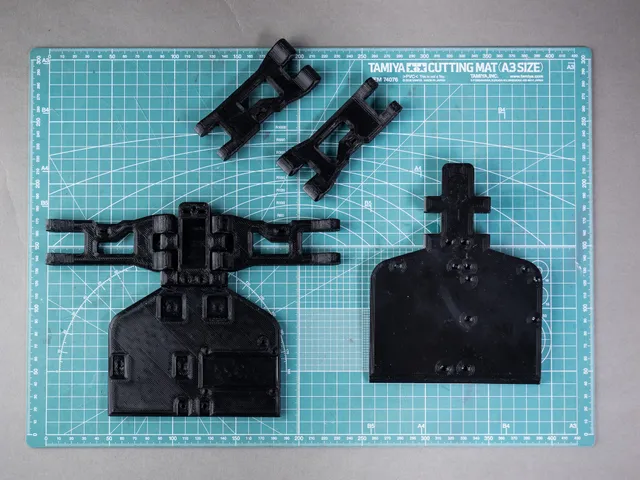

{"data":{"make":{"id":"685041","created":"2023-02-26T10:36:39.459088+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"7","name":"Other","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"198328","handle":"robaki","verified":false,"dateVerified":null,"publicUsername":"robaki","avatarFilePath":"media/auth/avatars/70/70978f95-108a-4fb7-b3b2-1965dbd740eb.png","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"554534","filePath":"media/comment_images/4b/dd914c-e6fe-4dd8-8940-4fb4d05945f8/robak-mod-pack.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I'm gonna use use it for my next Robak 2 build and then we'll see how it performs. \nI really appreciate you taking the time to create and share these files.\nThanks!","rating":5,"likesCount":3,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"385664","ratingAvg":"5.0000000000","ratingCount":2,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"385664","slug":"robak-upgrades-for-v21","name":"Robak Upgrades for v2.1","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

Please leave a like and add it to your Robak collection. I am always happy to collect free filament from Prusa. Thanks and have fun.

Check out my curated spreadsheet with shopping links / prices, order tracking options

Credits for the Robak 2 go to Mr.robaki. He has done an outstanding job, thanks a ton!

And join the discord channel, very nice and friendly community!

Major improvements:

Reinforced Front and Rear Chassis as it broke several times in the very same spot. (for those interested: I just added a pair of 0.4mm slots to the model so the slicer generates perimeters around them ;-) )
PETG does not work well, I highly recommend using PCTG which has much better impact strength.
Remove friction from shock cutout lower arms, shocks can extend fully now. This should be replaced in the original design as it is a design flaw.
Pro-Tip: use Hard TPU for lower arm and PCTG for upper arm (or vice versa). This combo survived some nasty crashes even a store-bought car would not have survived.
Gear Box! Addon fits original design. Not 100% happy with durability, but it surely works.
Towers with extensions for off-the-shelf body (Provided by @Machhin)
Print towers with HARD TPU (Extrudr for example). Basically unbreakable)

Minor upgrades / tweaks

Topdeck.Body2: Added hole for RC antenna
Chassis.Body1&Body2 Batterymount.Body1&Body3: Added hole for battery mount reinforcement (backward compatible)
Motorplate.Body1: Decrease hole for big bearing to 10.1mm (fits 5*10*4 bearings)
Motorplate.Body1: Decrease hole to 3.4 (Clearance Hole Size Medium Fit as per https://engineersbible.com/clearance-hole-metric/)
Towers: Remove friction from shock tower standoff (INJORA 100mm shocks affected, maybe others too?!)
Diffgears screw-direction swap and labels Front RL and Rear RL (as we built 4 out of 4 the \"wrong\" way around / CW direction)
Re-located square nuts on servo mount to the inside for easier assembly
Added cut-out for 3010 motor cooling fan (I prefer a different fan though, easier to mount, cheaper, works for most 3650/60 motors but not Rocket V2)

","category":{"id":"64","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"64","name":"RC & Robotics","nameEn":"RC & Robotics","description":"Huge selection of Arduino robotic arms, F1 cars, drones, tanks, airplanes, trucks, and other RC models, plus robotic prints for beginners and advanced users.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-04-21T07:25:07.116016+00:00","firstPublish":"2023-02-01T10:45:30.292983+00:00","datePublished":"2024-04-21T07:25:07.087572+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Addons and improvements of the great RC Car Robak.","likesCount":94,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":375,"displayCount":3504,"filesCount":24,"privateCollectionsCount":65,"publicCollectionsCount":68,"pdfFilePath":"media/prints/385664/pdfs/385664-robak-upgrades-for-v21-f8d12289-9670-4200-8a0e-fa3acb7a901f.pdf","commentCount":10,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1560633","filePath":"media/prints/385664/images/3233946_e7e6caaa-a6f2-4c3c-a1c9-829681b6fe49/whats-new.png","rotation":0,"imageHash":"sggOFYK4p3i4R3h/hmiVhiVXUJMG","imageWidth":837,"imageHeight":595,"__typename":"PrintImageType"},"images":[{"id":"1560633","filePath":"media/prints/385664/images/3233946_e7e6caaa-a6f2-4c3c-a1c9-829681b6fe49/whats-new.png","rotation":0,"imageHash":"sggOFYK4p3i4R3h/hmiVhiVXUJMG","imageWidth":837,"imageHeight":595,"__typename":"PrintImageType"},{"id":"1559539","filePath":"media/prints/385664/images/3231187_218d246a-207b-4762-b613-b2394d3029aa/20230201_114406.jpg","rotation":0,"imageHash":"nRgKDIL19mqOiIaKdXlMYMwF9g==","imageWidth":4032,"imageHeight":2268,"__typename":"PrintImageType"},{"id":"1560280","filePath":"media/prints/385664/images/3233204_eb76cc2f-1f71-475e-bd5c-c32c7ad95b36/20230201_112526.jpg","rotation":0,"imageHash":"GQgOJgh5hPh3l0eIqINod4iH13l/fvc=","imageWidth":561,"imageHeight":687,"__typename":"PrintImageType"},{"id":"1560281","filePath":"media/prints/385664/images/3233205_374c6297-597f-4837-9daf-8ab321ae1f9f/20230201_112532.jpg","rotation":0,"imageHash":"WCkKR4iWeYhvlYk/Z3ipJXmI9U2qqqAM","imageWidth":2268,"imageHeight":2170,"__typename":"PrintImageType"},{"id":"1560282","filePath":"media/prints/385664/images/3233206_239111de-81cb-4bd5-9fa4-c45bfbeb6923/20230201_112536.jpg","rotation":0,"imageHash":"F0oGNghHd/aHlod3eHiFd3dIA0JUB2Q=","imageWidth":2268,"imageHeight":2473,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"rccar","id":"8186","__typename":"TagType"},{"name":"robak","id":"71506","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1686662","filePreviewPath":"media/prints/385664/stls/3231184_c2a040f2-5422-4ba9-a03f-87e90430ae2c/chassisfrontreinforced_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"203655","modelId":"119715","modelName":"Robak 2 RC Car","modelAuthor":{"id":"198328","handle":"robaki","verified":false,"publicUsername":"robaki","__typename":"UserType"},"model":{"id":"119715","name":"Robak 2 RC Car","slug":"robak-2-rc-car","datePublished":"2024-06-21T22:55:08.618734+00:00","image":{"id":"2614940","filePath":"media/prints/119715/images/5577918_1c7e17e3-9a44-4841-aa10-e7b4d983dae7_7157fef7-aff0-4606-947a-60ee04f69020/robak2.jpeg","rotation":0,"imageHash":"GAgKDYKuhLfpd3a6aQW7Zxx/y2EI","imageWidth":1920,"imageHeight":1441,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Modpack with improvements and addons for Robak V2.1.
I don't know if compatible with releases later than V2.1
