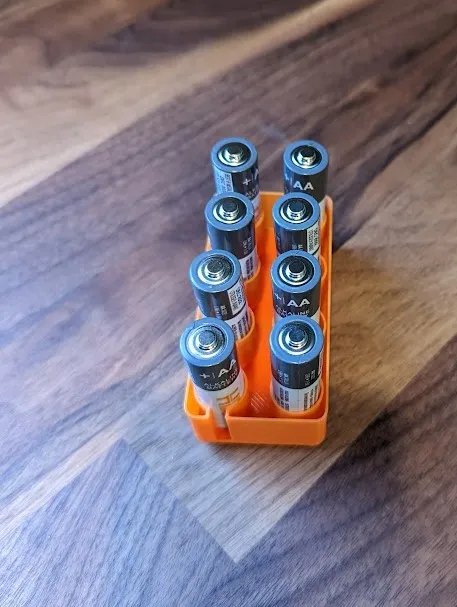

{"data":{"make":{"id":"668542","created":"2023-02-18T18:28:58.732077+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"102","name":"Creality Ender 5","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"148945","handle":"crealitycheck_148945","verified":false,"dateVerified":null,"publicUsername":"crealitycheck","avatarFilePath":"","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"538859","filePath":"media/comment_images/8c/4b7c5b-e02a-4ef1-8607-8247854d744a/pxl_20230218_173725704.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Very easy print. Printed at .3mm layer height and 18 bottom layers using a .6mm nozzle.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"246915","ratingAvg":"4.8888888889","ratingCount":18,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"246915","slug":"battery-box-aa-gridfinity-vasemode-15-different-si","name":"Battery Box - AA - Gridfinity - Vasemode - 15 different sizes","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8888888889","myRating":null,"ratingCount":18,"description":"

Object description:

This battery holder fits to the Gridfinity System.

The provided sizes are from 1x1 up to 5x5 segments. So you can store a maximum of 144 batteries, if you really want.

Update 2024-02-24:

Corrected models uploaded. Thanks again to messy for your comment.

Update 2024-02-24:

Something has gone wrong with the new files. I have it removed and will publish correct ones as soon as possible. Sorry for any inconvenience.

Update 2024-02-23:

Added versions with sideplugged magnets

Update 2023-10-14:

Added comment to support in print settings.
Added document \u201cGridfinity - an example comparison of weight and printing time.pdf\u201d.

Comments:

The boxes can be printed in vasemode. My recommendation is using at least a 0,6mm nozzle, better a 0,8mm nozzle.

Make sure, that you print as many bottom layers as you need for at least 5,4mm bottom height.

The overall height is slightly higher than actually necessary. Shortening is much easier than lengthening. I recommend shortening the overall height to 21 mm.

You can secure blocks permanently with M3 countersunk screws, or temporarily with 6x2mm magnets.

If you are looking for the AAA-size version, you can download it here: https://www.printables.com/de/model/246712-battery-box-aaa-gridfinity-vasemode-15-different-s

The version for 9V-batteries you can download here:

https://www.printables.com/de/model/429965-battery-box-9v-gridfinity-vasemode-15-different-si

Print settings:

Material: PLA, PETG or ABS/ASA.

Layer height: 0,4mm

Nozzle diameter: 0,8mm

Vasemode: yes

Brim: no

Support: paint on support for the magnet holes recommended

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-02-28T17:12:44.823616+00:00","firstPublish":"2022-07-24T10:19:50.310091+00:00","datePublished":"2024-02-28T17:12:44.792228+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Battery Box - for AA size - fits to Gridfinity system - can be printed in vasemode","likesCount":241,"makesCount":22,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":1641,"displayCount":6098,"filesCount":31,"privateCollectionsCount":265,"publicCollectionsCount":262,"pdfFilePath":"media/prints/246915/pdfs/246915-battery-box-aa-gridfinity-vasemode-15-different-sizes-7ed323dd-d5bb-4995-a6b8-6eae68e6662a.pdf","commentCount":31,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2844316","filePath":"media/prints/246915/images/6093472_26061092-7835-4925-951b-129842609c39_88f3b1ed-1277-4bef-bd1a-82fd7f78047f/gridfinity-aa-battery-holder-presentation.jpg","rotation":0,"imageHash":"S+cJLYZHd4eFd4dweaiHhMeIf434","imageWidth":10029,"imageHeight":7522,"__typename":"PrintImageType"},"images":[{"id":"2844316","filePath":"media/prints/246915/images/6093472_26061092-7835-4925-951b-129842609c39_88f3b1ed-1277-4bef-bd1a-82fd7f78047f/gridfinity-aa-battery-holder-presentation.jpg","rotation":0,"imageHash":"S+cJLYZHd4eFd4dweaiHhMeIf434","imageWidth":10029,"imageHeight":7522,"__typename":"PrintImageType"},{"id":"2816826","filePath":"media/prints/246915/images/6037628_333dd4be-daff-4b3f-8121-39acab7699f4_f2df9b0a-01c0-4e71-87aa-c38b9a58423c/gridfinity-aa-batterie-photo.jpg","rotation":0,"imageHash":"FggGDYKEeYefd3iGeYh3eWWPY/po","imageWidth":1613,"imageHeight":1210,"__typename":"PrintImageType"},{"id":"1097250","filePath":"media/prints/246915/images/2223800_47bc91ce-b771-4cac-ac98-a3fa50da1e16/gridfinity-3x2-aa-batterie-photo.jpg","rotation":0,"imageHash":"0zgCJYgXWGeQiHiAhniIdDeHcGMI","imageWidth":948,"imageHeight":706,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"battery","id":"1973","__typename":"TagType"},{"name":"vasemode","id":"2694","__typename":"TagType"},{"name":"aabatteryholder","id":"7822","__typename":"TagType"},{"name":"batterycase","id":"9954","__typename":"TagType"},{"name":"batteries","id":"13135","__typename":"TagType"},{"name":"batterytray","id":"14459","__typename":"TagType"},{"name":"batterie","id":"27978","__typename":"TagType"},{"name":"vasenmodus","id":"72468","__typename":"TagType"},{"name":"gridfinity","id":"76163","__typename":"TagType"},{"name":"aabatteriycase","id":"97698","__typename":"TagType"},{"name":"batteryaa","id":"97699","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1137868","filePreviewPath":"media/prints/246915/stls/2223810_1fe873f9-50c6-4e2e-9ff8-d1933e0b7da6/gridfinity-1x1-aa-batterie_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"415458","modelId":"246712","modelName":"Battery Box - AAA - Gridfinity - Vasemode - 15 different sizes","modelAuthor":{"id":"175315","handle":"JBoe","verified":false,"publicUsername":"JBoe","__typename":"UserType"},"model":{"id":"246712","name":"Battery Box - AAA - Gridfinity - Vasemode - 15 different sizes","slug":"battery-box-aaa-gridfinity-vasemode-15-different-s","datePublished":"2024-02-28T19:09:20.777288+00:00","image":{"id":"2844838","filePath":"media/prints/246712/images/6094449_01cf0de6-9abc-4998-b8af-2ab53f563d07_140e8337-29ac-4875-86ae-3fc4ab5f5329/gridfinity-aaa-battery-holder-presentation.jpg","rotation":0,"imageHash":"S+cJJYZHd4eGd4dweaiHhMeIf434","imageWidth":10029,"imageHeight":7522,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"3","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

The design has been changed from AAA- to AA batteries.
