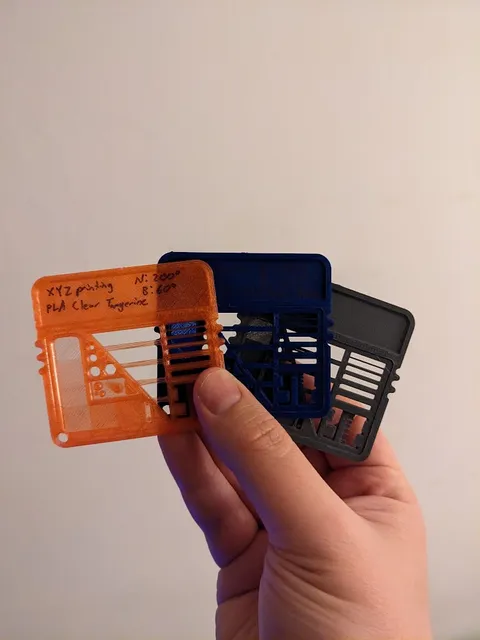

{"data":{"make":{"id":"651270","created":"2023-02-10T15:00:12.726583+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"247","name":"Voxelab Aquila","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"569604","handle":"JeremyJones_569604","verified":false,"dateVerified":null,"publicUsername":"Jeremy Jones","avatarFilePath":"media/auth/4c7114cf-0b46-4683-a147-d32c7483a20c.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"522069","filePath":"media/comment_images/c9/2751ad-b24c-414b-8a58-164891251f4f/pxl_20230210_011955768.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Handy design. I like the label space you added","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"339038","ratingAvg":"5.0000000000","ratingCount":11,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"339038","slug":"mini-all-in-one-printer-test-with-label-remix","name":"Mini All-In-One Printer Test with Label Remix","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":11,"description":"

I have added a label portion to the \u201cMini All-In-One Printer Test\u201d with some additional features. Besides the small hole in the bottom left corner I\u2019ve not changed the original tests. So all measurement\u2019s and descriptions are still the same, check out the original description for details.

The top portion is changed, so you may add easy text via the text feature in the slicer. Emboss or engrave it or simply write something with a marker on it.

Details of the Label Part:

The left, right and top inner corners of the label are chamfered and the bottom on is a fillet.
The outsides/boarders have small details to have additional tests if you print smaller then 0.2mm l.hight. With 0.2mm l.hight they are barely useable.
There is a \u201druler\u201d feature on X and Y to get a hint if some ghosting/ringing is present.
But at the end I remixed it only to have a label, so please see this features just as a nice to have. I personally iron the top most layer to have a additional test on one card.

Thanks Ty10y for the original design!

Happy printing!

Edit: Check out the Skadis-Display.
