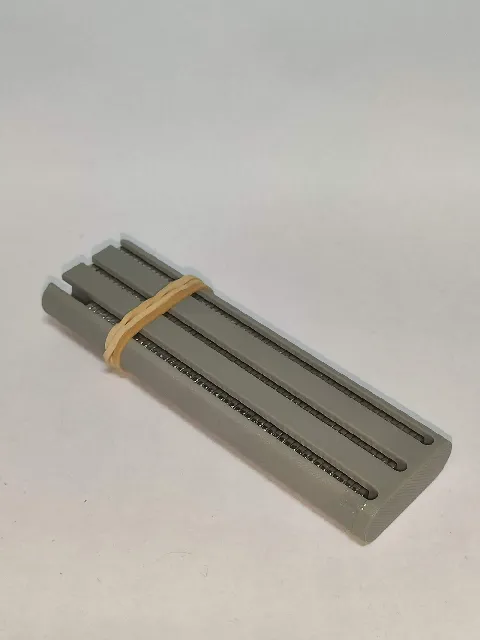

I bring to your attention my version of holders for magnets. Such holders are easy to print, it is convenient to store and remove magnets one by one in them.
In addition to the printed parts, you will need rubber bands for money and screws.
I originally planned to put a lid on each holder, but a rubber band works much better.
5 magnet diameters: 5, 6, 8, 10 and 15 mm.
For 5, 6 and 8 mm magnets, use M3 screws. For 10 and 15 mm - M5.
Each model can hold from one to four stacks of 100 mm high magnets.
If you are printing a holder not in reserve, but for a specific number of magnets, then measure the height of your magnets. Then cut off the top of the model in a slicer, leaving only the height you need.
The lower part of the holder for 5, 6 and 8 mm magnets is 5 mm.
The lower part of the holder for 10 and 15 mm magnets is 7 mm.
Those if you have a stack of magnets with a diameter of 8 mm equal to 180 mm, then you can print:
Double holder 95 mm high (180/2+5)
Triple holder 65 mm high (180/3+5)
or quadruple holder 50 mm high (180/4+5)
If you use magnets of other diameters or rectangular ones, then I think you can easily draw similar holders for your size.

PS
Sorry about the models being drawn upside down. You will have to flip them after adding them to the slicer.
