A remix of the model Filament sample with box from Zahg.

If you need the case for the samples, in the original model includes a great one.

Direct downloadlinks for case: box_top_pla_v2.stl, box_top_petg_v2.stl, box_top_v2.stl and box_bottom_v2.stl.

My gcode is linked here for double colourchange to get different colour of the letters but not at the edge.

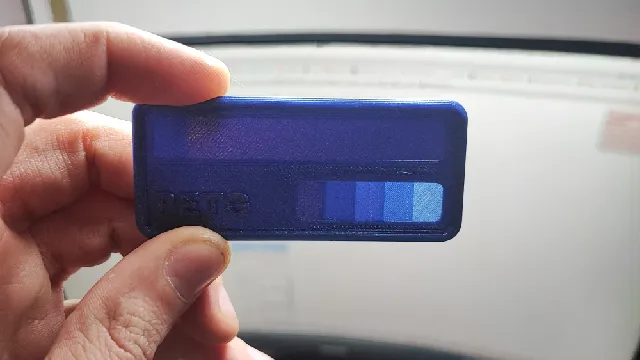

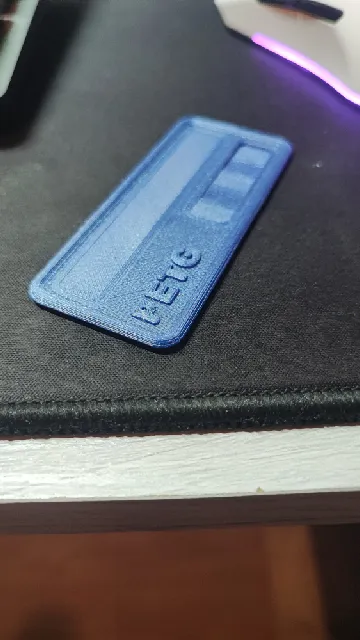

The model has five steps of varying thicknesses 0.2/0.4/0.6/0.8/1.0 mm to better judge the translucency.

Every sample uses just 1.41 m or 3,54 g of filament. The dimensions are 80.0 x 35.0 x 2.2 mm.

I added quit a few materials and hope i got all common and uncommon ones:

ABS
ABS GF
ABS MATT
ABS photoluminescent
ABS thermochromic
ABS+
ASA
ASA CF
ASA GF
Biofusion
BVOH
carbon
CPE
Easy PLA
edge
ESD ABS
ESD PETG
ESD PLA
Flex
Galaxy PLA
HDPE
HIPS
HTPLA
LW-PLA
metal
metallic PLA
ngen
nylon
obc
PA6
PA6 CF
PA6 GF
PA11 CF
PA12
PA12 CF
PA12 GF
PATH-CF
PC
PCblend
PCblend CF
PCTG
PEI
PET
PET-CF
PETG
PETG+
PETG CF
PETG GF
PETG Glitter
PETG HF
PETG MATT
PETG photoluminescent
PETG Sparkle
PETG Stone
PETG thermochromic
PETT
PEKK
PLA
PLA+
PLA+ 2.0
PLA-CF
PLA Glitter
PLA HS
PLA MATT
PLA meta
PLA photoluminescent
PLA PRO
PLA Sparkle
PLA Stone
PLA thermochromic
PLA Ultra
PP
PVA
PVA+
PVB
PVDF
RESIN
rPETG
rPLA
Shimmer PLA
silk
silk PLA
Silk PLA+
simubone
stone
tough pla
TPU
wood

Print Settings

Resolution: 0.2 mm

UPDATE 2022.09.03: Added common filamentsamples with a 13 mm high labeling field

UPDATE 2022.10.28: Added RPLA

UPDATE 2022.11.14: Added ABS+

UPDATE 2022.12.18: Added SILK and SILK PLA

UPDATE 2022.12.27: Added rPLA

UPDATE 2023.02.14: Added PETG+

UPDATE 2023.03.12: Added PLA Meta

UPDATE 2023.04.06: Added Tough PLA

UPDATE 2023.04.06: Changed folder structure

UPDATE 2023.04.18: Added metallic PLA

UPDATE 2023.08.17: Added PAHT-CF, PET-CF, PETG-CF, PLA-CF and PLA HS

UPDATE 2023.08.24: Added PLA MATT and ABS MATT

UPDATE 2023.08.29: Added Silk PLA+

UPDATE 2023.08.29: Added Resin and one without text (blank)

UPDATE 2023.10.14: Added PLA PRO

UPDATE 2023.10.14: Added PLA Stone, PETG Stone, photoluminescent (PLA. PETG, ABS), thermochromic (PLA. PETG, ABS)

UPDATE 2023.11.25: Added PLA Glitter, PETG Glitter, PLA Sparkle, PETG Sparkle

UPDATE 2023.12.29: Added PCTG

UPDATE 2024.03.20: Added rPETG and PETG GF

UPDATE 2024.06.07: Added Shimmer PLA and Easy PLA

UPDATE 2024.08.13: Added PETG HF

UPDATE 2024.09.18: Added ABS GF

UPDATE 2024.12.27: Added PETG MATT, LW-PLA, PVA, PVA+

UPDATE 2025.07.19: Added ASA CF, ASA GF and PLA+ 2.0

UPDATE 2025.08.28: Added Galaxy PLA, PLA Ultra

","category":{"id":"12","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"12","name":"Test Models","nameEn":"Test Models","description":"Print test objects to verify the capability of your printer: temp tower, calibration cube, and bridging test, or Bed Level correction tool for advanced users.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-08-28T09:21:46.745468+00:00","firstPublish":"2022-08-29T11:32:38.257649+00:00","datePublished":"2025-08-28T09:21:46.713367+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Remix: I changed the steps from three to five with uniform height difference and added more materials.","likesCount":10178,"makesCount":659,"liked":null,"printDuration":"0.29","numPieces":3,"weight":"4.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"},{"id":"8","name":"PET","__typename":"MaterialTypeType"},{"id":"3","name":"ASA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":23638,"displayCount":96496,"filesCount":101,"privateCollectionsCount":7911,"publicCollectionsCount":4744,"pdfFilePath":"media/prints/228249/pdfs/228249-filament-samples-42-materials-f4325a1b-764c-425b-8a55-bdc765c716c7.pdf","commentCount":781,"userGcodeCount":1,"remixCount":30,"canBeRated":false,"addMakePermission":null,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"1175110","filePath":"media/prints/228249/images/2385157_730aedea-1845-4bdf-8eed-1edaeb965922/img_1370b.jpg","rotation":0,"imageHash":"VvgJDYonl5iIWXmQill4ejhPfvdn","imageWidth":5184,"imageHeight":3456,"__typename":"PrintImageType"},"images":[{"id":"1175110","filePath":"media/prints/228249/images/2385157_730aedea-1845-4bdf-8eed-1edaeb965922/img_1370b.jpg","rotation":0,"imageHash":"VvgJDYonl5iIWXmQill4ejhPfvdn","imageWidth":5184,"imageHeight":3456,"__typename":"PrintImageType"},{"id":"1175108","filePath":"media/prints/228249/images/2385156_e69a670b-6dd1-4130-837c-a3aec9fc8afe/img_1368.jpg","rotation":0,"imageHash":"U/gFDYYJbEeJhoihXTipeRh8n/i1","imageWidth":5184,"imageHeight":3456,"__typename":"PrintImageType"},{"id":"1175109","filePath":"media/prints/228249/images/2385158_f97d6f64-71ce-4a86-a896-c091f964ea61/img_1371.jpg","rotation":0,"imageHash":"WAgGDYQLdIeKZoV7acVYivFmNe9G","imageWidth":5184,"imageHeight":3456,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"filament","id":"303","__typename":"TagType"},{"name":"swatch","id":"3290","__typename":"TagType"},{"name":"filamentsample","id":"4922","__typename":"TagType"},{"name":"colour","id":"4955","__typename":"TagType"},{"name":"filamentswatch","id":"9591","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"961645","filePreviewPath":"media/prints/228249/stls/2079929_f333e716-26e4-41f1-837e-9dbc628de39f/pla_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"415398","modelId":"16322","modelName":"Filament sample with box","modelAuthor":{"id":"9517","handle":"Zahg","verified":false,"publicUsername":"Zahg","__typename":"UserType"},"model":{"id":"16322","name":"Filament sample with box","slug":"filament-sample-with-box","datePublished":"2024-11-15T11:17:34.498294+00:00","image":{"id":"78606","filePath":"media/prints/16322/images/155534_47a4c215-40aa-45af-b8ed-238453056676/img_1871_16322.jpg","rotation":0,"imageHash":"2CgKFIRcZ4eAiIh8doIQfAmyZw==","imageWidth":4007,"imageHeight":2566,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"1","name":"Creative Commons \u2014 Attribution","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"415399","modelId":"62374","modelName":"PLA+ filament sample card","modelAuthor":{"id":"121968","handle":"PumpkinSouffle","verified":false,"publicUsername":"PumpkinSouffle","__typename":"UserType"},"model":{"id":"62374","name":"PLA+ filament sample card","slug":"pla-filament-sample-card","datePublished":"2021-04-03T22:47:52.201797+00:00","image":{"id":"327203","filePath":"media/prints/62374/images/652457_05c9f959-fabd-4585-9b73-8417803b5237/esun-pla-filament-sample-card.jpg","rotation":0,"imageHash":"VlsKLQJwdYGbaIW2d4iYd1BBJLMG","imageWidth":1944,"imageHeight":2592,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"7","name":"Creative Commons \u2014 Public Domain","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"415400","modelId":"103175","modelName":"Additional cards for Filament sample with box","modelAuthor":{"id":"80146","handle":"mweisshaupt","verified":false,"publicUsername":"mweisshaupt","__typename":"UserType"},"model":{"id":"103175","name":"Additional cards for Filament sample with box","slug":"additional-cards-for-filament-sample-with-box","datePublished":"2021-12-22T22:13:47.304127+00:00","image":{"id":"538198","filePath":"media/prints/103175/images/1035652_cc07f9d3-61ac-4629-a848-2334487f068a/img_20211222_230927.jpg","rotation":0,"imageHash":"ZAgKFIJkeUaAeYd4hnf3dnt/qA==","imageWidth":3840,"imageHeight":2160,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"7","name":"Creative Commons \u2014 Public Domain","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Remix: I changed the steps from three to five with uniform height difference and added more materials.
