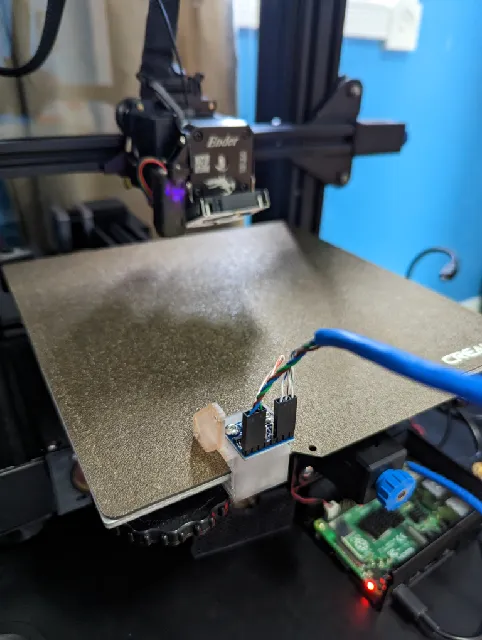

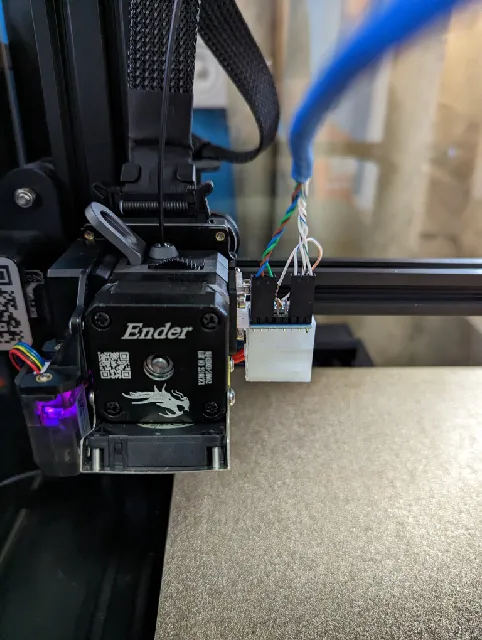

{"data":{"make":{"id":"617290","created":"2023-01-26T18:00:08.046734+00:00","edited":"2023-01-30T00:47:53.708650+00:00","deleted":null,"isMake":true,"printer":{"id":"130","name":"Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"280389","handle":"KieranE","verified":false,"dateVerified":null,"publicUsername":"Kieran E","avatarFilePath":"media/auth/avatars/09/0928dd88-e349-4f99-b2ca-9ce8c69d51e7.jpg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"488101","filePath":"media/comment_images/d4/a3c68c-c8b5-48fc-b646-c3165849b088/pxl_20230125_200110770.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"488100","filePath":"media/comment_images/b4/5ed7c6-a1eb-41ee-b39f-0a7471ad93bb/pxl_20230125_194340021.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Worked really well! Ignore the wire coming off my accelerometer - it arrived with a capacitor knocked off so I had to perform a bit of a bodge","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"267008","ratingAvg":"4.8461538462","ratingCount":13,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"267008","slug":"ender-3-s1-adxl345-sprite-adapter","name":"Ender 3 S1 ADXL345 Sprite Adapter","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8461538462","myRating":null,"ratingCount":13,"description":"

This design is an adapter for the ADXL345 Accelerometer to be mounted on the Creality Sprite Extruder of the Ender 3 S1.

There are two versions of the adapter:

The first version requires 4 M3 inserts, 2 for mounting the ADXL and 2 for attaching the adapter to the bed.

The second one does not require M3 inserts but you will need a clip to fix the sensor to the bad.

As screws, you will need 2 8mm M3 screws that you will use to attach the adapter to the extruder and the bed and other 2 M3 screws to mount the accelerometer on the adapter.

I also included a small spacer that should be used to avoid the screws are going to touch the bed directly and ruining it.

PLA is generally fine but could happen that if you tighten too much the bed screws the piece could fail.
Avoid tightening too much the screw or if you have PETG could be a good idea to print it with PETG

PS As every good Italian I appreciate a good coffee so if you find the project useful here a link to offer me a good one!
https://ko-fi.com/harrypulvirenti

","category":{"id":"135","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"135","name":"Creality Parts & Upgrades","nameEn":"Creality Parts & Upgrades","description":"Free parts and upgrades for your Creality 3D printer!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-08-31T17:28:31.551811+00:00","firstPublish":"2022-08-27T15:44:01.749045+00:00","datePublished":"2023-08-31T17:28:31.499139+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"This design is an adapter for the ADXL345 Accelerometer to be mounted on the Creality Sprite Extruder of the Ender 3 S1.","likesCount":157,"makesCount":18,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":1084,"displayCount":8384,"filesCount":4,"privateCollectionsCount":117,"publicCollectionsCount":94,"pdfFilePath":"media/prints/267008/pdfs/267008-ender-3-s1-adxl345-sprite-adapter-0cd9114f-47fd-46bd-a179-734e2b901dd7.pdf","commentCount":31,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1171442","filePath":"media/prints/267008/images/2377311_54ce6274-f590-4278-aac9-698419503552/20220826_191727.jpg","rotation":0,"imageHash":"WRgSBQCWl293iGiIaXh4Zvlsb/22","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},"images":[{"id":"1171442","filePath":"media/prints/267008/images/2377311_54ce6274-f590-4278-aac9-698419503552/20220826_191727.jpg","rotation":0,"imageHash":"WRgSBQCWl293iGiIaXh4Zvlsb/22","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"1171441","filePath":"media/prints/267008/images/2377312_12872cdf-9509-4a2b-b86c-69e61e6a20a1/20220826_192213.jpg","rotation":0,"imageHash":"XRgSDQKviHeIx2h2mHiWh79n+2vF","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"}],"imagesCount":2,"tags":[{"name":"accelerometer","id":"3417","__typename":"TagType"},{"name":"adxl345","id":"37207","__typename":"TagType"},{"name":"adxl345mount","id":"45090","__typename":"TagType"},{"name":"ender3s1","id":"60679","__typename":"TagType"},{"name":"crealityender3s1","id":"83034","__typename":"TagType"},{"name":"crealityender3s1pro","id":"88579","__typename":"TagType"},{"name":"ender3s1pro","id":"89574","__typename":"TagType"},{"name":"spriteextruder","id":"93814","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1213571","filePreviewPath":"media/prints/267008/stls/2377309_e2d69b44-c78d-4549-bd89-fbdaece80863/ender-3-s1-adxl345-adapter_preview.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"313878","handle":"EnricoPulvirenti","verified":false,"dateVerified":null,"publicUsername":"Enrico Pulvirenti","avatarFilePath":"media/auth/be24a5cb-a66c-4582-a8c2-7df6b5796b80.jpg","badgesProfileLevel":{"profileLevel":17,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Ender 3 S1 ADXL345 Sprite Adapter

Ender 3 S1 ADXL345 Sprite Adapter
