Update: 10_08_25 Uploaded 510 Volcano duct step file

Update: 05\\04\\22 Replaced: WIP_Direct Drive Head Ender 3 Orbiter V2 no Upstand V2_1 as the original conflicted with the mounting plate.

Update: 25\\01\\22 The V1_1 Orbiter Mounts had incorrect fixing centres for the V1.5 Orbiter so I have uploaded V1_2 (+ step files)for both tool heads to correct this error.

Update: 12_01_22 Uploaded Tool Head mounts for the Orbiter V2 Extruder. They are both definitely WIP, I do not own a Orbiter V2 and are based on the CAD models.

Update:18\\10\\21 Uploaded some 5010 fan ducts which are 8.5mm longer to allow for a Volcano Hot End. These are definitely WIP. I have not printed, installed or produced any CFD simulations at this time. The parts are extended at the duct so the standard base and support arms should work with these parts. I stress very much work in progress.

Uploaded images of CFD simulation testing

Update:31\\08\\21 Noticed a very very slight discrepancy with the Duct Base for the V1 hole centres, only 0.15mm which the hole tolerance should allow but tweaked them and uploaded anyway.

Update: 30\\08\\21 Uploaded additional Direct Drive Heads for the Sherpa Mini & Orbiter with WM upstands and rear fixing for the Mini (see uploaded images). Updated the BMG Direct Drive due to miss alignment with the filament path.

This is a remix of my Manta Compact Cooling Fan System. This version is not compatible with the Ender5. The Ender 5 version can be found here: Manta MK2 Duct & Tool Head System Ender 5 Version by boothyboothy | Download free STL model | Printables.com

This Remix includes:

1.Reduced system parts list from 67 down to just over 20 parts

2.There is now only one universal duct base for all variants including V1 & V2 versions, all fans, hot ends and tool head types. This will hopefully reduce user confusion when selecting relevant parts.

3.The parts have been optimised further for faster printing and stronger print orientation.

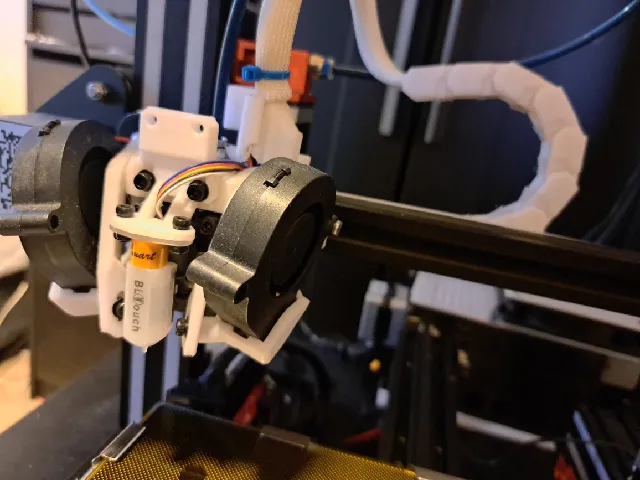

4.Includes two work in progress BL Touch mounting brackets. Although I own various levelling sensors I rarely use them. Therefore the included brackets are a WIP starting position for others to develop for their own personal requirements. I have not tested either of these parts.

5.V6 style hot ends now mount from the front allowing easier maintenance and swap over.

6.Bowden and Direct Drive assemblies can be swapped out without removing the Duct Base from the gantry mount.

7.Integrated, mechanically fixed fan shrouds for both the Stock & V6 style Hot Ends.

8.Improved the 4010 fan output via larger apertures which have reduced air restriction further..

Brief Video in action here: https://youtu.be/jBxMxrer-ss

Installation

1.I have uploaded an Installation guide and BOM. I have also included Fusion & step files for any bespoke tweaks or remixes.

2.I have found that the upper left thread stand off on the Ender 3 mounting plate can vary between units. I had to drill out the stand off on 2 units to fix the relevant bolt. The Duct base should have sufficient location with the other 3 bolts if you do not wish to do this. I have based my design on the original Creality step files for the V1 and measurements from my my own V2 as a base for the design.

3.I have used a slightly smaller Heat Sets\\ Thermal Inserts in this thing because some of the remaining\\retaining walls were quite small. Therefore I have included a 4.25 ID hole x 5mm deep for a 5mm OD x 5mm long M3 Heat Set.

4.Heat Sets used (Amazon UK): https://www.amazon.co.uk/gp/product/B01GO4O0OW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

5.Which fans? I usually use a ball bearing based fan rather than a hydraulic fan, they tend to last longer.

https://www.amazon.co.uk/gp/product/B07DB6132Q/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

https://www.amazon.co.uk/gp/product/B07DB59XP8/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

https://www.amazon.co.uk/WINSINN-Turbine-40x10mm-Brushless-Bearing/dp/B07RNPJ1YS/ref=sr_1_7?crid=3JYCYIXTSSQ9W&dchild=1&keywords=4010+fan+24v&qid=1631619142&qsid=258-6274311-6130410&s=computers&sprefix=4010%2Ccomputers%2C163&sr=1-7&sres=B07L2WTH7H%2CB087TG5KH4%2CB07B7GBYPR%2CB07RNPJ1YS%2CB07R97Z

Printing:

1.Only the Rear Mounting Plate requires slicer support. There are however, various integrated supports and sacrificial layers that will require cleaning off after printing (refer to the Installation Guide and the Part Preparation section).

2.All parts were printed with PETG, 30 to 40% infill with 3 perimeters.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Supports:

Resolution:

200

Infill:

Filament: PolyMaker PETG

Category: 3D Printer Parts
