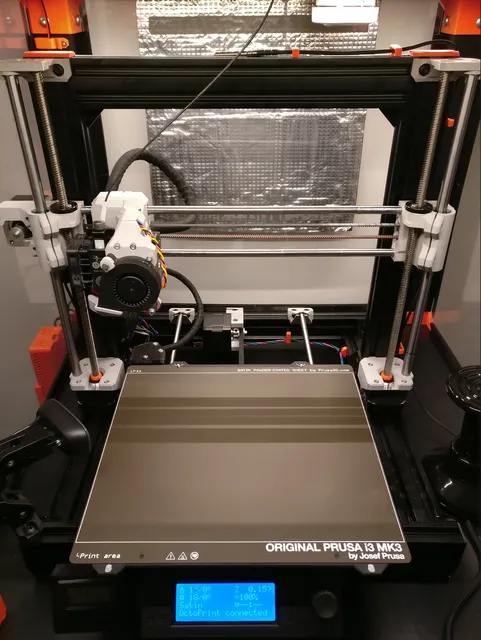

{"data":{"make":{"id":"59885","created":"2021-04-09T13:54:10.437590+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"32891","handle":"ShaunDoe","verified":false,"dateVerified":null,"publicUsername":"Shaun Doe","avatarFilePath":"media/auth/avatars/a7/a7822f58-9eb6-4fb9-9898-f61c9f2788f3.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"13375","filePath":"media/comment_images/80/197094-f997-45c7-81ba-d916dd1c8505/screenshot-2021-04-09-at-155136.png","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"A BearMera in the wild with the 10mm-upgrade, as shared by \"602 Wasteland\"-Discord user Duglum! \ud83d\ude04","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"51158","ratingAvg":"5.0000000000","ratingCount":7,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"51158","slug":"bear-bearexxa-10mm-z-axis","name":"Bear - BearExxa 10mm Z-axis","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":7,"description":"

Instead of using a 8mm rod & bearings in the X-ends, the X-ends have been changed to make use of a single LMUW10 (and thus 10mm rods).

No loss of print volume, no custom firmware, it's all fully compatible parts.

Oh. And it's usually actually cheaper then the 8mm Z-axis. The 10mm rods are more expensive; but the 2xLMUW10 bearings are cheaper then 4xLMU8.

It's a modification that shines best when using a Bear with an extended Z-axis, for added rigidity. But it can work just as well with the same goal on printers with a normal Z-height \ud83d\ude04

Recommended bearings/rods:

2x Misumi LMUW10
2x Misumi PSFU10 / DOLD Mechatronik rods, with a length of:
- 320mm (For a stock Bear frame)
- 420mm (For a \u2018tall Bear\u2019, 10cm extended Z)

Assembly

Other parts required in comparison to stock Bear:

25mm long screws for the X-end-idler-tensioner (instead of 18mm)
Potentially a longer X-belt

Follow the steps just like in the original build guide(s) for the Bear & BearExxa. BUT: do use a shorter 12mm screw for \u201cscrew pulling\u201d of the hex-nuts into the \"bearing clamps\u201d of the X-ends. Otherwise you will damage the X-ends because of slightly altered geometry.

With more rigid & higher precision hardware comes the need for better alignment!

Extra thanks go out to Gr\u00e9goire, not just for creating the Bear & BearExxa projects, but also for helping me out with feedback and a helping hand while adapting these parts!

If this helps you out, please like, rate and share a picture of the result! Otherwise, please leave a comment with feedback \ud83d\ude09

Changelog

30-03-21 - Moved the \u201cbearing clamps\u201d on the X-ends slightly outward (doesn't impact any functionality)

Credits

It's a remix of both the BearExxa and Bear Upgrade as created by Gr\u00e9goire Saunier. Based on the 1.0.0 (BearExxa) and 2.1.0 (Bear Upgrade) source files.
