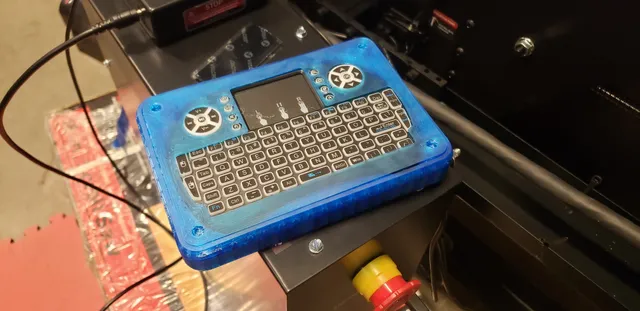

{"data":{"make":{"id":"596053","created":"2023-01-16T21:06:00.159005+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"301","name":"Rat Rig V-Minion","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"383430","handle":"DJXLLC_383430","verified":false,"dateVerified":null,"publicUsername":"DJX LLC","avatarFilePath":"media/auth/3a949e99-37f3-47dd-81db-5f4ed0d2312b.png","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"468320","filePath":"media/comment_images/24/8947fa-3e8b-40a5-8175-71437a03d215/20230115_140231-1.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Great file, Thanks for sharing. TPU, 240/50 20% on a Ratrig V-Minion. I will need to print the thin plate out of a stiffer material. The TPU is a little floppy on the thin plate.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"368460","ratingAvg":"0","ratingCount":0,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"368460","slug":"langmuir-systems-xr-controller-housing","name":"Langmuir Systems XR Controller Housing","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"0","myRating":null,"ratingCount":0,"description":"

I designed this to add a degree of impact protection to my Langmuir Systems XR Plasma Torch Table wireless controller. I used Prusament filament (galaxy black) which I highly recommend. For higher temp stability, try an ASA filament, or ABS. I would not use PETG as the panel piece is bonded to the bezel piece and PETG does not bond well (that I know of).

The housing is designed to accept 4-40 brass threaded inserts. I heat-inserted these using my soldering iron. These inserts can be bought at Amazon or McMaster-Carr, etc.

https://www.amazon.com/Z-LOK-Threaded-Insert-Plastic/dp/B08QJHXR7P/ref=sr_1_5?crid=2IKKVT3KZ7V6O&keywords=4-40+threaded+insert&qid=1673661423&sprefix=4-40+threaded+insert%2Caps%2C933&sr=8-5

The thin control panel piece was made separate so that it could be superglued or solvent bonded in place with either the smooth bed-side up or down, your choice. I wanted the rougher matte finish of the as-printed side of the panel. Some may prefer the shinier bed-side of the panel. Some may get adventurous and print this on a Prusa textured sheet for a nifty textured panel. You could also combine it into the bezel piece and make a one piece cover. I have included .step files for those with CAD experience. PLA, ABS and ASA will all super glue and you could use solvent with ASA or ABS.

I added a bumper to wrap the enclosure. I am going to print this in TPU, but I have not yet tried, so proceed at your on risk!!

Good luck!

","category":{"id":"49","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"49","name":"Tools","nameEn":"Tools","description":"Perfect tools and accessories for DIY enthusiasts or handicraftsman professionals. Table clamp, CNC machine parts, screw measuring tool, or multipurpose ruler.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-01-14T18:19:14.505569+00:00","firstPublish":"2023-01-14T02:02:40.127871+00:00","datePublished":"2023-01-14T18:19:14.401320+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"An enclosure for protecting your Langmuir Systems XR wireless controller from impact damage.","likesCount":8,"makesCount":1,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":42,"displayCount":396,"filesCount":8,"privateCollectionsCount":5,"publicCollectionsCount":1,"pdfFilePath":"media/prints/368460/pdfs/368460-langmuir-systems-xr-controller-housing-0f067d45-4d47-4933-8323-c2be53e10ccf.pdf","commentCount":1,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1504404","filePath":"media/prints/368460/images/3107081_1dfad28c-b8eb-4ccf-8cbe-88c0236fbb10/img_7655.jpg","rotation":0,"imageHash":"mBgKDYJkZphvhoeUd5Zaivylnl/q","imageWidth":640,"imageHeight":480,"__typename":"PrintImageType"},"images":[{"id":"1504404","filePath":"media/prints/368460/images/3107081_1dfad28c-b8eb-4ccf-8cbe-88c0236fbb10/img_7655.jpg","rotation":0,"imageHash":"mBgKDYJkZphvhoeUd5Zaivylnl/q","imageWidth":640,"imageHeight":480,"__typename":"PrintImageType"},{"id":"1504405","filePath":"media/prints/368460/images/3107080_9699d7ba-2253-46d0-b524-0c1f0733ea1d/img_7657.jpg","rotation":0,"imageHash":"lRgKDYJZlYd/doiHeHdqdPeZWo+p","imageWidth":640,"imageHeight":480,"__typename":"PrintImageType"}],"imagesCount":2,"tags":[{"name":"enclosure","id":"850","__typename":"TagType"},{"name":"langmuir","id":"85475","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1619050","filePreviewPath":"media/prints/368460/stls/3107040_5676335f-5015-4db8-997c-31b6de334ca2/langmuir-controller-enclosure-panel_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"11566","handle":"Ben_11566","verified":false,"dateVerified":null,"publicUsername":"Ben","avatarFilePath":"media/auth/avatars/0c/0cac214d-b786-4986-962f-6ce7ecc1aa23.jpg","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Langmuir Systems XR Controller Housing

Langmuir Systems XR Controller Housing
