Note: Update available here: Pocket Screwdriver Kit v2

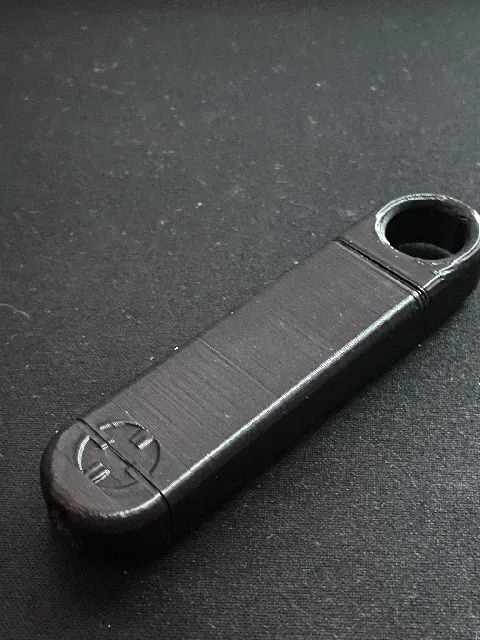

I picked up a pocket screwdriver kit similar to this at a tradeshow many years ago, and I wanted another one so here it is. The bits fit in snugly and the cover snaps closed.

No supports required (but you might need a brim for the outer case). Print in three pieces then glue the insert and handle together using the alignment nubs. You will also want to glue a tiny magnet in end of the case to hold the bit in place when using the screwdriver.

Disc magnet for the tip should be no larger than 6mm x 1mm \u2013 thicker magnets will hold the bits too strong. E.g., https://amzn.com/dp/B01NAL9I5H/

Any straight \u00bc\" / 6mm bits should work, up to ~ 1\" / 25mm in length. E.g., https://amzn.com/dp/B09T9H1DFC/

Update:

Added extra-tolerance-handle.3mf with an extra 0.2 mm tolerance to glue the bit insert to the handle a little easier. You may want to start with this one as opposed to the handle piece in the original file.

","category":{"id":"49","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"49","name":"Tools","nameEn":"Tools","description":"Perfect tools and accessories for DIY enthusiasts or handicraftsman professionals. Table clamp, CNC machine parts, screw measuring tool, or multipurpose ruler.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-03-14T13:52:11.006199+00:00","firstPublish":"2022-09-05T13:45:52.361438+00:00","datePublished":"2024-03-14T13:52:10.986496+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"Small screwdriver kit that holds four bits","likesCount":4691,"makesCount":171,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":11298,"displayCount":53400,"filesCount":3,"privateCollectionsCount":3187,"publicCollectionsCount":2562,"pdfFilePath":"media/prints/271645/pdfs/271645-pocket-screwdriver-kit-78e734a0-4f24-47cf-93d4-7feb6d875b7d.pdf","commentCount":196,"userGcodeCount":0,"remixCount":16,"canBeRated":false,"printer":null,"image":{"id":"1187543","filePath":"media/prints/271645/images/2417688_e37072be-03d3-4d86-846e-9e396670eb10/pocket-screwdriver-kit2.jpg","rotation":0,"imageHash":"FwgGDoKfaHh1hniFd2mot2hm+ZNODFo=","imageWidth":1166,"imageHeight":969,"__typename":"PrintImageType"},"images":[{"id":"1187543","filePath":"media/prints/271645/images/2417688_e37072be-03d3-4d86-846e-9e396670eb10/pocket-screwdriver-kit2.jpg","rotation":0,"imageHash":"FwgGDoKfaHh1hniFd2mot2hm+ZNODFo=","imageWidth":1166,"imageHeight":969,"__typename":"PrintImageType"},{"id":"1187499","filePath":"media/prints/271645/images/2417573_7d63eced-8952-400e-8831-07969949ee0e/pocket_screwdriver_kit.png","rotation":0,"imageHash":"pAcGBYKpeHd/h3d5h4iIhxyYwMAI","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"}],"tags":[{"name":"screwdriver","id":"3349","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1234483","filePreviewPath":"media/prints/271645/stls/2417572_5c0d4269-b55f-471e-9ea6-448713001dbf/pocket-screwdriver-kit_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"272995","handle":"schutz","verified":false,"dateVerified":null,"publicUsername":"schutz","avatarFilePath":"media/auth/avatars/87/8749ee40-d3e3-44a8-8199-b01e04fc70bd.png","badgesProfileLevel":{"profileLevel":22,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
