Recent updates

2021-06-29 Here's an Autohotkey example to send the name of the active window to the Arduino
2021-06-12 added the very basic Arduino Sketch
2021-06-08 first upload. Files: V0

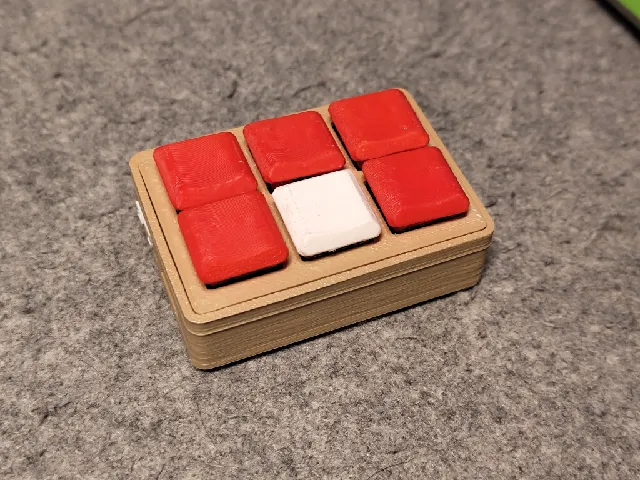

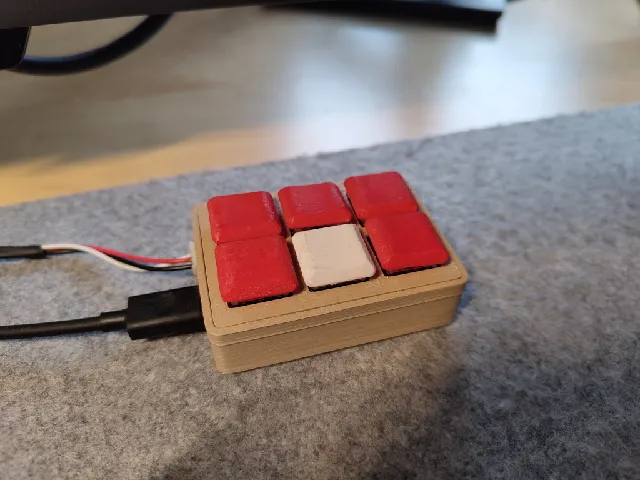

6-Key super slim Macro KeyPad

Proudly designed with FreeCAD \u2764. Join the first FreeCAD-Group here on PrusaPrinters.org!

This small Macro Keyboard is my first dive into the DIY keyboards hobby. I wanted to have some extra keys next to my 3Dconnexion SpaceMouse to have some ofte-used CAD shortcuts at hand.

The main body is only 9mm thick. The switches sit in a recess to get the key caps even closer to the table.

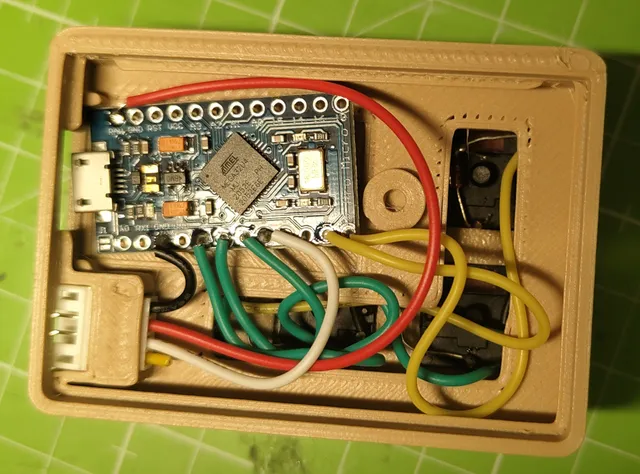

There's an Arduino Micro (Atmega 32U4) in it which reads the button matrix (2 columns, 3 rows).

The 6 keys just send CTRL+SHIFT+ALT+F1 to F6 to the PC. A small AutoHotkey script converts it to the hotkeys I need at the time. So those can be different for SolidWorks, FreeCAD, Firefox, Windows, \u2026

No flashing of QMK software needed. The Arduino sketch and AutoHotkey script will be uploaded only if there's enough interest.

These are the key caps and here's the switches. I use white (clicky) ones at home and brown (tactile) at the office.

Is this thing useful to you?

Don't hesitate to hit the \u2764 and show some love. I'm always happy to hear from you in the \ud83d\udde9 comment section. If you have problems printing my files: tell me in the comment section too!

Provided files

I do like to have real CAD-files, when downloading things from others. Most users don't provide files other than .STL-files. These are useless for further manipulation or quick changes. So I'll provide the following files to you:

Format	Included?	Description
STL	\u2713	-
STEP	\u2713	Version 214
FreeCAD	\u2713	Version 0.19 Link Branch

Is it easy to build/assemble?

Yes, but you need to know how to solder! For further assembly instructions see the Assembly section down below!

What do I need other than the printed parts?

6x Kailh Choc V1 switches
6x keycaps for the switches
6x diodes (1N4148, 1N4148, 1N4001 or whatever you have at hand)
1x Arduino Pro Micro (clone)
1x USB micro breakout board
A bit of (insulated) wire
Glue. I use 5 minute Epoxy
Soldering Iron

Is this thing finished?

YES, V2 is in the makes.

Print Settings

Here are some general guidelines on how to print this thing.

Rafts: Not necessary

Supports: Not necessary

Resolution: 0.2

Infill: 100%

Filament: PLA, PETG, ABS, ASA, \u2026

Notes: 100% infill for maximum weight.

Post-Printing

none

Assembly

Assembly instructions will follow if there's interest in this thing!

Step 1 \u2013 printing parts

Print the parts 100% infill at 0.2mm. Let them cool on the plate, don't rip them off when the plate is still hot. You want a straight bottom on the case.

Please check if the parts fit together nicely before glueing anything.

Step 2 \u2013 adding the switches and wiring

Snap the switches into their recesses, the tolerances are quite tight so it might be a bit fiddly. Use the same orientation for all switches, it makes wiring much easier!

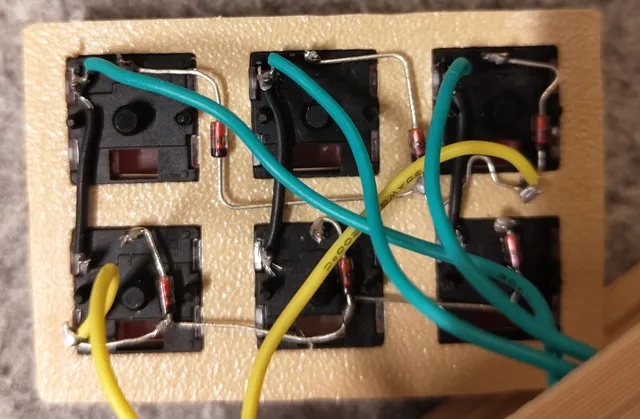

For reference, here's my wiring.

Before soldering, add two drops of glue (Epoxy) to each switch. It helps to keep them in place when you need to pop the caps off for cleaning later! Let it set before continuing with the process.

The keys are multiplexed. A good explanation can be found here! Applying the \u201cusual syntax\u201d to the pic above I have two rows and three columns.

To avoid shorts between the rows and columns you need to apply a layer of tape or use insulated wire.

Step 3 \u2013 connecting to the Arduino

tbc

Programming

The whole thing works like this:

Arduino emulates a HID device (a keyboard in this case)
the 6 keys are read (polled) by the microprocessor
if one key is read as pushed (== 1), the program sends one/multiple keys to the connected computer

You can go one of two routes here:

Send pre-defined (fixed) keystrokes which are fixed for all the keys on the macropad and let the program on the computer decide what to do.

Example: Pressing [KEY 1] always sends CTRL+SHIFT+ALT+F1, [KEY 2] sends ESC,
Program the Arduino to send the exact keystrokes/combinations directly to the computer

Route 1 - hard-coding

tbc
