This is an attachment for the original Prusa Mini spool holder which allows adding a PC4 M10 quick release adapter for a common PTFE tube. Primarily I use this for a reverse bowden setup on my MK3.

Printing:

any solid filament
0.2mm layer height
0.4mm nozzle
15% infill
2+ perimeters
no support when positioned on the left or right surface

Additional parts:

2x 10mm M3 screws for the regular version 1x 6-8mm M3 screw for the slim version
1x PC4 M10 PTFE fitting ( 0.9-1.0mm thread pitch )

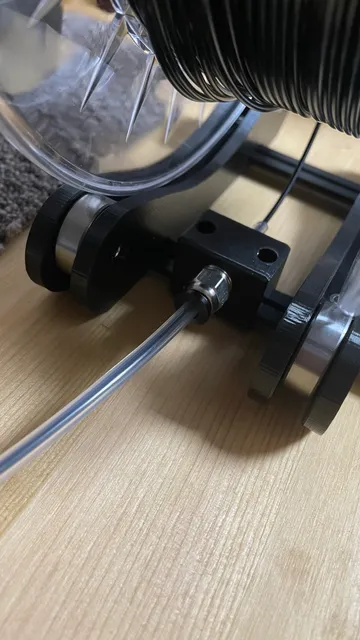

Place between the spool holder's bases as shown in the pictures and don't overtighten the screws when you lock its position on the rail!

Update History:

22-07-04: Fixed the slim version's back chamfer
22-05-23: Added pictures of the slim version test print
22-05-18: Added a slim version in order to support small \u2264 500g spools ( e.g. 500g Basicfil )
