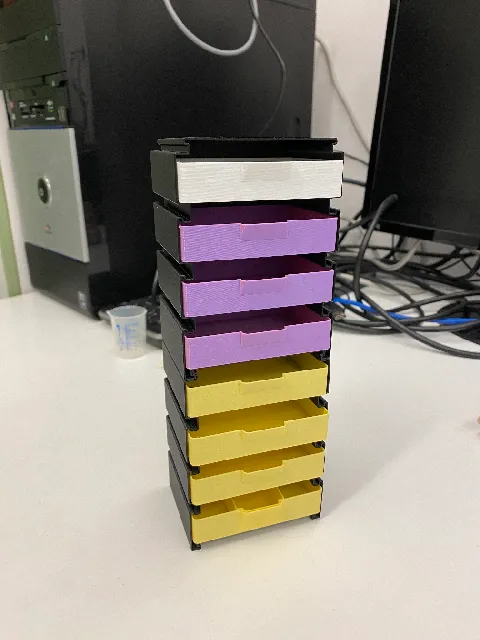

{"data":{"make":{"id":"537545","created":"2022-12-22T16:20:51.476672+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"391269","handle":"michalby_391269","verified":false,"dateVerified":null,"publicUsername":"michalby","avatarFilePath":"media/auth/avatars/f8/f882a56a-0cda-4b10-a01e-74bbcdf5467b.jpeg","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"411264","filePath":"media/comment_images/54/2550d1-909a-4202-a9f7-ff7ff5428587/8cf2b606-b317-4407-8304-f6dede09150c.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Regular version (not the loose fit) works perfectly with 0.8 mm wall thickness.\nGreat for using up leftover filament!","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"139570","slug":"fast-printing-modular-drawer-system-vase-mode","name":"Fast-Printing Modular Drawer System (Vase Mode)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8281250000","myRating":null,"ratingCount":384,"description":"

Hi Everyone:

I originally posted this design for a fast-printing modular drawer system on Thingiverse, but quite a few people suggested that I also post it Printables (I can see why. Printables runs so much smoother and the support is much better). So, here it is, I hope you like it.

There is now also a newer version available over on Cults3D which can be found here: https://cults3d.com/en/3d-model/home/fast-print-modular-storage-system

------------------------------------

Although there are many excellent modular drawer designs already available, I was unable to find anything that met my exact requirements and most take longer to print than I would like, so I have designed this fast printing and economical modular drawer system for storing lightweight parts and components etc.

Main features:

- Fast to print: To minimise print times, all components are designed to print using vase / spiralize mode and without supports. Each frame also holds 4 drawers to reduce the overall number of frames required. An 80mm drawer can easily be printed in around 25 minutes.
- Economical: The design uses only a small amount of filament due to printing in vase mode and requiring no supports.
- Multiple drawer/frame options: There are two drawer widths, each with an optional removeable divider insert.
- Easy to stack/connect: The frames can be securely connected vertically by sliding them together using the integrated top/bottom profiles. To join frames horizontally, the joiner strips should be used. One joiner strip is often enough, but you can use up to three for added strength and a cleaner look (no empty holes between frames). Full length and \u2018mini\u2019 joiner strips are available.

Looser-fit versions of the frames and joiners have been provided for additional tolerance where needed. Tolerance test models have also been provided to allow for testing which version will work best and for fine-tuning settings without the need to print full-size frames.

My print settings:

These models are designed to be printed in vase / spiralize mode (with 0.8mm line width), so will appear solid if printed using default slicer settings.

They can also be printed in non-vase mode (which can be useful for printing multiple models on the same build plate) by setting infill and top layers to zero, but this would be a little slower and would introduce a seam.

I use a 0.8mm line width for higher strength, 0.32 layer height, and 25-30mm/s wall speed.

No supports required for any parts.

For personal use only please.

Happy printing :-)

P.S. If you find my design useful, please check out my other design on Printables and on Cults3D. Many thanks

--------------------------

If you like this design, please take s look the newer version (link at the top of the description).

The new design features stronger frames and drawers, 12 different frame options, 8 different drawer sizes, and removeable dividers for the 6 largest drawers. It also includes optional drawer stops and stabilising feet.

As lots of people have already printed the original version, I designed the new version to be as backwards-compatible as I could. The new frames can be joined horizontally or underneath the original version (not above due to a change in profile shape), and the new 78mm and 158mm drawers will still fit in the original frames.

I have also recently uploaded another modular drawer system (also \u2018vase mode\u2019), which is a little different to this one and has been designed for optimal strength and scalability:

https://cults3d.com/en/3d-model/home/fast-print-modular-storage-drawers-trapezoid-edition-vase-mode
