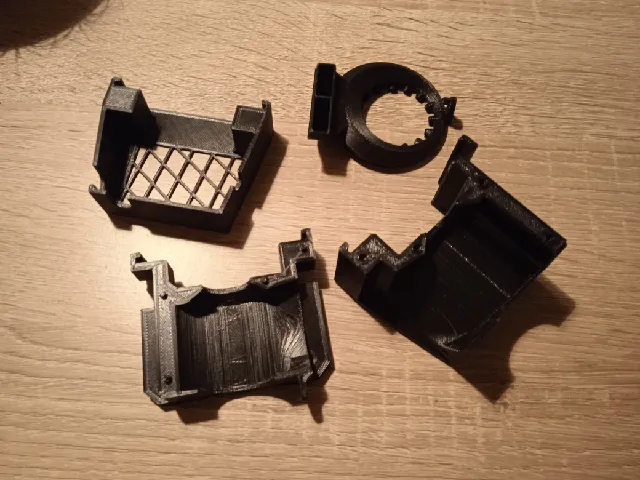

{"data":{"make":{"id":"514793","created":"2022-12-09T17:23:37.318379+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"73","name":"Anycubic i3 Mega","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"451954","handle":"Shivas","verified":false,"dateVerified":null,"publicUsername":"Shivas","avatarFilePath":"media/auth/avatars/b7/b718d295-e6b6-4e4c-99aa-6303b9b5f0fc.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"389799","filePath":"media/comment_images/8b/689c5b-c5ed-4e8f-a371-11a83dde1d1a/img_20221209_173933.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"All is print, need to assemble together now \ud83d\ude01","rating":4,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"47884","ratingAvg":"4.6666666667","ratingCount":15,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"47884","slug":"anycubic-i3-mega-hotend-fan-box-also-mega-s-mega-x","name":"Anycubic i3 mega Hotend fan box (also Mega-S, Mega-X, Full Metal, BLTouch & E3DV6 versions)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6666666667","myRating":null,"ratingCount":15,"description":"

Features

26.11.2021 updated

added duct with stopper at fan hole

18.2.2021 updated the fan duct for more spacing around the nozzle.

BL touch
standard parts
flow optimised

separation of hotend and nozzle coolin
I wanted to have an easy accessible Extruder for nozzle change. And an easy changeable Nozzle duct.
And i did not like to buy new parts - so you do not need anything else then you already have on your printer.
If you want go improve the screws you can go for thread inserts. Which i melt into the part with my soldering iron. In the beginning I just did the holes 2.5mm without inserts - works fine as well.
But it works fine as well if you just screw the original screws into the 3D printed parts.
A big advantage is that the flow of the hotend cooling is going straight to the hotend and is not affecting the nozzle cooling. The print results are improved!
The Duct and the hotend cooling are CFD flow optimized.

You can use the original fans and screws - no need to buy new parts.
To make it perfect use M3 inserts otherwise use the stl files with \"screws\" in the filename.

Print instructions

Print Settings

Printer Brand: Anycubic

Printer: All-metal Mega

Rafts: Doesn't Matter

Supports: Yes

Resolution: 0.2

Infill: 25%

Filament: Extrudr PLA Black
Notes:

I used Extrudr PLA and ASA for the duct. But i was using a PLA duct for a long time as well.
Set support overhang angle to 85 - only the horizontal bolt needs support
