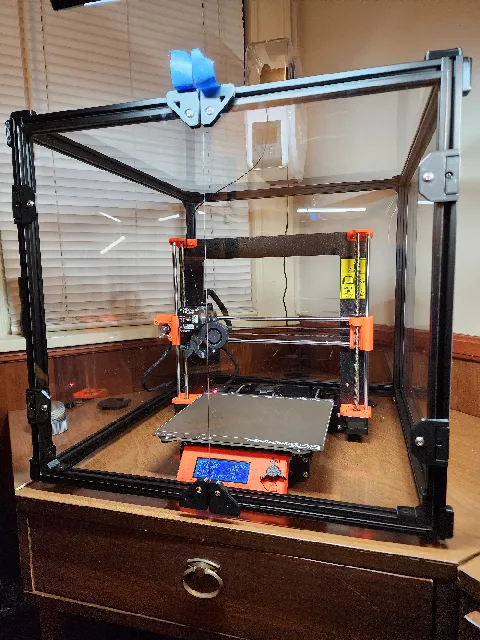

{"data":{"make":{"id":"501639","created":"2022-12-02T16:53:58.974052+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"323253","handle":"Ghostfmj_323253","verified":false,"dateVerified":null,"publicUsername":"Ghostfmj","avatarFilePath":"media/auth/avatars/32/32377719-b8d7-420c-b7f8-dfe30d9b2654.jpg","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"377904","filePath":"media/comment_images/bf/096ccb-ae0e-4723-b924-df85aac95ec7/20221129_161948.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I like it, could probably use better instructions. Still have a few things left before 100% done but so far so good.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":0,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"258996","slug":"prusa-i3-mk3s-enclosure-with-rapsberry-pi-hq-camer","name":"Prusa i3 MK3S+ Enclosure with Rapsberry Pi, HQ Camera and Filament Box","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

Inspired by the Voron 2.4 enclosure I made my own for the Prusa i3 MK3S+.

Exterior Dimensions are 614 x 556 x 518mm.

The Case is sealed from all sides but air can still flow in from below to vent the electronics. The whole enclosure sits on rubber feet (from High-End Audio Speaker). Additionally a Raspberry Pi 4 enclosure can be mounted inside and the HQ Camera attached to the aluminum extrusion.

Printed Parts required:

16x Corner Piece
4x Hinges
2x Left Latch
2x Right Latch
2x Latch Base
6x LED Strip Angles
4x Rubber Feet Mounts

Sourced Parts required:

8x Aluminium Extrusion 2020 - 500mm
4x Aluminium Extrusion 2020 - 560mm
44x Flat Head Screws M5x8
8x Nuts M5
8x Washer M5
36x T-Slot Nuts M5
6x Hex Screws M3x6
6x T-Slot Nuts M3
4x Round Magnets 7-8x1mm
2x Acryl Panel - 573 x 473 x 3mm
1x Acryl Panel - 573 x 513 x 3mm
1x Acryl Panel - 513 x 473 x 3mm
2x Acryl Panel - 472 x 255.5 x 3mm

Compatible with following extensions:

Filament Dry Box IKEA Samla 22L (https://www.printables.com/model/116955-filament-dry-box-ikea-samla-22l)
Raspberry Pi HQ Camera Case for T/V-Slot (2020) (https://www.printables.com/model/82579-raspberry-pi-hq-camera-case-for-tv-slot-2020)
