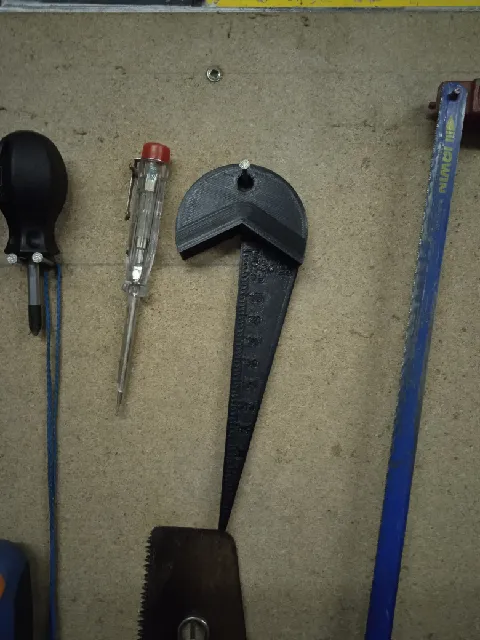

{"data":{"make":{"id":"494341","created":"2022-11-29T18:55:33.426184+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"73","name":"Anycubic i3 Mega","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"451954","handle":"Shivas","verified":false,"dateVerified":null,"publicUsername":"Shivas","avatarFilePath":"media/auth/avatars/b7/b718d295-e6b6-4e4c-99aa-6303b9b5f0fc.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"370753","filePath":"media/comment_images/33/052df7-6053-4022-9161-8c2cdcbda3c7/img_20221129_151945.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"D\u00e9j\u00e0 en place sur l'\u00e9tabli \ud83d\ude09","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"326018","ratingAvg":"4.8631578947","ratingCount":95,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"326018","slug":"radius-measurement-tool-and-cylinder-center-finder","name":"Radius measurement tool and Cylinder center finder / center marker","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8631578947","myRating":null,"ratingCount":95,"description":"

This is a remix of https://www.thingiverse.com/thing:1213459

My appologies to the original designer for not including the link to his model originally, as I was unable to locate the original when I posted.

For use as a Center Finder; simply flip it over so that the scale side is facing down and then use it like a ruler/straight edge, placing it on top of the object and then drawing two or more intersecting lines. The intersecting lines will cross at the object's center point.

When using this to measure an object, please note that the markings/scale indicates the Radius (even though you are measuring across the full diameter of the object).

If you want to determine the Diameter, simply double the reading/value shown as it's Radius.

My reason for doing this was for legibility (and precision), as the scale markings for diameter would take up much more space.

Given the method used in measuring, this easily achieves a precision of better than +/- 0.5mm and it can still be used to measure objects up to 128mm in diameter (i.e. 64mm radius)

Printing Tip

To improve the legibility of the markings & numbers, I'd recommend doing a filament colour change,

Assuming that you're slicing with a layer height of 0.2mm, your filament colour for the text should start somewhere between 3.0mm to 3.6mm and then change back to your final colour at 4.2mm

Instructions for using \"Center Finder - multi-colour_0.2mm_PLA_MINI_1h43m.gcode\"

I've included a g-code file which is specific to the Prusa Mini/Mini+. If you want to print this in true single layer multi-colour such as Orange with Black text on your Prusa Mini/Mini+ using the g-code file:

Load up your Orange filament and start printing from the g-code file.
After about 54 minutes, it will unload the Orange and prompt you to load the next colour of filament (i.e. Black).
After about 3 minutes of printing the two layers of black, it will unload the Black and prompt you to load the final filament colour change (i.e. Orange).
The remainder of the print will take about 45 minutes to complete.

If you do happen to print the included G-Code version on your Prusa Mini/Mini+, please include a close-up photo of the text on your Make.

","category":{"id":"49","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"49","name":"Tools","nameEn":"Tools","description":"Perfect tools and accessories for DIY enthusiasts or handicraftsman professionals. Table clamp, CNC machine parts, screw measuring tool, or multipurpose ruler.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2026-01-10T16:11:20.507821+00:00","firstPublish":"2022-11-27T00:32:34.612399+00:00","datePublished":"2026-01-10T16:11:19.985182+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"You can easily measure the radius of a cylindrical object (accurate within +/- 0.5mm) or locate its center point","likesCount":2742,"makesCount":122,"liked":null,"printDuration":"1.72","numPieces":1,"weight":"23.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":7895,"displayCount":22337,"filesCount":2,"privateCollectionsCount":2168,"publicCollectionsCount":1834,"pdfFilePath":"media/prints/326018/pdfs/326018-radius-measurement-tool-and-cylinder-center-finder-center-marker-32114d9f-933f-4dc2-970b-2477b217d915.pdf","commentCount":264,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":{"id":"18","name":"Prusa MINI / MINI+","__typename":"PrinterTypeType"},"image":{"id":"1365070","filePath":"media/prints/326018/images/2808057_418e2035-6eb0-4088-8360-17faae88a050/r2.png","rotation":0,"imageHash":"ZjgGDYT+kafSSXhOk8mFeSIMNLRQ","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},"images":[{"id":"1365070","filePath":"media/prints/326018/images/2808057_418e2035-6eb0-4088-8360-17faae88a050/r2.png","rotation":0,"imageHash":"ZjgGDYT+kafSSXhOk8mFeSIMNLRQ","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},{"id":"1365069","filePath":"media/prints/326018/images/2808061_70620175-a3de-4bba-96dc-6e47ad5ccbdd/r3.png","rotation":0,"imageHash":"qjgCFYb4k2uoWXdeoWmHlQMsQcAS","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},{"id":"1365068","filePath":"media/prints/326018/images/2808058_1e05702c-0d05-4726-b526-9162e06d871f/r1.png","rotation":0,"imageHash":"aDgGDYa/0obzOGpbhai0akELE7Qw","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},{"id":"1365071","filePath":"media/prints/326018/images/2808059_919af18c-2fb1-41dd-99e9-4fabf2d66773/20221126_170224.jpg","rotation":0,"imageHash":"4moCFQIBaLN5R5l1hkqods7w+zy8","imageWidth":1731,"imageHeight":2308,"__typename":"PrintImageType"},{"id":"1768755","filePath":"media/prints/326018/images/3696889_738f7dda-4b07-4e8a-83c9-4769d42b51cc/rtc1.png","rotation":0,"imageHash":"Z7oGDYr7pneFeog5p7ZoiVDnepB1","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"measure","id":"810","__typename":"TagType"},{"name":"radius","id":"4735","__typename":"TagType"},{"name":"radiusgauge","id":"5409","__typename":"TagType"},{"name":"centerfinder","id":"6679","__typename":"TagType"},{"name":"measurementtool","id":"10499","__typename":"TagType"},{"name":"diameter","id":"17285","__typename":"TagType"},{"name":"centermarker","id":"100465","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"1450592","filePreviewPath":"media/prints/326018/stls/2808060_a7f3b07a-290e-4ee3-a679-04a1d5d71a3c/center-finder-and-radius-measure_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"259023","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:1213459","urlAuthor":"J-Max","urlImage":"https://cdn.thingiverse.com/renders/8e/f4/e5/d2/83/SeriousCentreFinder01_preview_featured.jpg","urlTitle":"Serious Centre Finder","urlLicense":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"urlLicenseText":"Creative Commons - Attribution - Non-Commercial - Share Alike","__typename":"PrintRemixType"}],"remixDescription":"

Added scale for measurement of radius.
