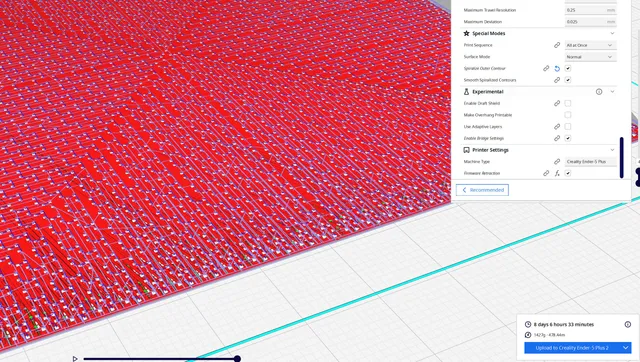

{"data":{"make":{"id":"472580","created":"2022-11-14T22:50:21.473678+00:00","edited":"2022-11-15T22:07:56.309623+00:00","deleted":null,"isMake":true,"printer":{"id":"102","name":"Creality Ender 5","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"235146","handle":"NoWarrenty","verified":false,"dateVerified":null,"publicUsername":"NoWarrenty","avatarFilePath":"media/auth/avatars/7b/7b7d6bcc-800a-47b7-9378-7b3fdbfde21b.jpeg","badgesProfileLevel":{"profileLevel":17,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"352313","filePath":"media/comment_images/0b/704f1a-06d4-4b66-aad4-71d2a1cc6620/pyramid.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Any idea what could cause this? Cura 5.1, spiralize contour on.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"246588","ratingAvg":"4.9473684211","ratingCount":38,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"246588","slug":"improved-fractal-pyramid-for-vase-mode-remix","name":"Improved Fractal Pyramid for Vase Mode - Remix","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9473684211","myRating":null,"ratingCount":38,"description":"

This is a remix of ricktu's Fractal Pyramid on Thingiverse that is more reliable for slicing in Cura 5.1.0.

When sliced in vase mode, the original model had thousands of retractions on the first layer. So I edited the original models in Fusion360 to make the bottom 0.2mm base of the pyramid solid. This ensures that Cura prints the bottom of the pyramid as a solid, concentric layer in vase mode.

Filament: YOUSU Silk Dual Color PLA

Printing Settings (Cura 5.1.0):

Layer Height: 0.19 mm
Surface Mode: Normal
Spiralize Outer Contour: \u2713
Smooth Spiralized Contours: \u2713

When I set the layer height at the normal 0.2 mm, I would have strange travels and extrusions in random layers of the print, even if vase mode was on. However, all of those glitch layers would disappear when using a layer height of 0.19mm, which would be visually the same:

I recommend that you go through the layers after slicing to make sure it's truly printing in vase mode. Happy printing!

","category":{"id":"14","path":[{"id":"13","name":"Art & Design","nameEn":"Art & Design","description":"Explore 3D printed works of art and breathtaking designs. Download premium STL files of movie characters, design accessories, miniatures, busts, and animals.","__typename":"CategoryType"},{"id":"14","name":"Sculptures","nameEn":"Sculptures","description":"It's not sci-fi to have all your avatars printed in 3D. Busts of famous people, movie heroes statues, animal creatures, or miniatures. Print them all!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-07-24T14:57:35.067586+00:00","firstPublish":"2022-07-23T17:08:07.297933+00:00","datePublished":"2022-07-23T17:08:07.297933+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Remix of ricktu's Fractal Pyramid to improve slicing and printing in vase mode","likesCount":391,"makesCount":62,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":3078,"displayCount":9314,"filesCount":2,"privateCollectionsCount":270,"publicCollectionsCount":203,"pdfFilePath":"media/prints/246588/pdfs/246588-improved-fractal-pyramid-for-vase-mode-remix-ff6e45b0-f12b-4186-b889-75e9c067b7e3.pdf","commentCount":77,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1095762","filePath":"media/prints/246588/images/2220772_ed53d701-5747-46c1-b0e0-e0538c11727d/img_8172.jpg","rotation":0,"imageHash":"JQgODYL1WXiFdneHYxmXdviFqgII","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"images":[{"id":"1095762","filePath":"media/prints/246588/images/2220772_ed53d701-5747-46c1-b0e0-e0538c11727d/img_8172.jpg","rotation":0,"imageHash":"JQgODYL1WXiFdneHYxmXdviFqgII","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"1095763","filePath":"media/prints/246588/images/2220774_81e8a97e-5b5d-476c-8e5f-ee711d9ce0de/screenshot-2022-07-22-154939.png","rotation":0,"imageHash":"oLkJHJ67yKl8d4h/d3tglPKHhw==","imageWidth":2047,"imageHeight":1095,"__typename":"PrintImageType"},{"id":"1095764","filePath":"media/prints/246588/images/2220773_96b83273-7484-4fcd-90e2-300c039bde77/screenshot-2022-07-22-152300.png","rotation":0,"imageHash":"mEgOG4x5d3mAd2d4aHSARwc=","imageWidth":1964,"imageHeight":917,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"art","id":"517","__typename":"TagType"},{"name":"spiral","id":"602","__typename":"TagType"},{"name":"vasemode","id":"2694","__typename":"TagType"},{"name":"fractal","id":"3504","__typename":"TagType"},{"name":"spiralvase","id":"3789","__typename":"TagType"},{"name":"pyramid","id":"6034","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1136405","filePreviewPath":"media/prints/246588/stls/2220775_7715a76c-8c72-4897-bf7f-e72a371df8a0/pyramid4_fixed_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"15632","modelId":"2311","modelName":"Spiral Vase Mode Sierpi\u0144ski Pyramid","modelAuthor":{"id":"6773","handle":"Nat_","verified":false,"publicUsername":"Nat","__typename":"UserType"},"model":{"id":"2311","name":"Spiral Vase Mode Sierpi\u0144ski Pyramid","slug":"spiral-vase-mode-sierpinski-pyramid","datePublished":"2024-10-24T18:21:10.793245+00:00","image":{"id":"1726326","filePath":"media/prints/2311/images/3607881_72e17045-81af-41cd-884d-a2a9051690e6/printables-thumnail.png","rotation":0,"imageHash":"pUkOFYT5WHeJd4h9hGiId/lpnJ+3","imageWidth":2800,"imageHeight":2000,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"195230","handle":"willsside","verified":false,"dateVerified":null,"publicUsername":"willsside","avatarFilePath":"media/auth/avatars/0a/0ac68d69-bd0b-4d7c-8f64-d7f778616e47.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"484320","created":"2022-11-23T08:31:24.505432+00:00","edited":"2022-11-23T08:40:09.417750+00:00","deleted":"2022-11-23T08:45:46.071689+00:00","isMake":false,"printer":null,"parent":{"id":"472580","__typename":"PrintCommentType"},"author":{"id":"190507","handle":"Austin87_190507","verified":false,"dateVerified":null,"publicUsername":"Austin87","avatarFilePath":"media/auth/95be4d0d-0eee-4850-859c-4f68c827c2a5.png","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"235146","handle":"NoWarrenty","__typename":"MentionListAssociationType"}],"text":"","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"246588","ratingAvg":"4.9473684211","ratingCount":38,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}
