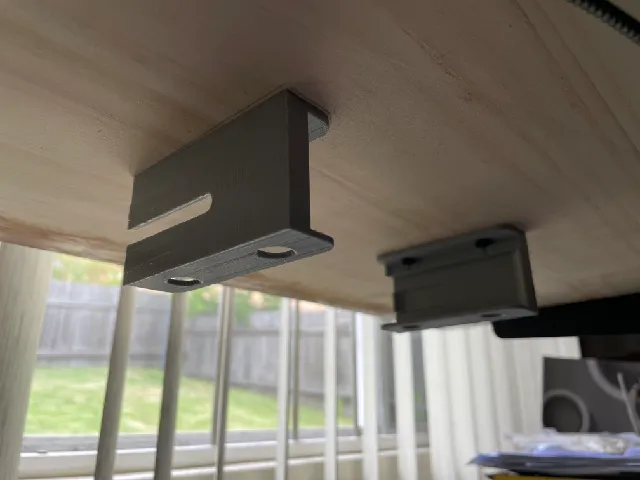

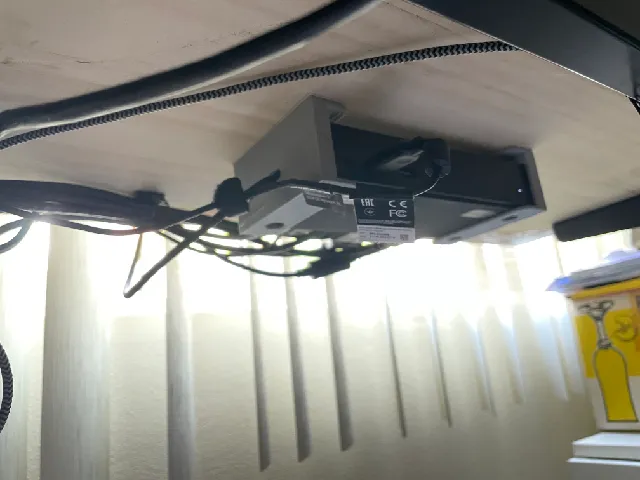

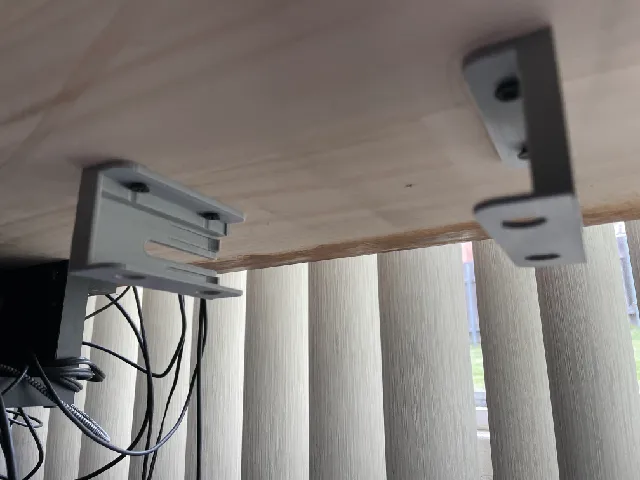

Designed a mount to hold a Dell D6000 dock to the bottom of a desk. It is designed to slide in from the back with a clip built in to add friction to hold it in place.

The holes are setup for #8 pan head screws.

Features:

Tool-less install/removal of the dock
1/4 in gap on top for airflow
It holds things to the bottom of the desk (can you tell I'm running out of features for a dock holder)
The two sides are separate so it can be printed on a small printer.
\nTo print this make sure to flip the design to print the large flat side down. It was modeled differently.

The Fusion 360 f3d files are included so edits can be made.

Print instructions

Printed with 4 walls for strength. 20% infill. PLA.

Since PrusaPrinters won't let you upload the PDF download it from Thingiverse for the template.
