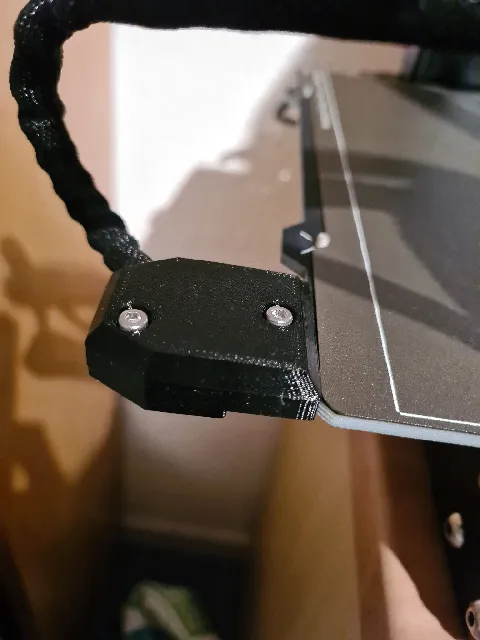

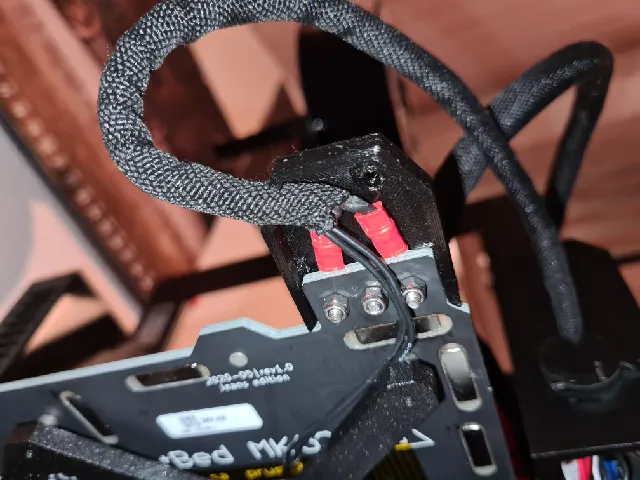

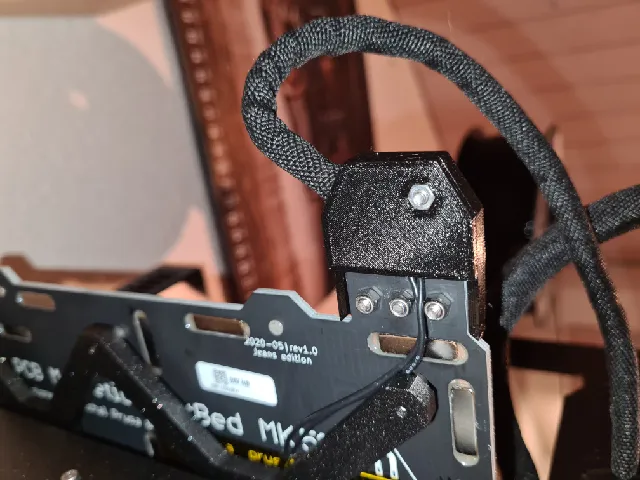

{"data":{"make":{"id":"413686","created":"2022-10-02T20:15:17.586394+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"385467","handle":"beiinjamiin_385467","verified":false,"dateVerified":null,"publicUsername":"beiinjamiin","avatarFilePath":"media/auth/6f4258d7-98e0-40d0-b5ff-dbf030b396bc.png","badgesProfileLevel":{"profileLevel":6,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"295313","filePath":"media/comment_images/e9/28b8a7-e67e-4cec-8091-462dcc6200ee/12_60deg_deckel-boden_20221002_211109.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"295312","filePath":"media/comment_images/a7/272f77-5486-42ef-a65d-23e13f5dc9eb/12_60deg_deckel-boden_20221002_211320.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"295311","filePath":"media/comment_images/6f/ea057d-3e2f-4325-ab93-cf140ae81381/12_60deg_deckel-boden_20221002_211246.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"i added a clip on the bottom, mounted with a screw to eliminate the zip tie","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"88740","ratingAvg":"4.8250000000","ratingCount":80,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"88740","slug":"60deg-heatbed-cable-cover","name":"60\u00b0 Heatbed Cable Cover","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8250000000","myRating":null,"ratingCount":80,"description":"

I designed this heatbed cable cover, because the ones available were designed to complex and too far off the original design. I needed an angled cable cover to reduce the length of the printer, so I can fit it inside an IKEA Platsa cabinet. But it's also great to stop your printer from crashing the heatbed cable into the wall while standing on a desk.

The actual mountig of my design ist similar to the one supplyed by prusa. I increased the length of the cover by 6mm, so the cables have room inside to bend without modifications on the power terminals. I got rid of the second 3D printed part from underneath, because the space for screws was to tight. Instead the cables can be secured by a 2,5mm x 1mm zip tie trough a assigned channel in the part.

Print settings:

0,2mm layer height
100% infill
3 perimeters

I printed it in PETG and it works perfectly well and serves it's purpose.

As always, happy printing!
