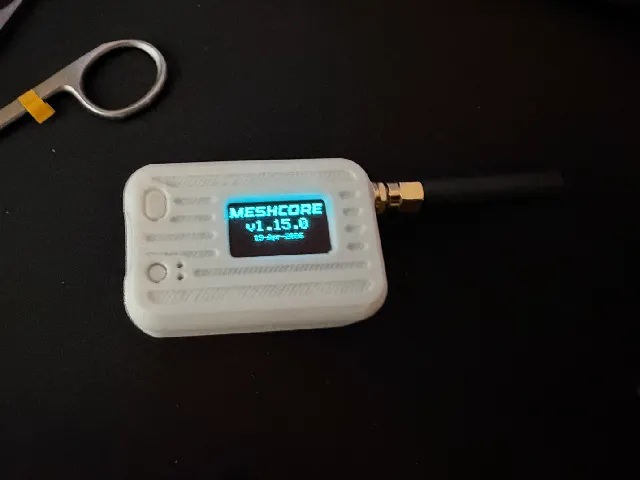

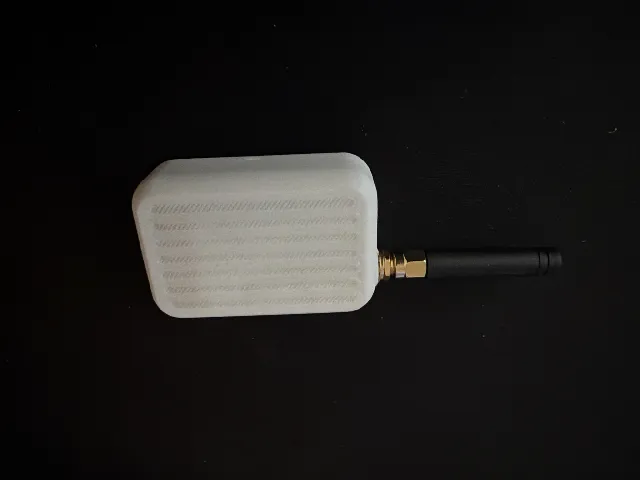

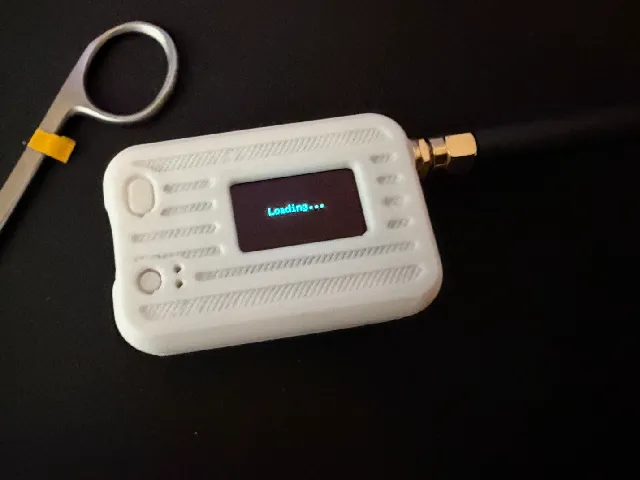

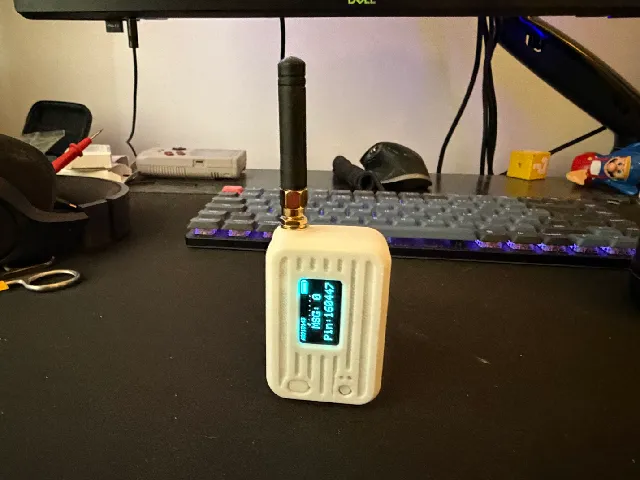

{"data":{"make":{"id":"3427009","created":"2026-05-16T13:40:35.773928+00:00","edited":"2026-05-16T13:42:29.174682+00:00","deleted":null,"isMake":true,"printer":{"id":"623","name":"TwoTrees SP-3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1365541","handle":"m3x_1365541","verified":false,"dateVerified":null,"publicUsername":"m3x","avatarFilePath":"media/auth/avatars/e0/e0f0acba-bfd0-42d6-adb7-1a20e894154b.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"3239059","filePath":"media/comment_images/f3/57ad0c-d1f0-464e-bc57-3bf34bbecc84/img_1739.jpeg","rotation":270,"__typename":"CommentImageType"},{"id":"3239060","filePath":"media/comment_images/15/dfa3d7-4618-4653-849f-38ce97e18544/img_1740.jpeg","rotation":270,"__typename":"CommentImageType"},{"id":"3239061","filePath":"media/comment_images/dc/a023ab-5cba-434d-b821-1240b59ad0f8/img_1742.jpeg","rotation":0,"__typename":"CommentImageType"},{"id":"3239068","filePath":"media/comment_images/92/740531-a9ad-4e41-bf1d-425073940c2e/image.jpg","rotation":90,"__typename":"CommentImageType"}],"mentions":[],"text":"nice case good fit","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1519914","ratingAvg":"5.0000000000","ratingCount":22,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":true,"id":"1519914","slug":"heltec-lora-32-v4v3-pocket-pager-case","name":"Heltec LoRa 32 V4/V3 Pocket Pager Case","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":22,"description":"

Commercial Use and Attribution Notice

\u00a9 2025 by Majestic AV, LLC. is licensed under CC BY-SA 4.0.

Commercial use of this design, including promotional use, selling, and reselling to other businesses for sale, is permitted under the following conditions: Prior to any commercial exploitation, you must contact Alley Cat or MajesticAV, LLC to ensure proper attribution and licensing terms. By law, this requirement extends to any sharing, distribution, or creation of derivative works, including manually crafted designs that emulate this design. Proper attribution must be clearly stated in all instances of use. For official contact methods and further information, visit Majestic AV, LLC - Alley Cat. Any other sources are unauthorized and should not be used for commercial or licensing inquiries.

Disclosure: Some links on this page may be affiliate links. If you make a purchase through them, I may earn a small commission \u2014 at no extra cost to you. I only recommend gear I trust and use myself. Thanks for your support!

Suggested Print Settings

Material: PLA+ or PETG
Nozzle: 0.4mm
Extrusion Width 0.4mm
Layer Height: 0.2mm
Perimeters: 3
Infill: 0%
Top/Bottom Layers: 5
Support Material: None

3D Printing Disclaimer

Thank you for downloading my CAD design! I want to assure you that extensive testing and iteration went into creating this design. However, please keep in mind that 3D printing involves a wide range of variables, including different types of filament, printer settings, and calibration levels. These factors can significantly impact the final print.

Before concluding that the design is flawed, I encourage you to:

\u2022 Check your printer calibration: Ensure your printer is properly calibrated. Especially filament shrinkage.

\u2022 Adjust print settings: Try changing the print settings to achieve better results.

\u2022 Resize the model: Scaling the model up or down slightly may resolve fit issues.

Remember, these are development boards and sometimes have very fragile parts. If you encounter any issues or need assistance, please feel free to reach out to me. I am here to help and can provide guidance to achieve the best results. Claiming a design is bad without considering these variables does a disservice to the community and may discourage others from trying a design that could work perfectly with minor adjustments.

Thank you for your understanding and cooperation. Happy printing!

Description:

Custom case for the Heltec LoRa 32 V4 and V3. No hardware needed unless you want to use the Baofeng style clip which requires M2.5 nuts or heat set inserts and M2.5x5mm screws. Here are links to the parts I used:

2000mAh MakerNova LiPo Direct / Amazon

Internal Antenna

MakerNova Branded Gizont Antenna Direct / Amazon

I haven't had a chance to make a video for this one yet, so for now just use my other Heltec video for assembly instructions, it's almost exactly the same. It doesn't include the GPS either, but if you have trouble, join my Discord and we will help. Please be patient!

","category":{"id":"52","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"52","name":"Electronics","nameEn":"Electronics","description":"Keen on electronics devices and making your own gadgets? Use Raspberry Pi, Arduino, or GoPro and create new equipment using 3D print. Let's start!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-12-18T04:23:13.618050+00:00","firstPublish":"2025-12-18T04:23:13.612235+00:00","datePublished":"2025-12-18T04:23:13.612235+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"I updated my Pocket cases for the Heltec LoRa 32 V4 and they still work for V3. PLEASE READ THE ENTIRE DESCRIPTION!","likesCount":262,"makesCount":20,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":2448,"displayCount":9776,"filesCount":9,"privateCollectionsCount":198,"publicCollectionsCount":105,"pdfFilePath":"","commentCount":48,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"5225005","filePath":"media/prints/269d978a-4020-4601-86ae-1ecfe7845810/images/11450967_2b9c8cff-26c9-4b07-aaf1-531854ded94e_c0dd59eb-a4b2-4469-88ab-42aadfc09bc8/a10ebc06-cc2a-4e47-b47a-668c3a822897.png","rotation":0,"imageHash":"nucNDwJ3iIeAhod3eKeIaId2eF+Y94oG","imageWidth":1920,"imageHeight":1920,"__typename":"PrintImageType"},"images":[{"id":"5225005","filePath":"media/prints/269d978a-4020-4601-86ae-1ecfe7845810/images/11450967_2b9c8cff-26c9-4b07-aaf1-531854ded94e_c0dd59eb-a4b2-4469-88ab-42aadfc09bc8/a10ebc06-cc2a-4e47-b47a-668c3a822897.png","rotation":0,"imageHash":"nucNDwJ3iIeAhod3eKeIaId2eF+Y94oG","imageWidth":1920,"imageHeight":1920,"__typename":"PrintImageType"}],"imagesCount":1,"tags":[{"name":"mesh","id":"9343","__typename":"TagType"},{"name":"lora","id":"19113","__typename":"TagType"},{"name":"meshtastic","id":"48279","__typename":"TagType"},{"name":"heltec","id":"52736","__typename":"TagType"},{"name":"heltecv3","id":"167986","__typename":"TagType"},{"name":"alleychat","id":"227517","__typename":"TagType"},{"name":"meshcore","id":"277077","__typename":"TagType"},{"name":"heltecv4","id":"333860","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"6396024","filePreviewPath":"media/prints/6fde6536-7f32-443f-b08b-a4921628a69a/previews/87c8c1aa-b568-497b-b153-0859f5e74666.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"1642919","handle":"AlleyCat","verified":false,"dateVerified":null,"publicUsername":"Alley Cat","avatarFilePath":"media/auth/avatars/df/dfa12455-cba1-49e7-8951-a75c7ffbe321.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Heltec LoRa 32 V4/V3 Pocket Pager Case

Heltec LoRa 32 V4/V3 Pocket Pager Case
