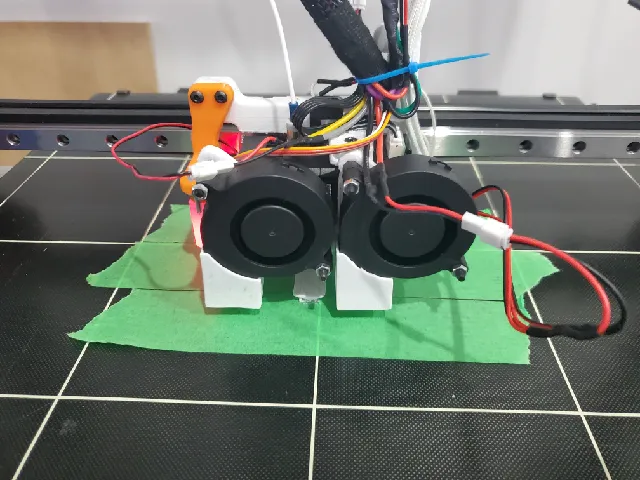

{"data":{"make":{"id":"340145","created":"2022-08-04T03:39:33.070747+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"335","name":"Anycubic Chiron","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"306643","handle":"Decapper_306643","verified":false,"dateVerified":null,"publicUsername":"Decapper","avatarFilePath":"media/auth/613c0736-9dea-4664-909d-433ae4de8d2f.jpg","badgesProfileLevel":{"profileLevel":4,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"232436","filePath":"media/comment_images/70/1a3983-19e3-4577-b4ef-98ae35f4d0d8/20220804_133521.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Fits well. Great design for the twin fans thanks for your hard work!","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"186618","slug":"modular-biqu-h2-mount-for-ender-3x","name":"Modular BIQU H2 Mount for Ender 3.X","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5714285714","myRating":null,"ratingCount":7,"description":"

This is a BIQU H2 mount for the base Ender 3/3 Pro and the Ender 3 V2.

It comes in 2 variants, depending if you prefer to mount one or two 5015 fans.

Key features

designed for the Ender 3 and the Ender 3 V2 [new]
modular, small, lightweight, yet sturdy
fast and easy to print, (almost) without supports
optional probe mount, for either a BL Touch or a CR Touch [new]
optional ADXL345 accelerometer mount
support for an Adafruit WS2812 LED strip
modular cable management system, currently designed to pinch in place a 10mm wide flexible cable management sleeve
designed to hide and organise fan, heater and accessories cables
duct airflow design validated by fluid simulations

Both single and dual mount have been printed, installed and tested ;) I posted a make if you want to see in for real.

Notes

Probe offset :
- BLTouch + BiQU H2 V1 / PTFE heat-break : x:57.0mm y:0.0mm z:3.0mm
- BLTouch + BIQU H2 V2 / all metal heat-break : x60mm y0.0mm z3.0mm
- CRTouch : x:62.0mm y:0.0mm z:3.0mm
Nozzle offset (you need to change this in your firmware in order to print correctly center with your machine's bed) : x:-12.5mm y:-6.5mm

Edit 1 - 20/10/2021

I'm currently testing and running the single fan version. So far, so good. I'll post more update, including a water test maybe, on my make.

Edit 2 - 24/10/2021

Another user successfully printed the double fan version and reported a very good airflow. Mission accomplished ! Thanks for the make @krmnl !

Edit 3 - Mk2 is here ! - 17/09/2022

Here's finally the mk2 revision of this mount ! Here's a summary of all changes :

flatter thus easier to print carriage mount
added a carriage mount variant for the Ender 3 V2
revised the BL Touch mount, with a sturdier design
revised fan mounts for a more stable and durable mount
tighten various mounting holes on all mk labelled pieces
smaller and shorter cable manager
added step files, to encourage and facilitate remixes

Edit 4 - CR Touch mount - 20/09/2022

added a CR Touch mount. As i currently don't have this probe, any feedback on this mount would be appreciated. Theoretically, the probe offset for this mount should be : x:62.0mm y:0.0mm z:3.0mm

Edit 5 - BL Touch mount updated

enlarged the BL Touch mount to allow more clearance for the BL Touch plugs. The new offset is now : x:57.0mm y:0.0mm z:3.0mm

Edit 6 - new probe mount added for BiQU H2 with an all metal heat-break

Added a BL Touch mount and a CR Touch mount variation that works with the 2mm shorter all metal heat-break on the BiQU H2 V2. In that way, probe offset remains the same.

Edit 7 - Fixed all metal heat-break BL Touch mount

The all metal heat-break mount for BL Touch was too close from the H2 motor's magnets, causing interferences in its reading. The mount has been revised with a 3mm additional clearance to solve this issue. As a result, the probe offset for this mount is now x:60.0mm y:0.0mm z:3.0mm

Edit 8 - Fixed the Ender 3 V2 carriage plate top mounting screw alignement - 17/10/2022

BOM

For this build, you'll need a couple of M3 and M2 screws and nuts :

9x Hex M3 4mm (5015 mount, extra cable support hose, ADXL345 mount, LED Light bar mount)
2x Hex M3 20mm (BIQU H2 Fan mount) and 2x Hex M3 20mm (Single 5015 fan) or 4x Hex M3 20mm (Dual 5015 fan)
2x Hex nut M3 (Single 5015 fan) or 4x Hex nut M3 (Dual 5015 fan)
3x Hex M3 8mm (carriage mount & Biqu H2 mount)
2x Hex M2 6mm (carriage fan support mount)
2x Hex M2 8mm (fan duct mount)
1x Hex M2 16mm & 1x Hex M2 12mm (BL Touch mount)

Printing tips

Support are only required for some small areas. You can probably print without any and get a functional print, but i'd advise to use paint-on-supports for best results.

All pieces are designed to be printed flat on their flattest side, including the ducts.

You can print with 0.4mm or 0.6mm toolhead, preferably in PETG, but PLA works fine as well.

Building instructions

1 - Try all screw holes before building. Some are designed to be tight in order to keep in place the screw.

2 - Build the carriage fan support on the carriage using two M2 6mm.

3 - Install the two M3 8mm screw that will hold the whole support on the ender's carriage (the one in the middle of the fan support, and the other one slighty above.

4 - Install the BIQU H2, without its fan, using the M3 8mm from the back of the support. Use the wide gap in the support to arrange and hide the heater cardrige and thermistor cable

5 - Install the mount on the ender's carriage and fasten the 2 M3 8mm from step 3. Use the gutter on the mount to organise the BIQU fan wire.

6 - Mount the LED strip using 2 M3 6mm screws

7 - Install the BIQU H2 fan using 2 M3 20mm screws

8 - Install the fan mount loosely using the 4 M3 6mm screws. Don't tight them much for now.

9 - Install the fan duct(s) using the two M2 8mm screws.

10 - Level your toolhead, and leave 3mm of clearance between the noozle and the duct(s). You can use a M4 Hex key to help you with that

11 - Install the fan(s) and secure it/them using 2 or 4 M3 20mm screws and nuts. I suggest to add a touch of glue on the nuts to keep them in place in the mount. For the double 5015 version, use the gutter on the mount to hide the left fan wire.

12 - Mount the BL Touch on it support using the M2.5 screws provided with the sensor

13 - Mount the BL Touch support using the M2 16mm and M2 12mm screws

14 - Mount the ADXL345 using 2 M3 6mm screws

15 - Mount the cable support on top using the last M3 6mm screw

Build is now complete ! Wire everything correctly on your board, double-check your wirings, reconfigure your extruder e-step and current voltage in your firmware, make some test print and you should be good to go !
