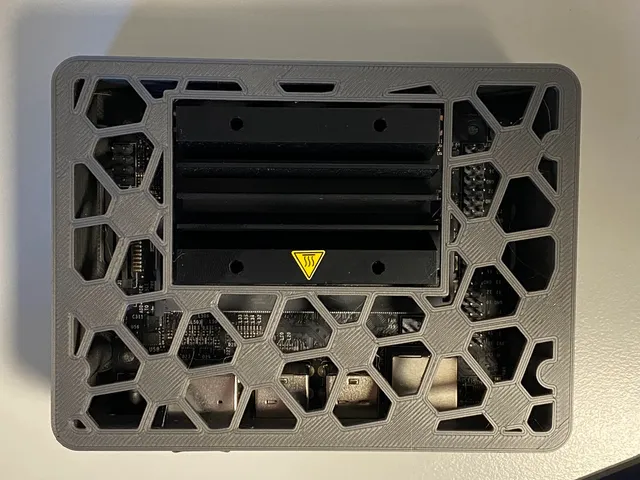

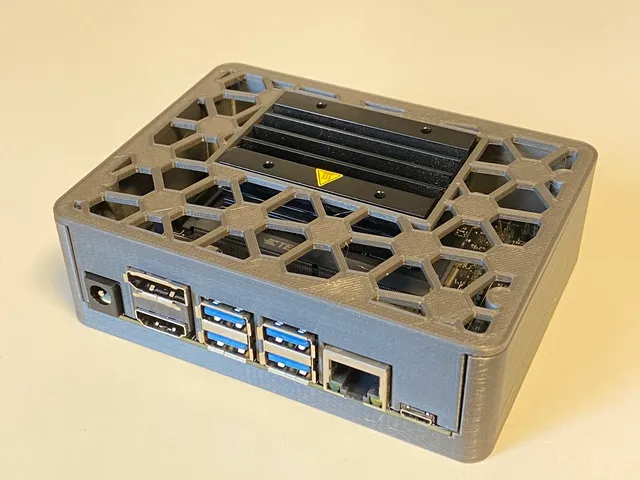

NanoMesh Mini is a compact case design for the Jetson Nano Developer Kit. This case be used entirely tool-less, although it can be secured with four case screws. The carrier board is held in place with stand-off pins. To secure the case together you can use 4 x m3 screws anywhere between 13-50mm long from the bottom of the case.

This case is designed to be printed entirely without supports with and no bridging.

The case can also support the optional external fan that mounts directly on the heat sink. The grill holes are just large enough to fit routing the 4-pin PWM cable.

Assembly
\n4 x m3 qty 4: m3 x 13-30mm (to attach case pieces)

The top may be held either with a friction fit, or it may be screwed in with 4 x m3 that are 13-30mm in length. The screw holes are countersunk and accessible from underneath the case.

Please share a photo if you decide to print one!
