Print

No supports needed.
Tested with PETG and PLA.

Material

One segment from snap-off blade 18 mm (example 1, example 2)

2 pieces of screw M3 x 25 mm
2 pieces of ball pen spring (probably 20 mm length, 4 mm diameter, M3 screw must fit inside)

Assembly Instructions

Check video instructions here.

Print both parts.
Take one piece of snap-off blade and put it into upper part. Use some pliers to avoid an injury. There is a small mark near blade pocket which shows you where the tip of the blade should be. Additionally you can use super glue to fix it in position.
Put both screws into the holes.
Put ball pen springs into the holes.
Place the upper part on the main body and press it fully.
Tighten the screws. Screw head should be about 1,5 mm inside head holes. If you will tight them too much it will destroy plate at the upper part.
Release upper part and check if blade is not visible inside the filament hole. If yes loose the screws little bit.
I recommend to put some lubricant inside to keep the mechanism running smoothly.

Acessories

Here you can find nice box from Wapameepto.

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-03-10T18:41:46.928014+00:00","firstPublish":"2021-05-23T19:32:52.432343+00:00","datePublished":"2023-03-10T18:41:46.911557+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Filament cutter with 45\u00b0 cutting angle. Spring mechanism for easy return.\nConstruction from commonly available parts.","likesCount":12398,"makesCount":823,"liked":null,"printDuration":"1.31","numPieces":2,"weight":"9.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"8","name":"PET","__typename":"MaterialTypeType"}],"dateFeatured":"2022-01-08T11:34:37.880673+00:00","downloadCount":21000,"displayCount":168370,"filesCount":6,"privateCollectionsCount":9196,"publicCollectionsCount":6707,"pdfFilePath":"media/prints/67509/pdfs/67509-filament-cutter-45deg-31b0f88c-8968-415c-9296-49146967b6b2.pdf","commentCount":994,"userGcodeCount":2,"remixCount":48,"canBeRated":false,"addMakePermission":null,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"388468","filePath":"media/prints/67509/images/740262_d5fbf494-e3d2-43d7-ab1e-fecc1c9e9a78/cutterpreviewwithmodel.jpg","rotation":0,"imageHash":"aRgSFYb3R3h4d3h6dXiIiAZteNCH","imageWidth":1424,"imageHeight":1068,"__typename":"PrintImageType"},"images":[{"id":"388468","filePath":"media/prints/67509/images/740262_d5fbf494-e3d2-43d7-ab1e-fecc1c9e9a78/cutterpreviewwithmodel.jpg","rotation":0,"imageHash":"aRgSFYb3R3h4d3h6dXiIiAZteNCH","imageWidth":1424,"imageHeight":1068,"__typename":"PrintImageType"},{"id":"388584","filePath":"media/prints/67509/images/740463_18a017fd-6e52-415f-836d-00007f03d87c/fcutterassembly.png","rotation":0,"imageHash":"2vaFDQA1iHdwjXS5p5dwhOj3CHeKdoV5WA==","imageWidth":724,"imageHeight":723,"__typename":"PrintImageType"},{"id":"388700","filePath":"media/prints/67509/images/740680_978e60bc-43ef-4d9f-9184-20e625d9b7d0/cutterfeecad.gif","rotation":0,"imageHash":"ZBgKFwSPZ3lYaZeGloeGS5iHOFn8g9UP","imageWidth":800,"imageHeight":800,"__typename":"PrintImageType"},{"id":"388585","filePath":"media/prints/67509/images/740464_a4659b15-5e0b-4d77-8fba-170e532e1b97/assemblyparts.png","rotation":0,"imageHash":"KPgFBwBfl7hka5Z8onqnd3mKCWzrZ8AL","imageWidth":654,"imageHeight":654,"__typename":"PrintImageType"},{"id":"388475","filePath":"media/prints/67509/images/740274_2056bdf2-d2f9-44a0-b7ca-a2623f3d288e/filamentcut.jpg","rotation":0,"imageHash":"LBgCDYS1a3avRZdolnuohwtRtxB1","imageWidth":1424,"imageHeight":1068,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"cutter","id":"593","__typename":"TagType"},{"name":"filamentcutter","id":"3278","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"1818328","filePreviewPath":"media/prints/67509/stls/3472125_2b8719dc-fb7c-48f9-8d80-9a8f0f59ac8c/filamentcutterbody_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"57687","handle":"Pomi","verified":false,"dateVerified":null,"publicUsername":"Pomi","avatarFilePath":"media/auth/avatars/68/68f5720e-4eaf-4404-a477-c174adb92032.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

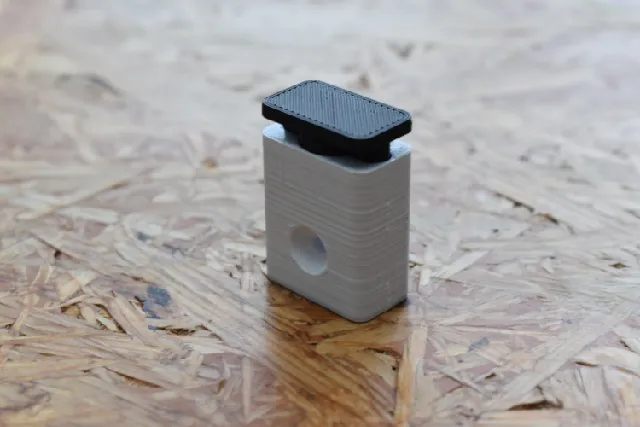

Filament Cutter 45°
