This model is an improvement to another design of mine.

Features

4-Way Latching Mechanism:

4-way selection knob to set 1) Both ways open, 2) Both ways closed 3) Exit only, and 4) Enter only.
Removable latch cover to easily clean out the latching mechanism.

Magnetic Door Return:

Magnets inside the frame/door to fully close the door and prevent gusts of wind from blowing the door open.

Water resistant

Designed to keep water out and channel water that enters the latch mechanism back outside.

Adaptable

A parametric Fusion 360 files allows you to easily customize the exact size and thickness
An insert may be printed to fit this door to \u00bc\" thick board. This same insert can be traced onto your wall for cutting the opening for the door.

A look Inside

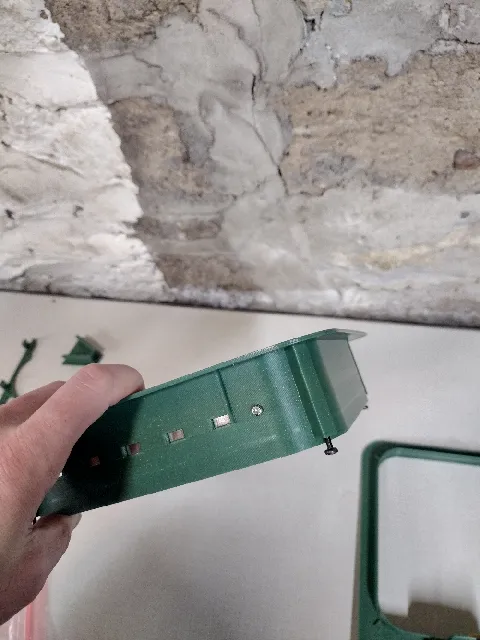

Magnets inside the door and frame return the door to the correct position

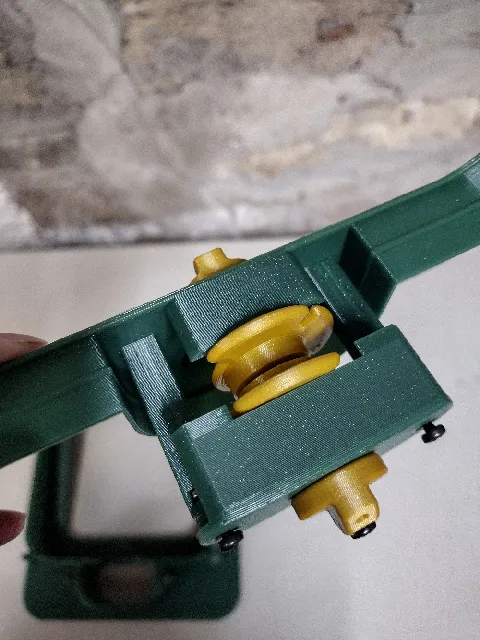

The latch mechanism is spring loaded to provide a nice click between each setting

Materials:

Printed Materials

1 x frameInner
1 x frameOuter
1 x dirtTrap
1 x acrylicDoorA
1 x acrylicDoorB
2 x latch
1 x key
2 x knob

Purchased Materials

14 x M3x14
8 x M3 square nut
40 x 4.8x9.5x2.8mm magnet
2 x Bic Ball Point Pen Spring
1 x 141x149x2.8mm acrylic sheet

","category":{"id":"57","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"57","name":"Pets","nameEn":"Pets","description":"Anything for your pets. Print toys for cats, dogs, and rabbits. Print a hamster house or wheel. Download feeder bowls or even aquarium tools.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-12-23T22:23:57.949572+00:00","firstPublish":"2023-12-04T04:15:36.144357+00:00","datePublished":"2023-12-23T22:23:57.927186+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Pet door that you can set to fully-open, fully-locked, in-only, or out-only. Magnets ensure the door always closes fully","likesCount":31,"makesCount":1,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":103,"displayCount":629,"filesCount":13,"privateCollectionsCount":14,"publicCollectionsCount":10,"pdfFilePath":"media/prints/665568/pdfs/665568-pet-door-with-4-way-latch-magnetic-door-return-v2-3f09f2e1-1fb2-40d2-beca-3f807b6c6dc6.pdf","commentCount":10,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2480377","filePath":"media/prints/665568/images/5264670_bfdbedf3-d59d-45f2-8da4-536827ba61e0_2a7f939d-f8cf-477e-b67b-2016e74ed44b/screenshot-2023-12-03-214329.png","rotation":0,"imageHash":"2/cNDgJKefhmeZh4h4d4hWl4j4T3WGg=","imageWidth":536,"imageHeight":587,"__typename":"PrintImageType"},"images":[{"id":"2480377","filePath":"media/prints/665568/images/5264670_bfdbedf3-d59d-45f2-8da4-536827ba61e0_2a7f939d-f8cf-477e-b67b-2016e74ed44b/screenshot-2023-12-03-214329.png","rotation":0,"imageHash":"2/cNDgJKefhmeZh4h4d4hWl4j4T3WGg=","imageWidth":536,"imageHeight":587,"__typename":"PrintImageType"},{"id":"2480350","filePath":"media/prints/665568/images/5264619_afe5ed96-d3af-4bb1-94e8-99ade841cd2c_4dac9db6-faef-4db5-a3b8-2ef67fe18013/b0db3eb5-09d5-4612-aef1-bedf5b0c7730.png","rotation":0,"imageHash":"JfgJBgD12Yp5hdh5SId4joN2Bocg/60=","imageWidth":3200,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2480349","filePath":"media/prints/665568/images/5264620_451452b1-5bcb-4eea-89b3-db390e290335_24eb14d6-b669-4026-83d8-6459fd5ef4e4/12226737-f791-49ad-86bd-20b0c0fe7783.png","rotation":0,"imageHash":"JPgJBgD26Jl5hdd4OId4foN2FoZwj9c=","imageWidth":3200,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"2468629","filePath":"media/prints/665568/images/5238942_241f30d6-0696-4283-aca6-d294fcf31cc2_cfa8038d-741e-47e6-83cb-aa29712c108f/screenshot-2023-11-30-231227.png","rotation":0,"imageHash":"OQgGBoD6ZHeqRJyWa0eI5jZ3BlhbcLQ=","imageWidth":1224,"imageHeight":1008,"__typename":"PrintImageType"}],"imagesCount":4,"tags":[{"name":"parametric","id":"28","__typename":"TagType"},{"name":"dog","id":"118","__typename":"TagType"},{"name":"pet","id":"139","__typename":"TagType"},{"name":"cat","id":"289","__typename":"TagType"},{"name":"door","id":"341","__typename":"TagType"},{"name":"kitty","id":"5153","__typename":"TagType"},{"name":"pets","id":"7214","__typename":"TagType"},{"name":"doggy","id":"11775","__typename":"TagType"},{"name":"parametricdesign","id":"41192","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2802427","filePreviewPath":"media/prints/665568/stls/5238932_d85aa3a5-5d98-4e41-b842-58b0a3d38421_42ab9a99-d6f5-4651-9d36-c28f36097b5b/frameouter_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"430137","modelId":"292923","modelName":"Pet Door with 4-Way Latch & Magnetic Door Return V1","modelAuthor":{"id":"206112","handle":"jabbanman","verified":false,"publicUsername":"jabbanman","__typename":"UserType"},"model":{"id":"292923","name":"Pet Door with 4-Way Latch & Magnetic Door Return V1","slug":"pet-door-with-4-way-latch-magnetic-door-return-v1","datePublished":"2023-12-04T04:20:51.349258+00:00","image":{"id":"1259770","filePath":"media/prints/292923/images/2572926_1f1a9099-6bb2-441a-874a-505350eff6a8/screenshot-2022-10-10-213445.png","rotation":0,"imageHash":"4ecJDITV9qp2aWeHeXn4a/V5iQ==","imageWidth":1666,"imageHeight":890,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"1","name":"Creative Commons \u2014 Attribution","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Removable cover to easily clean out the latch mechanism
An insert was designed to adapt the door to a \u00bc\" thick board. This same insert can be traced onto your wall for cutting the opening for the door.
Fusion 360 file is parametric allowing you to easily change the thickness of the door
