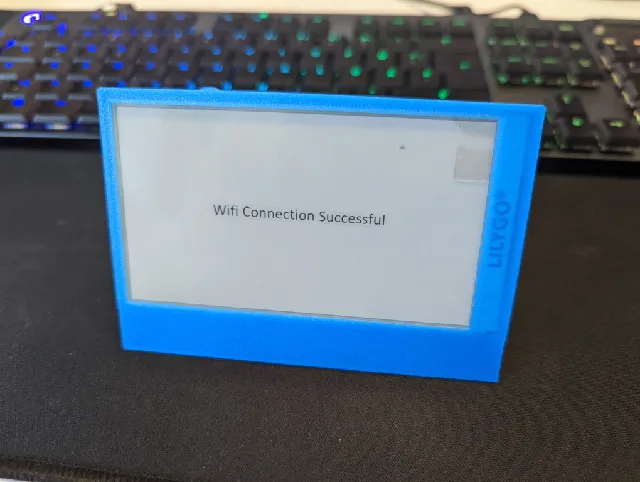

{"data":{"make":{"id":"305227","created":"2022-07-04T15:36:19.505351+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"14","name":"Prusa MK3S/+ & MMU2S/3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2266","handle":"zeroflow","verified":false,"dateVerified":null,"publicUsername":"zeroflow","avatarFilePath":"media/auth/avatars/07/0739996e-1fe4-4a81-abb2-2aed403409fb.jpg","badgesProfileLevel":{"profileLevel":19,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"203343","filePath":"media/comment_images/7b/fa5d8d-dd67-4ba6-b876-c0aa1328e7ce/pxl_20220704_153330547.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"+ Button works\n+ Good fit of the screen\n\n- Back is not easily printable\n- Glue needed\n- Too thin for standard filament\n- asymmetric front","rating":3,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"130235","ratingAvg":"3.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"130235","slug":"lilygo-t5-47-epaper-display-case","name":"Lilygo T5 4.7 epaper display case","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"3.0000000000","myRating":null,"ratingCount":1,"description":"\n\n\n

I needed a case for my e-ink weather display project using a Lilygo T5 4.7\" ESP32+Epaper and wasn't satisfied with the ones I found online so I made my own.

Main features:

single (reset) button integrated to the frame
optional back cover to protect from dust
easy to print and setup, only one part if you don't print the back cover
Source blender file available at https://github.com/fdev31/LilygoT5-weather-photo-display

Print Settings

Printer:

wanhao duplicator + E3DV6 + Rearm

Rafts: \n

Supports:

Resolution: \n

200

Infill:

Filament:

\n\n doesn't matter PLA \n

bronze

Notes:

You may need a think knife or a cutter to detach the button from the rest of the frame, allowing it to bend flawlessly.
\nThe back cover is a bit a pain to install \"right\", some rework could improve it.\n

Just make the upper part ideally flushed and then press on the sides to follow rounded shape and gently \"clip\" the back plate.
