A modification of the DMS Omega cup design to optimise it for printing on an FDM printer, as well as reinforcing the 3.5mm port opening and headband openings.

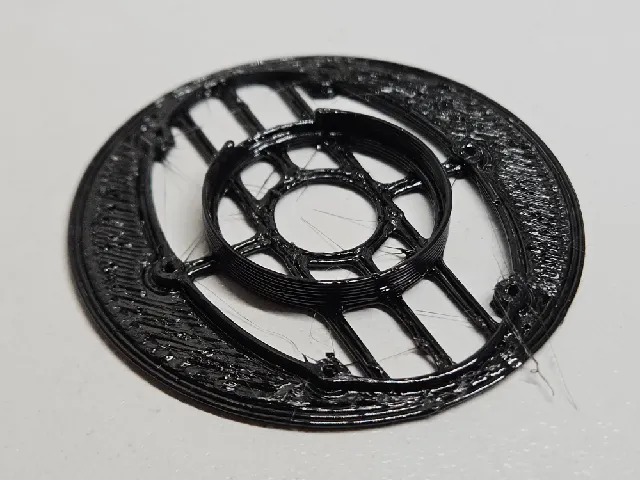

The design has been split into 4 parts, each part can be printed flat on the printer bed without the need for supports. This orientation allows for faster printing times, less filament usage, better surface finish and a stronger structure with lower print failure risk.

The three main parts of the cup can be screwed together using m3 countersunk screws, these will bite into the material directly or heat-press inserts can be used.
The brim (Part 4) was designed to be attached to the cup with the same adhesive as the steel mesh with a slight overlap of the brim and mesh.

The measurements provided compare against the stock model, bear in mind this is a custom measuring rig, so it isn't comparable to anything else other than results taken on itself. The results are pretty much identical for most of the frequency range with a small spike in the upper treble on the flat print model. The same pads were used, however the driver is different, so this could potentially be either down to the model or a driver variance.

Green = stock
Purple = flat print

","category":{"id":"25","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"25","name":"Audio","nameEn":"Audio","description":"Tune-up your home audio system and enjoy music at full blast. Headphone stands are just the start. Download free 3D prints for sound engineers or music lovers.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-11-18T15:17:44.166170+00:00","firstPublish":"2025-11-18T15:17:44.154330+00:00","datePublished":"2025-11-18T15:17:44.154330+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A modification of the DMS Omega cup design to optimise it for printing on an FDM printer, as well as reinforcing the 3.5","likesCount":14,"makesCount":3,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":54,"displayCount":324,"filesCount":4,"privateCollectionsCount":4,"publicCollectionsCount":2,"pdfFilePath":"media/prints/1485603/pdfs/1485603-dms-open-omega-flat-print-remix-b6d4a60f-a04f-4e17-80b5-b72b1d2cdfc0.pdf","commentCount":3,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"5106790","filePath":"media/prints/8aeb3253-68b8-40e0-ad94-6c677113d991/images/11195432_074f86d8-9e34-4a11-a8be-df1dbf559b6a_70af536f-b406-4d9c-9ad3-97a057127cbe/dscf3964.jpg","rotation":0,"imageHash":"4/cRDYL2iGiJd3eLh4V3iR+N8rNI","imageWidth":1200,"imageHeight":800,"__typename":"PrintImageType"},"images":[{"id":"5106790","filePath":"media/prints/8aeb3253-68b8-40e0-ad94-6c677113d991/images/11195432_074f86d8-9e34-4a11-a8be-df1dbf559b6a_70af536f-b406-4d9c-9ad3-97a057127cbe/dscf3964.jpg","rotation":0,"imageHash":"4/cRDYL2iGiJd3eLh4V3iR+N8rNI","imageWidth":1200,"imageHeight":800,"__typename":"PrintImageType"},{"id":"5106788","filePath":"media/prints/392b3d84-b601-4fb3-85e7-e5b0587e560c/images/11195433_6b1f9afe-ce7a-4f5e-8aae-c9f40b25ce0a_b837fad4-43c1-49dd-9f45-cd48963d5da1/dscf3968.jpg","rotation":0,"imageHash":"5wcGDYL0V1h5h3eMhoV4iiuPtfVn","imageWidth":1200,"imageHeight":800,"__typename":"PrintImageType"},{"id":"5106789","filePath":"media/prints/78496606-684d-4a4c-a989-eb98506ec534/images/11195434_19bb5bac-0ccf-41e6-8665-e5916f44c49e_f31c1bcc-71f7-4e54-b5a7-42fa4911ee05/dscf3963.jpg","rotation":0,"imageHash":"5fcNDYL3h1iId4iLhoV3ig6N88E4","imageWidth":1200,"imageHeight":800,"__typename":"PrintImageType"},{"id":"5106817","filePath":"media/prints/fff58ce1-1ae0-4aac-af0f-f941302be4bd/images/11195461_69b9958e-161a-46fe-8071-730adc4b68b4_909ed317-058a-4d6a-ba00-1776209211de/comparison.jpg","rotation":0,"imageHash":"xfcBA4Ca9vpjd3aYeZafhvc=","imageWidth":1552,"imageHeight":645,"__typename":"PrintImageType"}],"imagesCount":4,"tags":[{"name":"headphones","id":"2335","__typename":"TagType"},{"name":"omega","id":"4996","__typename":"TagType"},{"name":"dms","id":"143653","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"6251156","filePreviewPath":"media/prints/3e123cf8-baf7-48c1-b876-e8030c69b207/previews/f8196c1d-a11b-4833-8258-fa10e7cf4f88.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"582445","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://github.com/DMS3tv/Open-Omega","urlAuthor":null,"urlImage":"https://opengraph.githubassets.com/0a0947c82695b16241bdcf95724ebd071b683ef2473307074177138b9630d21f/DMS3tv/Open-Omega","urlTitle":"GitHub - DMS3tv/Open-Omega: The open source info and files for my project Omega headphones","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Split into multiple parts
Reinforced connection points
