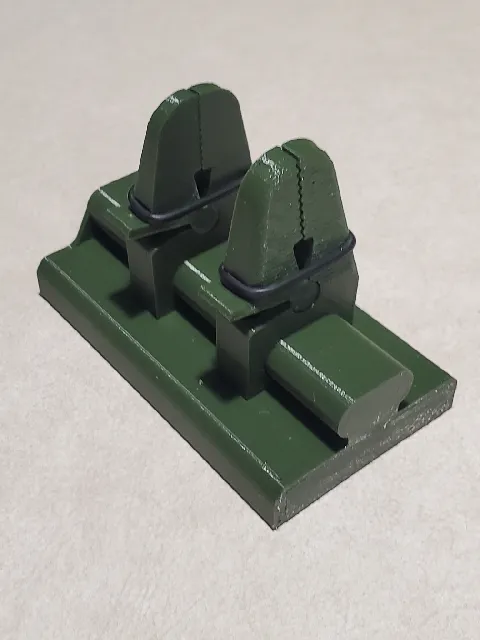

{"data":{"make":{"id":"3020096","created":"2025-12-01T21:44:54.479863+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"2","name":"Prusa MK2/S","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"296237","handle":"allardjd_296237","verified":false,"dateVerified":null,"publicUsername":"allardjd","avatarFilePath":"media/auth/avatars/93/93d3e2c9-ef05-479d-bf98-56d84c4cc357.jpg","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2870623","filePath":"media/comment_images/f3/3cfa0d-b760-4009-be22-20c5be05530f/20251201_163930.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Works great! I didn't have suitable springs and didn't want to use rubber bands but O-rings work fine.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"156930","ratingAvg":"4.8333333333","ratingCount":6,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"156930","slug":"soldering-aid-helping-hands","name":"Soldering Aid / Helping Hands","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8333333333","myRating":null,"ratingCount":6,"description":"\n\n\n

UPDATE: 17/10/2018

Added a longer base with provision to add weight in the form of either with a steel or brass bar 8mm x 50mm x 100mm or as I did, small lead shot of the kind used in scuba diving weights.

UPDATE: 13/10/2018

Modified to accept springs to auto close the jaws and extended the thumb lever for easier operation.

Also added a 100mm long base option if you want a bit more distance between jaws.

The springs I used are wire dia 0.7mm x spring dia 5mm x spring length 20mm

Got them off eBay so doing a search for 0.7mmx5mmx20mm compression springs should find you some.

My take on the soldering aid for wire and component holding.

I designed it so the gripper arms can slide along the base allowing for fine adjustment of parts prior to soldering. This also allows easy disassembly for storage.

Uses a couple of rubber bands located in the cutouts on the arms for grip tension. Plus these cutouts also provide a thumb leaver for easy opening of the jaws.

I'm currently looking to use small compression springs to close the jaws instead of the rubber bands.

Print Settings

Printer:

Anycubic i3 mega ultrabase

Rafts: \n

Supports:

Resolution: \n

0.2mm

Infill:

Whatever you like!

\n\nCategory: Electronics\n","category":{"id":"52","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"52","name":"Electronics","nameEn":"Electronics","description":"Keen on electronics devices and making your own gadgets? Use Raspberry Pi, Arduino, or GoPro and create new equipment using 3D print. Let's start!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-04-12T14:03:01.250641+00:00","firstPublish":"2022-03-30T15:12:45.139363+00:00","datePublished":"2022-03-30T15:12:45.139363+00:00","dateCreatedThingiverse":"2018-09-22T12:41:58+00:00","nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"UPDATE: 17/10/2018 Added a longer base with provision to add weight in the form of either with a steel or brass bar\u2026","likesCount":100,"makesCount":7,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":472,"displayCount":2166,"filesCount":8,"privateCollectionsCount":71,"publicCollectionsCount":87,"pdfFilePath":"media/prints/156930/pdfs/156930-soldering-aid-helping-hands-6a482967-d512-44b1-b860-83af1c23f175.pdf","commentCount":8,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"738729","filePath":"media/prints/156930/images/1467354_57094b2f-6add-43de-ad69-8ca266c39b18/5f9e4f109ff7c7fb5da25c0aaec9ae7d_display_large_15.jpg","rotation":0,"imageHash":"p8cJJIL2WXeId4eLdXcJdZTAGA==","imageWidth":1024,"imageHeight":576,"__typename":"PrintImageType"},"images":[{"id":"738729","filePath":"media/prints/156930/images/1467354_57094b2f-6add-43de-ad69-8ca266c39b18/5f9e4f109ff7c7fb5da25c0aaec9ae7d_display_large_15.jpg","rotation":0,"imageHash":"p8cJJIL2WXeId4eLdXcJdZTAGA==","imageWidth":1024,"imageHeight":576,"__typename":"PrintImageType"},{"id":"738730","filePath":"media/prints/156930/images/1467355_98c99dba-ff4f-4524-b4f6-297d1a0a857b/00b5fe5e9de544ad1149b07eaf7d4daa_display_large_15.jpg","rotation":0,"imageHash":"J+cJJYa6hoZ/hodthjeYhsx6v5z3","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738731","filePath":"media/prints/156930/images/1467356_28511883-3370-4cce-84a4-4e315e7043c8/e7eb3a618565bc571f08d2b712360a8a_display_large_15.jpg","rotation":0,"imageHash":"5dYNJYaomId/hod7eEaIh8p8r7z3","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738732","filePath":"media/prints/156930/images/1467357_c632142b-367b-4e35-b42f-766d1a79bd0c/07902ff3bed8c7237e389ee4c602866f_display_large_15.jpg","rotation":0,"imageHash":"Z+cNHYTHh3h/hneLdkeXd/l8n7/3","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738733","filePath":"media/prints/156930/images/1467358_e2c1895c-c142-4fd1-8d60-52eceab1bc40/ddeddb79d6e1649205c91d967d6a2340_display_large_15.jpg","rotation":0,"imageHash":"JtcNJYapiIZ/hod8d0eIhtxsv732","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738734","filePath":"media/prints/156930/images/1467359_45b65fc4-d092-4654-88eb-0cacd37a2d4a/f2d092f4e490d476feb288889a178040_display_large_15.jpg","rotation":0,"imageHash":"adcJLYj4RZqNd4h4hoh4efmImn+o","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738735","filePath":"media/prints/156930/images/1467360_764b54e6-a845-4755-bd74-684a396511f5/984ff02604685eb9d98545fb5882b8ce_display_large_15.jpg","rotation":0,"imageHash":"aucJLYb4NZqOd4h4hoh4efmImn+o","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738736","filePath":"media/prints/156930/images/1467361_46faa2e8-daea-4976-a24e-7ec0393c148f/2c549658078839acd09a737313ccb2ca_display_large_15.jpg","rotation":0,"imageHash":"aucJJYb5RJuOd4h4hoh4efmImn+4","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"738737","filePath":"media/prints/156930/images/1467362_4080cac1-2158-4c6a-9af1-89d2822012ed/927fb954a6ba977574affc2991a5a2a1_display_large_15.jpg","rotation":0,"imageHash":"q+cFHYSGiIifeHeOdzd2lqSaT6n5","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"}],"imagesCount":9,"tags":[{"name":"soldering","id":"2191","__typename":"TagType"},{"name":"helpinghands","id":"2192","__typename":"TagType"},{"name":"clamp","id":"2719","__typename":"TagType"},{"name":"solderingaid","id":"3279","__typename":"TagType"},{"name":"thingiverse","id":"6174","__typename":"TagType"},{"name":"cableholder","id":"6194","__typename":"TagType"},{"name":"helpinghand","id":"7682","__typename":"TagType"},{"name":"wireholder","id":"7684","__typename":"TagType"},{"name":"solderingtool","id":"13287","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:3114125","filesType":null,"previewFile":{"id":"643466","filePreviewPath":"media/prints/156930/stls/1467364_703bdf00-ba9a-4522-8bf1-8f6d2db4b4da/lh_fixed_arm_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"108068","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:3114125","urlAuthor":"AirwavesTed","urlImage":"https://cdn.thingiverse.com/renders/e0/34/a9/84/10/5f9e4f109ff7c7fb5da25c0aaec9ae7d_preview_featured.jpg","urlTitle":"Soldering Aid / Helping Hands","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"237705","handle":"AirwavesTed","verified":false,"dateVerified":null,"publicUsername":"Airwaves Ted","avatarFilePath":"media/auth/avatars/82/82da85b5-1a21-49fa-9ba8-e4110ec871a3.jpeg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
