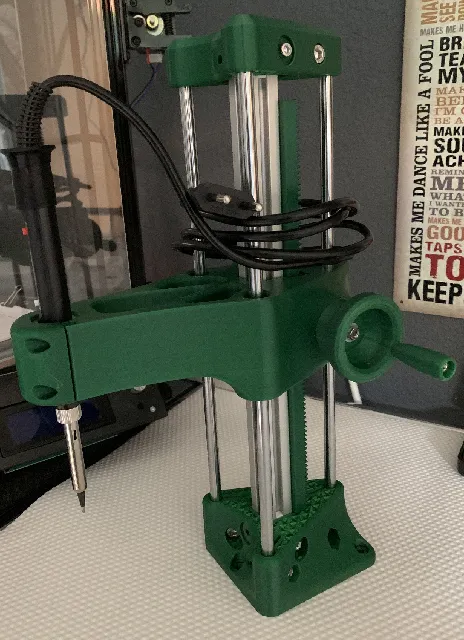

{"data":{"make":{"id":"302007","created":"2022-07-01T20:28:08.711425+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"14","name":"Prusa MK3S/+ & MMU2S/3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"213983","handle":"P_99_213983","verified":false,"dateVerified":null,"publicUsername":"P_99","avatarFilePath":"media/auth/avatars/f1/f1844ec2-df40-436e-89fb-a086bee891b8.jpg","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"200326","filePath":"media/comment_images/1e/ee67b7-19d1-45d8-936f-f754a748f93e/20220619_175053773_ios.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"nicely built, thx!","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"137817","slug":"threaded-insert-press-heat-set-insert-press","name":"Threaded insert press / heat set insert press","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.7500000000","myRating":null,"ratingCount":4,"description":"

Threaded insert press for heat setting threaded inserts. Press has a rack and pinion desing with three 12 or 8 mm rods and LM12LUU or LM8UU bearings, so you can precisely adjust height of insert and you get perfectly seated threads. The clamping diameter is 22mm, but you can easly make reduction bushing for any diameter of your solder.

0.4mm nozzle
0.3mm layer height
5 perimetr
6 top and bottom solid layers
35% infill
- You can print everything in PLA except carriage and clamp, because you need more heat resistance, soo for carriage and clamp I use PETG

For building instructions, you can use this amazing pdf. which created Nigel Med.

Threaded Insert Press by Nigel Med | Download free STL model | Printables.com
