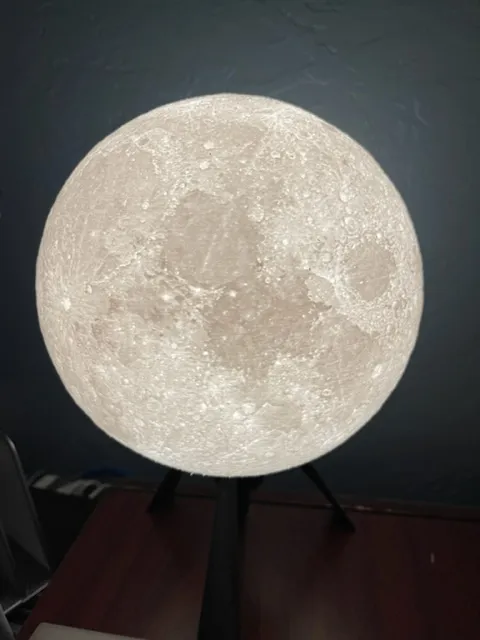

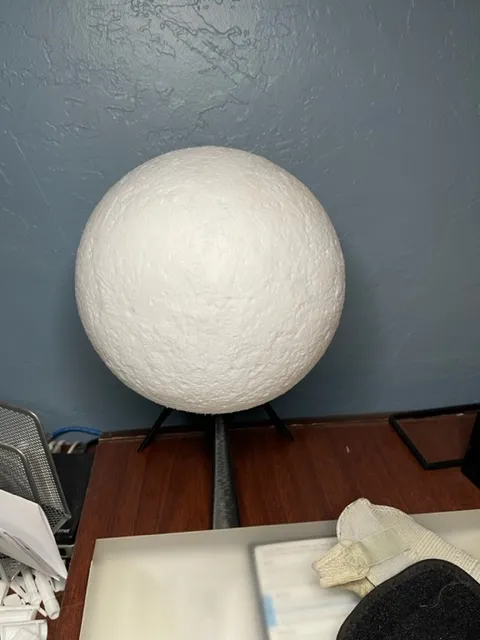

{"data":{"make":{"id":"299561","created":"2022-06-30T04:01:35.697224+00:00","edited":"2022-06-30T04:10:56.999589+00:00","deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"283192","handle":"MKNielsen10_283192","verified":false,"dateVerified":null,"publicUsername":"MKNielsen10","avatarFilePath":"media/auth/avatars/5f/5f046cb0-114d-4fa6-a41c-90bcfe47994b.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"198084","filePath":"media/comment_images/80/f80e5e-90fc-46e4-a3d9-4c60744808ca/img_6630.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"198085","filePath":"media/comment_images/2f/a2ca05-f365-4edd-b353-ef4426c2238f/img_6631.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"My first attempt at printing something so large. I did 2 of these since the first one looked horrible when lit. My bridging settings needed to be fine tuned. once I got that fixed I did it again with a great result.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"23859","ratingAvg":"4.9107312441","ratingCount":1053,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"23859","slug":"design-moon-lamp","name":"Design Moon Lamp","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9107312441","myRating":null,"ratingCount":1053,"description":"

This is a cool lamp. Maybe a gift. This is easy to print. This is an eye catcher. This takes about 2 days to print. This is a #3dp design.

\u201cSo many people enjoy this print. The idea that my lamp has thousands of sisters around the world is kinda nice. Thank you for sharing your makes.\u201d

This model will always be free.
If you like what you see, please consider tipping me to support my hobby.
paypal.me/FrankDeschner

Model

Globe: 20,5 cm diameter, max. Prusa envelope
Bayonet lock: works with all tolerances
Lightstand: 40/28 mm socket hole rocket legs
Ceiling adapter: moon hangs upside down \u2013 but really nobody can tell

Moon Globe

High-res Moon Globe, diameter approx.: 210 mm
Hole for light bulb, approx. diameter: 50 mm

Lightstand

Height: 85 mm
Socket hole diameter: 40 mm

Ceiling adapter

Height: 20 mm
Socket hole diameter: 28/40 mm

LED lighting

The lower the light, the better the globe looks.
A night-light-like looks very cool.

Check out the remixes and all the makes.
Thanks to the community!

My lamp kit:
E26/27 lamp socket, 12 ft braided cord, on/off switch - amazon lamp kits
Small LED globe light bulbs, warm/neutral white, 25 W - amazon 25 W bulbs

Print instructions

Moon

Infill: 100 % or 4-5 perimeters
Layer: 0,2 mm
Brim recommended
Supports: No! It really works.

PrusaSlicer Tipps:

check \u201cDynamic speed at overhangs\u201d
check \u201cEnsure vertical shell thickness\"
lower temperature through the top/bottom part

Stand

Infill: 30 % cubic
Shell: 3 perimeters for stability
Layer: 0,15 mm
Supports: no

Printer

Prusa MK3s

Filament

inland PLA+ white - Micro Center PLA+
Light Marble PLA
Prusa PLA silver - Prusament PLA

Print time

Moon: approx. 44 hrs
Stand: approx. 4 hrs

License

Digital files have a strict non-commercial, personal use only license.

You can print the model for yourself, friends and anyone who wants to have this lamp in small quantities. I don't mind if you charge them for your material and efforts. I also don't mind a tip in that case. Please don't try to sell the physical model commercially (etsy etc.).

Credit for the Moon Lithophane goes to u/moononournation:
8 in Progressive Detail Moon Lamp Thank you!

You shall not share, sub-license, sell, transfer, or distribute in any way the digital file of this object. You can not host this files on other digital platforms, web stores or cloud repositories.
